120/140LPW Industrial D2 LED Triproof Light 5 Years Warranty IP66 SMD2835 20-50W

120/140LPW Industrial D2 LED Triproof Light 5 Years Warranty IP66 SMD2835 20-50W

  • 120/140LPW Industrial D2 LED Triproof Light 5 Years Warranty IP66 SMD2835 20-50W
  • 120/140LPW Industrial D2 LED Triproof Light 5 Years Warranty IP66 SMD2835 20-50W
  • 120/140LPW Industrial D2 LED Triproof Light 5 Years Warranty IP66 SMD2835 20-50W
  • 120/140LPW Industrial D2 LED Triproof Light 5 Years Warranty IP66 SMD2835 20-50W
  • 120/140LPW Industrial D2 LED Triproof Light 5 Years Warranty IP66 SMD2835 20-50W
120/140LPW Industrial D2 LED Triproof Light 5 Years Warranty IP66 SMD2835 20-50W
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,TUV/GS,LM79,LM80
Model Number: DR-TPL050-BG51
Payment & Shipping Terms:
Minimum Order Quantity: 8pcs
Price: Negotiable
Packaging Details: Neutral Package,color box package,8PCS/CTN,L1570xW360xH200mm
Delivery Time: 5-15 business days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000PCS/Month
Contact Now
Detailed Product Description
Rated Power: 50W LEDs Typ/Qty: SMD2835 312pcs
Luminous Flux: 8,000±5% Power Factor: PF>0.9
Lumen Maintenance @ 6000 Hrs: >90% Switching Cycle Before Failure: 100,000
Warranty: 5 Years Power Supply: Boke
CCT/K: 5000K For Standard (3000K/4000K/5700K/6500K Optional) Rated Input Voltage/V: AC200~240V 50/60Hz (AC100~277V, 50/60Hz Optional)
IP Rating: IP65 IK Level: IK08
High Light:

fluorescent batten light

,

warm white led batten

120/140LPW Industrial D2 LED Triproof Light 5 Years Warranty IP66 SMD2835 20-50W

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot






LED Tri Proof Light--Detailed Product Description
Model No.: D2 Series Beam Angle: 120°
Power: 50W Protection: IP66,IK10
Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver Plug: European / Australia plug with 0.75mm2/1.5mm2/
2.5mm2 3-pins or 5-pins (dimming) cable
Warranty: 5 Years Sensor(Optional): Daylight Sensor/ Microwave Sensor



D2 Series LED Tri Proof Light--Features
> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;
> 1-10V dimming flicker-free driver;

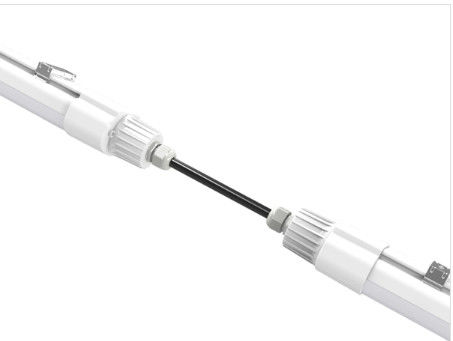

> Single or Double wiring;
> IP66 and IK10 for all industrial areas of application;
> Eco full plastic light design,save your cost and freight;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> Sensor control avaliable;
> No toxic heavy metals, VOC, or mercury were used in the design;
> 5 years warranty;

D2 Series LED Tri Proof Light--Options:
> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.
> Suspended/Surface mounted/Adjustable installation for option.
> Single or double wiring and connection.
> Customized supported for special projects.
> Sensor: Daylight Sensor/ Microwave Sensor.
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
* Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations


5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot



5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

Character/Length
2ft
4ft
5ft
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
A
600mm
1200mm
1500mm
B
74mm
74mm
74mm
C
74m
74mm
74mm


5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
(I) Emergency Function


Model No.
Emergency Time (Hours)
Emergency Power (W)
Battery Parameters
DR-TPL020-BG21
3/2/1 hours for option
10W
7.4V/4400/3000/1500mAh Lithium Battery
DR-TPL040-BG41
3/2/1 hours for option
10W
11.1V/6000/4000/2000mAh Lithium Battery
DR-TPL050-BG51
3/2/1 hours for option
10W
11.1V/8800/6000/3000mAh Lithium Battery



5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
DALI Device
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

DALI Intelligent Control Diagram
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot 5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot


DALI Intelligent Control Operator Interface
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot


5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot





IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station
