| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS(OEM/ODM/OBM Available) |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | D5 |
| Minimum Order Quantity: | 9PCS/1CTN |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | Western Union, T/T, L/C,Paypal |
| Supply Ability: | 50000PCS/Month |
| Rated Power: | 60W | System Efficiency: | 160LPW |
|---|---|---|---|
| CCT: | 3 CCT Optional (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K) | IP Rating: | IP65 |
| IK Rating: | IK10 | Various Intelligent Control: | 1-10V, DALI, Motion Sensor,Daylight Sensor,Zigbee And Emergency |
| Lifespan: | L80/B10 @ 62.000 Hrs | Lumen Maintenance At E.o.l.: | >70% |
| Highlight: | explosion proof led lights,dust proof light fixture |
||
| Length/mm Size A / mm Size B / mm Size C / mm Size D / mm |
| 600 2ft/605 630 84 69 |
| 1200 4ft/1205 1230 84 69 |
| 1500 5ft/1505 1530 84 69 |
| General System |
| Housing Material: Extruted PC according to the UNE-EN ISO 21305-1:2020 standard, UV filter conditional(IK10) |
| Diffuser Material: Extruted PC according to the UNE-EN ISO 21305-1:2020 standard, UV filter conditional(IK10) |
| Housing Color: White (RAL9016), Other colors optional |
| Sealing Gaskets: Silicone foam |
| LEDs Thermal Dissipation: Through finless 6063 AL luminaire body, without conductive fluids. Passive convection dissipation ensuring thermal contact with the LED modules through a high-conductivity Lead-free solder paste |
| Anti-condensation: Pressure-balancing valve to ensure moisture release, avoid condensation and maintain the luminaire IP tightness |
| Finish: Electrostatically sprayed and sublimated in the oven. Resistant to corrosion |
| Recommended Mounted Height: 2 - 8 meters |
| Maintenance: Quick snap end-cap for easy installation |

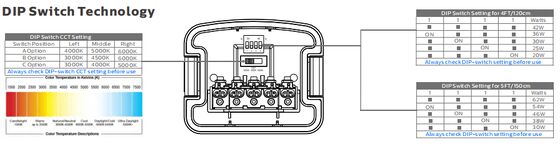

| Driver: Constant current with optional power adjustable via DIP switch, embedded in luminaire, pre-wired |
| Dimming Control: ON-OFF | 1-10V dimming | DALI-2 | Mesh | Zigbee | Casambi |
| IP (Ingress Protection Rating): IP65 |
| IK (Impact Resistance): IK10 |
| Protective Class: Class Ⅰ |
| Glow Wire: 850°C (Under 30s) |

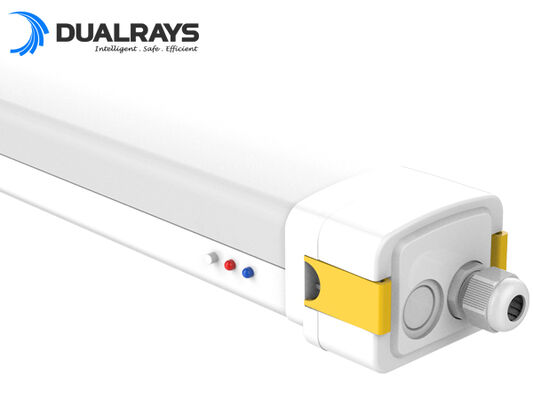

| Cable Gland: M20 cable gland (Nylon) |

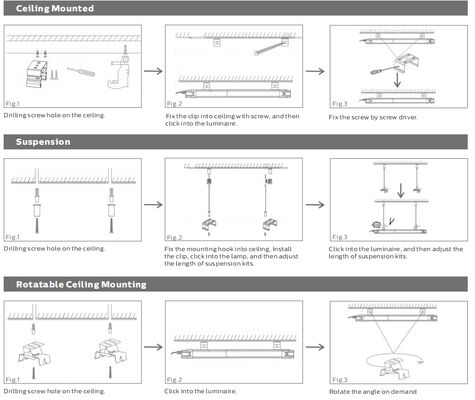

| Installation: Ceiling mounted | Suspension | Rotatable Wall Mounted |

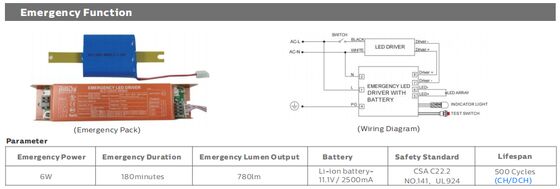

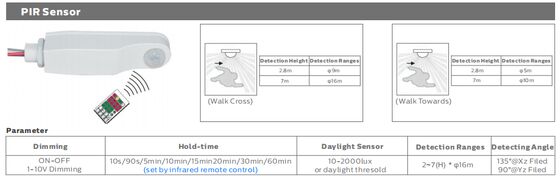

| Smart Function: PIR Sensor | Microwave Sensor | Emergency |
| Electrical System |

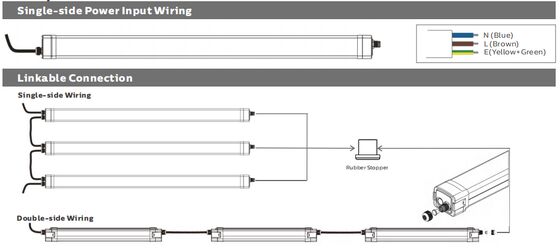

| Through-wiring: 3*1.5mm2 | 5*1.5mm2 | 3*2.5mm2 | 5*2.5mm2 wires through for option |
| Main Voltage: 220~240VAC/ 50/60Hz, 180-264VDC |
| Power Factor (PF): ≥0.96 |
| Total Harmonic Distortion (THD): ＜10% |
| Output Type: Non-SELV(non-isolated) |
| Flicker Factor: ＜1% |
| Stroboscopic Visibility Measure (SVM): ＜0.4 |
| Perceptibility of Stroboscopic Effects (Pst): ＜1 |

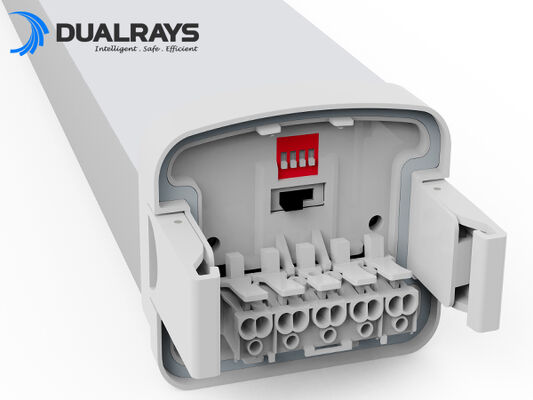

| Terminal Connection: Quick snap end-cap for easy installation, sliding gear tray for easy replacement and maintenance optional |
| Luminaires Power B10A B16A C10A C16A |
| 20W 70 110 98 158 |
| 30W 46 74 66 104 |
| Module via LSS Circuit Breakers 40W 35 55 49 78 |
| 50W 28 44 39 62 |
| 60W 23 37 34 52 |
| Photometry System |
| LEDs: SMD2835 (1W) |
|
CCT (Correlated Color Temperature): Single CCT (3000K | 4000K | 5000K | 5700K |6500K) 3 CCT optional (3000-4000-5000K | 3000-4500-6000K | 4000-5000-6000K for choice) |
| CRI (Color Rendering Index): >80Ra for standard (>90Ra for higher CRI available) |
| Photobiological Safety: RG0 (exempt of risk) |
| EEC (Energy Effciency Class): A++ |
| SDCM (Standard Deviation of Color Matching): ＜5 (SDCM<3 Optional) |
|
UGR (4H, 8H) : 24.9 (Cross) 23.4 (Longitudinal) |
| Beam Angle: 120° |
| Average Luminaire Useful Lifetime: 62.000 hours (L80B10) |
| Lumen Maintenance at e.o.l. >70% |
| Luminous Efficacy: 130LPW (PROLine) | 160LPW (PRIMELine) Optional |
| Length 2FT/600mm 4FT/1200mm 5FT/1500mm |
| Rated Power: 20W 30W 30W 40W 42W DIP(20~42W) 40W 60W 62W DIP(30~62W) |
| (PRO) 2.600lm 3.900lm 3.900lm 5.200lm Max. 5.460lm 5.200lm 7.800lm Max. 8.060lm |
| Lumens Delivered @ 5000K, CRl>80 (PRIME) 3.200lm 4.800lm 4.800lm 6.400lm Max. 6.720lm 6.400lm 9.600lm Max. 9.920lm |
| Operation Condition |
| Operation Temperature / Humidity: - 20~ +60℃ (-4°F ~ 140°F) / 5~85% RH, not condensed |
| Storage Temperature / Humidity: -40~ +80℃ (-40°F ~ 176°F) / 5~85% RH, not condensed |
| Average LED Useful Time L90B10: ≥0.96 |
| Rated Nominal Lifetime (Tp <70℃): Up to 100,000H |
| Driver MTBF: 500.000H,MIL-HDBK-217F(25℃) |
| Vibration Resistant: 10~500Hz,5G 12min / 1cycle,period for 72min. Each along X,Y,Z axes |
| Acoustic Noise: ＜25dB (30cm disstance, Normal operation) |
| Guarantee: 5 Years (Extensible up to 7 years) |
| Certifications |
| Global Certificate: ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium |
| Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471 |
| EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384 |
| Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11 |
| Length/mm Inner Box Outer Carton QTY”/CTN Unit N.W G.W/Carton |
| 2ft/600 670x90x80mm 685x285x265mm 9PCS 1.6Kg 16.9Kg |
| 4ft/1200 1270x90x80mm 1285x285x265mm 9PCS 2.4Kg 23.9Kg |
| 5ft/1500 1570x90x80mm 1585x285x265mm 9PCS 3.4Kg 33.6Kg |
* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;
* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;
* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.
Shipment:
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q1: What is the warranty for the TB7 LED Tubular light?
Thank you for your using DUALRAYS LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
