Name: LED Tri Proof Light With 40W explosion proof led lamp For Workshop
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: D5
Availability: InStock

Home Products LED Moisture-proof Lamp

LED Tri Proof Light With 40W explosion proof led lamp For Workshop

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM/ODM/OBM Available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	D5

Payment & Shipping Terms:

Minimum Order Quantity:	9PCS/1CTN
Price:	Negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	Western Union, T/T, L/C,Paypal
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	60W	System Efficiency:	160LPW
CCT:	3 CCT Optional (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K)	IP Rating:	IP65
IK Rating:	IK10	Various Intelligent Control:	1-10V, DALI, Motion Sensor,Daylight Sensor,Zigbee And Emergency
Lifespan:	L80/B10 @ 62.000 Hrs	Lumen Maintenance At E.o.l.:	>70%
Highlight:	explosion proof led lights , dust proof light fixture

LED Tri Proof Light With 40W For Workshop

LED Tri Proof Light Quick details:

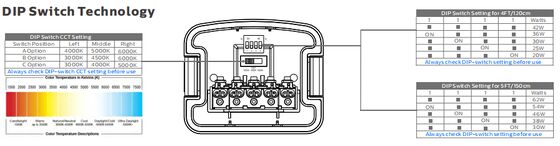

LED Tri Proof Light With 40W explosion proof led lamp For Workshop 0

Efficiency:
STANDARDLine:

PROLine: 120LPW

PRIMELine: 160LPW
Features:

* EPISTAR/SAN‘AN High Brightness SMD2835 LEDs,DUALRAYS Flicker-free Driver;

* IP66,IK10 Protection;

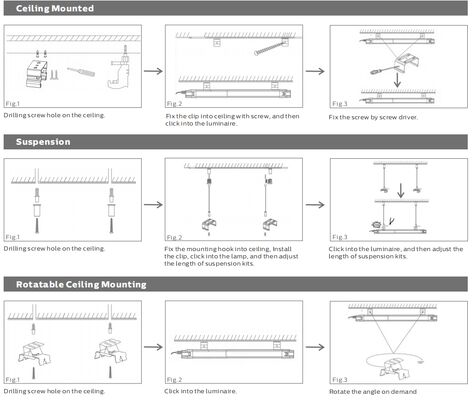

* Multiple Installations Optional (Suspension, Ceilign Mounted and Adjustable Surface Mount);;

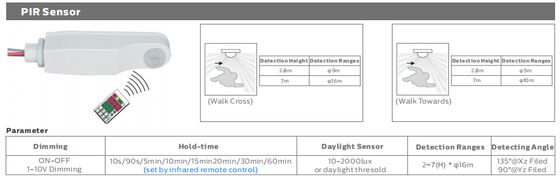

* Various Intelligent Control: 1-10V, DALI, Microwave Sensor, Daylight Sensor, Zigbee and Emergency,CCT Adjustable available;
* Full Plastic Material,Eco and Environment Friendly;

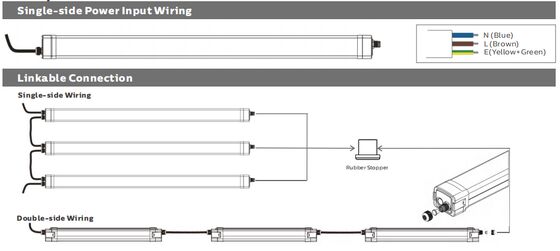

* Singe or Double wiring,Multiple Link with Double Wiring;
*120°Beam Angle;
* Customized supported for special projects;

* Replacement for fluorescent NCF

* Garage and car parks

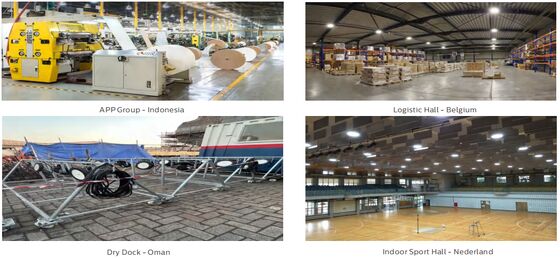

* Outdoor & Indoor Locations

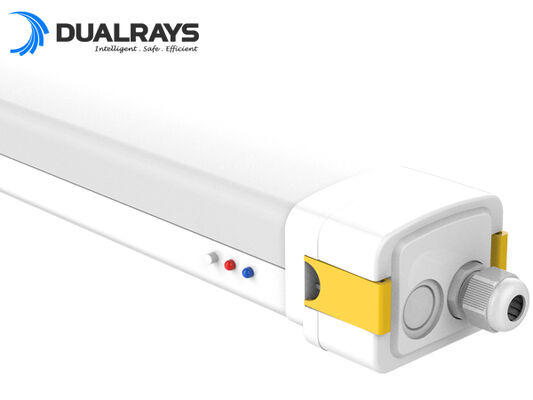

LED Tri Proof Light With 40W explosion proof led lamp For Workshop 2

Model No.	DR-TR040-EG5XP
Rated Power/W	40W
Flux/LM	6400±5%
Systen Efficiency/LPW	160LPW
IP/Rating	IP65
IK Grade	IK10
SDCM	<5
Lumen Maintenance at 50000hrs	>80%

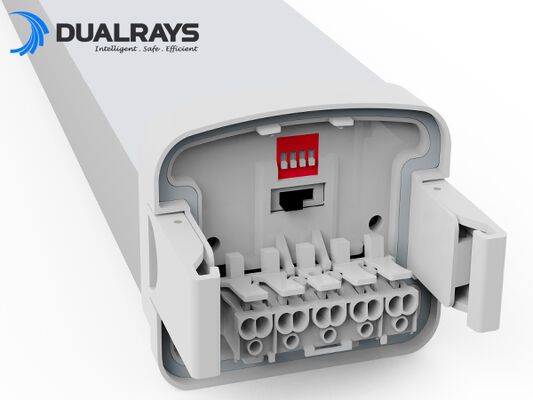

LED Tri Proof Light With 40W explosion proof led lamp For Workshop 3

Character/Length	2ft	3ft	4ft	5ft
A	600mm	900mm	1200mm	1500mm
B	90mm	90mm	90mm	90mm
C	74mm	74mm	74mm	74mm

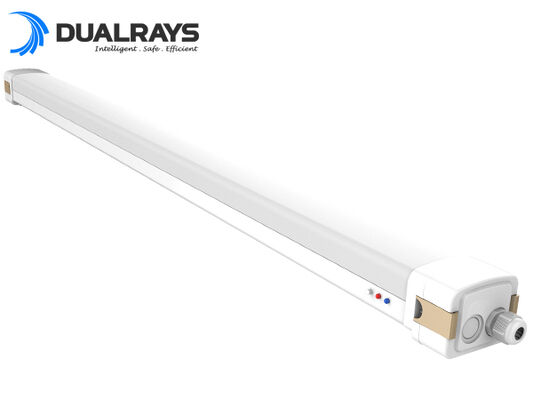

LED Tri Proof Light With 40W explosion proof led lamp For Workshop 5

LED Tri Proof Light With 40W explosion proof led lamp For Workshop 6

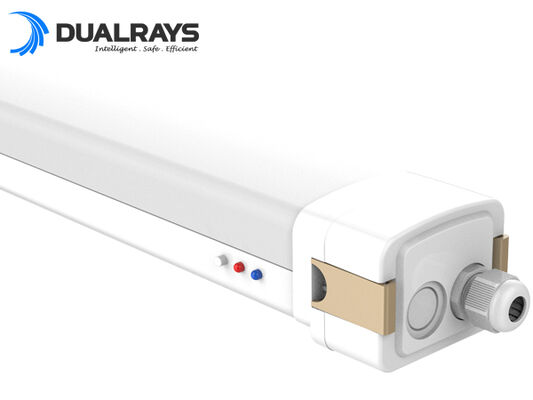

LED Tri Proof Light With 40W explosion proof led lamp For Workshop 7

Size	Power	Outer Carton Size(MM)	G.W(KG)	Qty"/CTN
2ft	20W/30W	655200270	11.3	6PCS
3ft	30W/40W	955200270	16.8	6PCS
4ft	40W/50W/60W	1255200230	15.4	4PCS
5ft	50W/60W/80W	1555200230	17.6	4PCS

LED Tri Proof Light With 40W explosion proof led lamp For Workshop 9
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

1.What’s LGP(PMMA)?

RE: A key component to maximize the uniformity of light, to make the backlight slim and to reorient the line or dot light source such as LED to the plate light source.

2.What’s Lumen?

RE: The international (SI) unit of luminous flux or quantity of light and equals the amount of light that is spread over a square foot of surface by one candle power when all parts of the surface are exactly one foot from the light source.

3.What’s Power factor ?

RE: The active power divided by the apparent power (i.e product of the rms input voltage and rms input current of a driver.)

4.What’s Smart Lighting ?

RE: Automated lighting control using sensors and /or scheduling switches.

5.What’s Watt ?

RE: The unit of electrical power as used by an electrical device during its operation. Many lamps come with rating in watts to indicate their power consumption.
