Dualrays LED Tri Proof Light CCT Adjustable ip65 led light For Garage Car Parks

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM/ODM/OBM Available)
Certification:	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
Model Number:	D5

Payment & Shipping Terms:

Minimum Order Quantity:	9PCS/1CTN
Price:	Negotiable
Packaging Details:	Netural Package/OEM/ODM/OBM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	Western Union, T/T, L/C,Paypal
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

System Efficiency/LPW:	160LPW	Global Certificate:	ENEC \| CE \| RoHS \| D-mark \| KEMA-KEUR Listed, SAA \| C-Tick \| RCM \| CB \| ETL/CETL \| DLC Premium
Lumen Maintenance At E.o.l.:	>70%	Cable Gland:	M20 Cable Gland (Nylon Or SS304/316 Cable Gland Optional)
Guarantee:	5 Years(Extenstion To 7 Years)	SDCM:	<6 As Standard(<3 Optional)
Main Voltage:	220~240VAC/ 50/60Hz, 180-264VDC	CCT:	3 CCT Optional (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K)
Highlight:	explosion proof led lights , vapor proof led light

Dualrays LED Tri Proof Light Support CCT Adjustable Available For Garage And Car Parks

LED Tri Proof Light Production description :

Model No.	DR-TRX-EG4XX	IK Rating:	IK10
LED Driver:	Boke Flicker Free	UGR:	<22
Warranty:(years)	5 Years	Beam Angle:	120°
THD	＜10%	System Watts	40W

Dualrays LED Tri Proof Light CCT Adjustable ip65 led light For Garage Car Parks 0

Production Details:

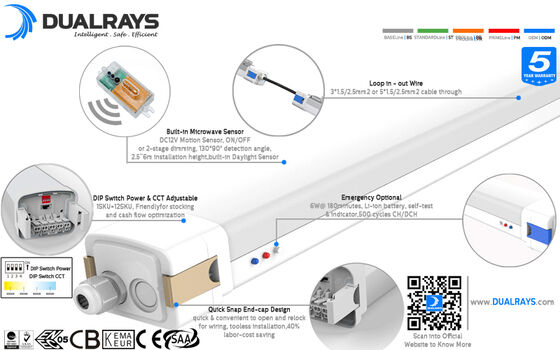

> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;

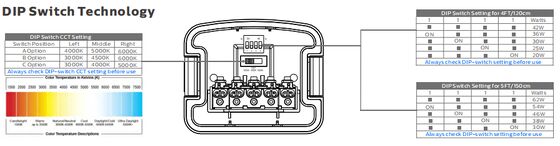

> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;

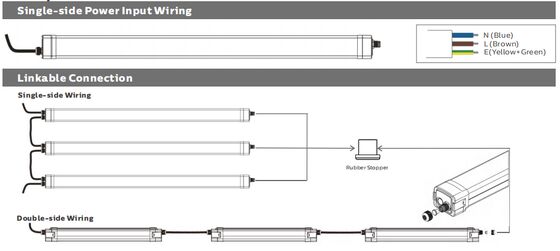

> Single or Double wiring;

> IP65/IP66 and IK10 for all industrial areas of application;

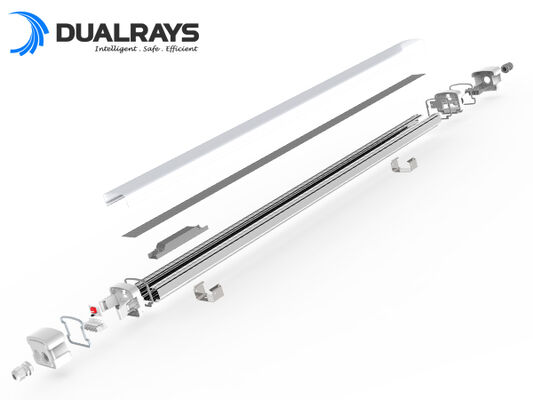

> Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;;

> Multiple Link with double wiring;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Options:

> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.

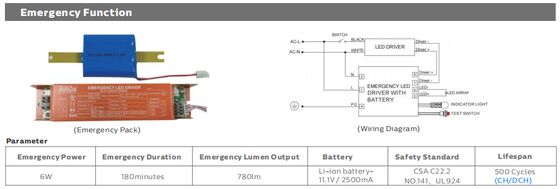

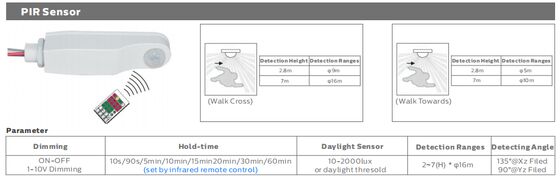

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.

> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

> Installation: Suspension, Ceilign Mounted and adjustable surface mount.
> Single or double wiring and connection.

> Customized supported for special projects.

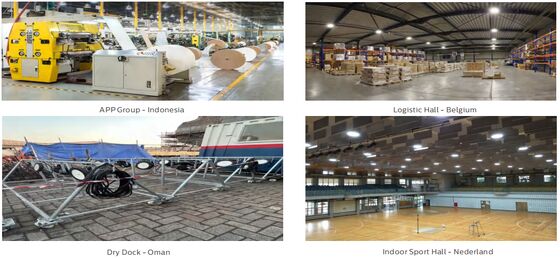

* Replacement for fluorescent NCF

* Workshops and warehouse

* Garage and car parks

* Sport facility

* Corridor/Gallery/Corridor

* Outdoor & Indoor Locations

Dualrays LED Tri Proof Light CCT Adjustable ip65 led light For Garage Car Parks 2

Character/Length	2ft	3ft	4ft	5ft
A	600mm	900mm	1200mm	1500mm
B	90mm	90mm	90mm	90mm
C	74mm	74mm	74mm	74mm

Dualrays LED Tri Proof Light CCT Adjustable ip65 led light For Garage Car Parks 4

Dualrays LED Tri Proof Light CCT Adjustable ip65 led light For Garage Car Parks 5

Dualrays LED Tri Proof Light CCT Adjustable ip65 led light For Garage Car Parks 6

Dualrays LED Tri Proof Light CCT Adjustable ip65 led light For Garage Car Parks 7

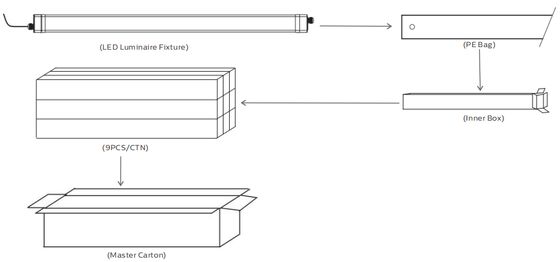

Size	Power	Outer Carton Size(MM)	G.W(KG)	Qty"/CTN
2ft	20W/30W	655200270	11.3	6PCS
3ft	30W/40W	955200270	16.8	6PCS
4ft	40W/50W/60W	1255200230	15.4	4PCS
5ft	50W/60W/80W	1555200230	17.6	4PCS

Dualrays LED Tri Proof Light CCT Adjustable ip65 led light For Garage Car Parks 9
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Dualrays LED Tri Proof Light CCT Adjustable ip65 led light For Garage Car Parks 10

1.What’s the meaning of “Beam Angle “?

RE: The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.

2.How do we explain “CRI” ?

RE: A measure of the degree of colour shift objects undergo when illuminated by the light source as compared with those same objects when illuminated by a reference source of comparable colour temperature. The reference source has a CRI of 100.

3.What’s CCT(colour temperature) ?

RE: The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.

4.Do you know “dali “?

RE: Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.

5.What’s the fire rating categories ?

RE: VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.

HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.

TP(b)-Slow burning rate <50mm / min for thickness <3mm.

TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is remove

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
