Name: LED Tri Proof Light No UV Or IR And Completely Mercury Free Tri Proof Light
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: D5
Availability: InStock

Home Products LED Moisture-proof Lamp

LED Tri Proof Light No UV Or IR And Completely Mercury Free Tri Proof Light

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM/ODM/OBM Available)
Certification:	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
Model Number:	D5

Payment & Shipping Terms:

Minimum Order Quantity:	9PCS/1CTN
Price:	Negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

System Efficiency:	160LPW	Various Intelligent Control:	1-10V, DALI, Motion Sensor,Daylight Sensor,Zigbee And Emergency
Main Voltage:	220~240VAC/ 50/60Hz, 180-264VDC	Driver:	PHILIPS / TRIDONIC /BOKE Non-SELV Driver
Beam Angle:	120°	Metarial:	AL+ PC
Average Luminaire Useful Lifetime:	62.000 Hours (L80B10)	Protective Class:	Class Ⅰ
Installation:	Ceiling Mounted \| Suspension Rotatable \| Wall Mounted
Highlight:	explosion proof led lights , dust proof light fixture

No UV Or IR And Completely Mercury Free LED Tri Proof Light With Buckle Design End Cap For Workshops And Warehouse

LED Tri Proof Light Production Details:

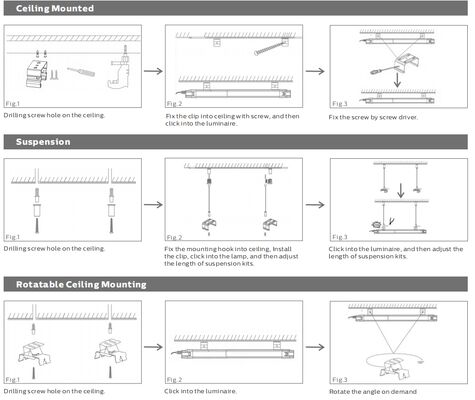

* Multiple Installations Optional (Suspension, Ceilign Mounted and Adjustable Surface Mount);;

* Various Intelligent Control: 1-10V, DALI, Microwave Sensor, Daylight Sensor, Zigbee and Emergency,CCT Adjustable available;

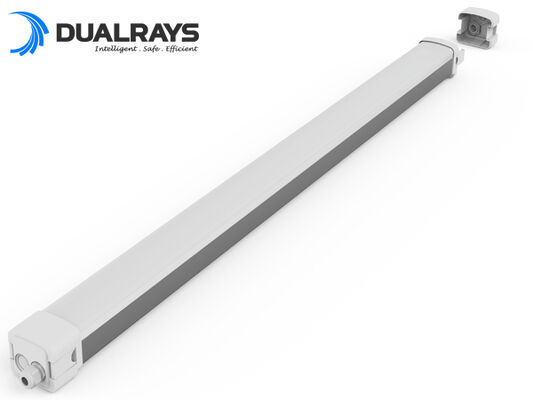

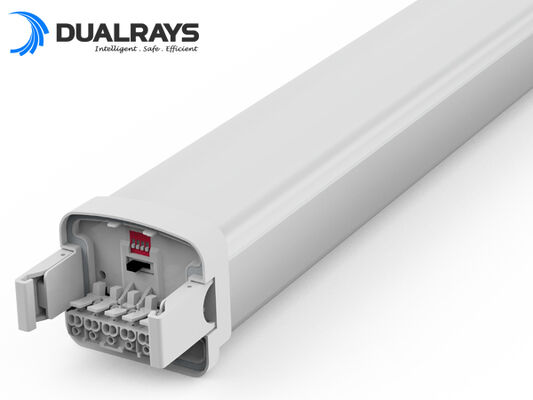

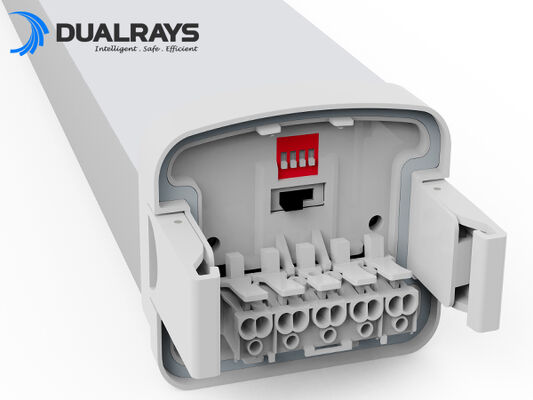

* Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;
* Singe or Double wiring,Multiple Link with Double Wiring;
* 120°Beam Angle;
* Customized supported for special projects;

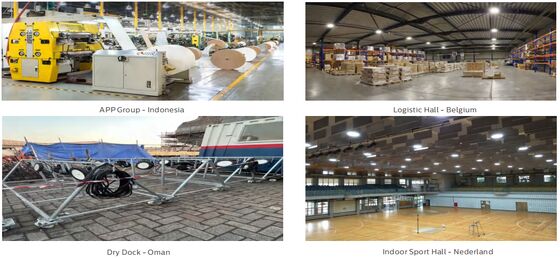

* Replacement for fluorescent NCF

* Workshops and warehouse

* Garage and car parks

* Sport facility

* Corridor/Gallery/Corridor

* Outdoor & Indoor Locations

Model No.	DR-TRX-EG3XX
Rated Power/W	30W
THD	<10%
Systen Efficiency/LPW	160
IP/Rating	IP65
IK Grade	10
Certification	CE(EMC+LVD)
UGR	<22

LED Tri Proof Light No UV Or IR And Completely Mercury Free Tri Proof Light 2

* Sport facility

* Replacement for fluorescent NCF

* Warehouse

* Exhibition center

LED Tri Proof Light No UV Or IR And Completely Mercury Free Tri Proof Light 3

Character/Length	2ft	3ft	4ft	5ft
A	600mm	900mm	1200mm	1500mm
B	90mm	90mm	90mm	90mm
C	74mm	74mm	74mm	74mm

LED Tri Proof Light No UV Or IR And Completely Mercury Free Tri Proof Light 5

LED Tri Proof Light No UV Or IR And Completely Mercury Free Tri Proof Light 6

LED Tri Proof Light No UV Or IR And Completely Mercury Free Tri Proof Light 7

LED Tri Proof Light No UV Or IR And Completely Mercury Free Tri Proof Light 8

Size	Power	Outer Carton Size(MM)	G.W(KG)	Qty"/CTN
2ft	20W/30W	655200270	11.3	6PCS
3ft	30W/40W	955200270	16.8	6PCS
4ft	40W/50W/60W	1255200230	15.4	4PCS
5ft	50W/60W/80W	1555200230	17.6	4PCS

LED Tri Proof Light No UV Or IR And Completely Mercury Free Tri Proof Light 10
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
