Name: Dualrays Heat Dissipation LED Tri Proof Light Industrial 48 Inch Led Tube Light 80W
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: D5
Availability: InStock

Home Products LED Moisture-proof Lamp

Dualrays Heat Dissipation LED Tri Proof Light Industrial 48 Inch Led Tube Light 80W

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM/ODM/OBM Available)
Certification:	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
Model Number:	D5

Payment & Shipping Terms:

Minimum Order Quantity:	9PCS/1CTN
Price:	Negotiable
Packaging Details:	Netural Package/OEM/ODM/OBM Package Available
Delivery Time:	5-15 Working Days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

IP Rating:	IP65	Power Supply:	PHILIPS / TRIDONIC /BOKE Non-SELV Driver
Main Voltage:	220~240VAC/ 50/60Hz, 180-264VDC	CRI:	>80Ra As Standard(>90Ra Optional)
CCT:	3 CCT Optional (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K)	Guarantee:	5 Years(Extenstion To 7 Years)
Installation:	Ceiling Mounted \| Suspension Rotatable \| Wall Mounted	Beam Angle:	120 Degrees
Highlight:	explosion proof led lights , dust proof light fixture

Dualrays Heat Dissipation LED Tri Proof Light Industrial 80W With 5 Years Warranty

Why choosing DUALRAYS:

* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

LED Tri Proof Lamp Quick Description:

Sensor(Optional):	Daylight sensor/Microwave Sensor	IP Rating:	IP65
LED Driver:	BOKE Flicker-free Driver/Dualrays	Material:	AL+PC
Dimming(Optional):	0/1-10V/DALI/Zigbee	Beam Angle:	120°
SDCM:	＜6	Power Wattage	80W

Dualrays Heat Dissipation LED Tri Proof Light Industrial 48 Inch Led Tube Light 80W 0

Dualrays Heat Dissipation LED Tri Proof Light Industrial 48 Inch Led Tube Light 80W 1

Product Material:

Efficiency:
STANDARDLine:

PROLine: 120LPW

PRIMELine: 160LPW

Features:

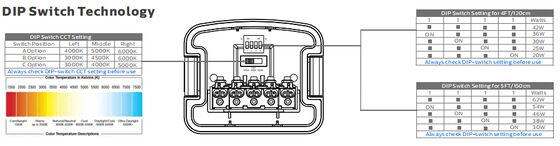

* EPISTAR/SAN‘AN High Brightness SMD2835 LEDs,DUALRAYS Flicker-free Driver,DIP Switch Power Adjustment available;;

* IP65/IP66,IK08 Protection;

* Multiple Installations Optional (Suspension, Ceilign Mounted and Adjustable Surface Mount);;

* Various Intelligent Control: 1-10V, DALI, Microwave Sensor, Daylight Sensor, Zigbee and Emergency,CCT Adjustable available;

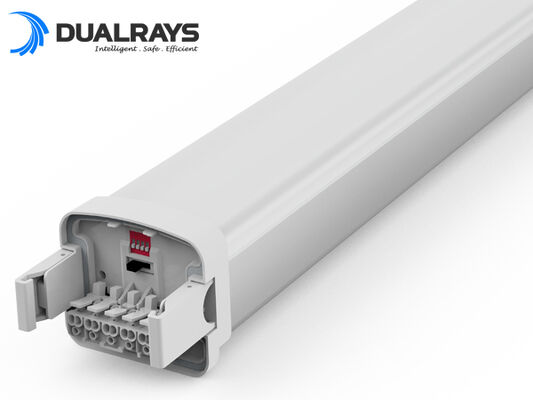

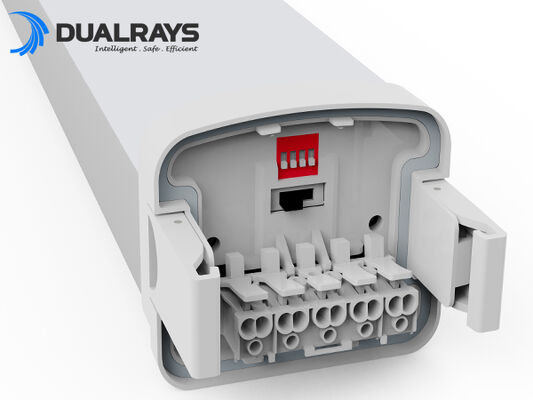

* Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;
* Singe or Double wiring,Multiple Link with Double Wiring;
* 120°Beam Angle;
* Customized supported for special projects;

* Sport facility

* Replacement for fluorescent NCF

* Warehouse

* Exhibition center

Dualrays Heat Dissipation LED Tri Proof Light Industrial 48 Inch Led Tube Light 80W 3

Character/Length	2ft	3ft	4ft	5ft
A	600mm	900mm	1200mm	1500mm
B	90mm	90mm	90mm	90mm
C	74mm	74mm	74mm	74mm

Dualrays Heat Dissipation LED Tri Proof Light Industrial 48 Inch Led Tube Light 80W 5

Dualrays Heat Dissipation LED Tri Proof Light Industrial 48 Inch Led Tube Light 80W 6

Dualrays Heat Dissipation LED Tri Proof Light Industrial 48 Inch Led Tube Light 80W 7

Dualrays Heat Dissipation LED Tri Proof Light Industrial 48 Inch Led Tube Light 80W 8

Size	Power	Outer Carton Size(MM)	G.W(KG)	Qty"/CTN
2ft	20W/30W	655200270	11.3	6PCS
3ft	30W/40W	955200270	16.8	6PCS
4ft	40W/50W/60W	1255200230	15.4	4PCS
5ft	50W/60W/80W	1555200230	17.6	4PCS

Dualrays Heat Dissipation LED Tri Proof Light Industrial 48 Inch Led Tube Light 80W 10
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Dualrays Heat Dissipation LED Tri Proof Light Industrial 48 Inch Led Tube Light 80W 13

Dualrays Heat Dissipation LED Tri Proof Light Industrial 48 Inch Led Tube Light 80W 14

Dualrays Heat Dissipation LED Tri Proof Light Industrial 48 Inch Led Tube Light 80W 15

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
