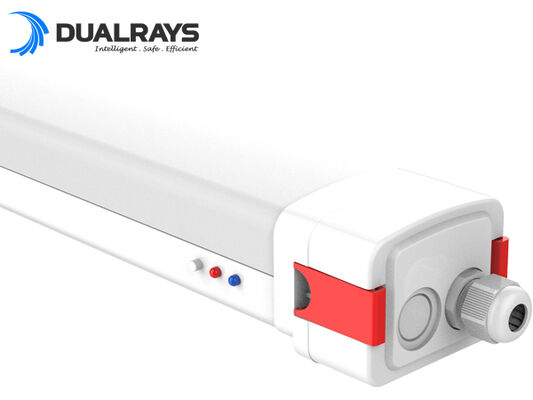

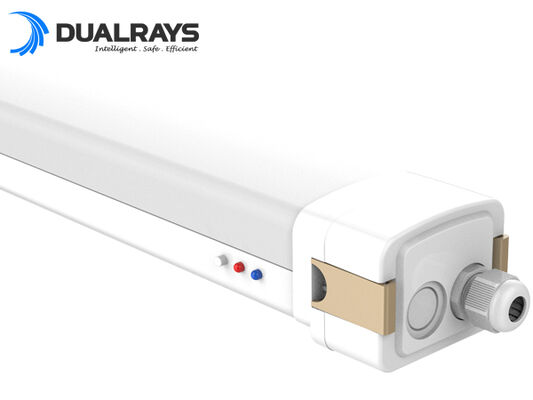

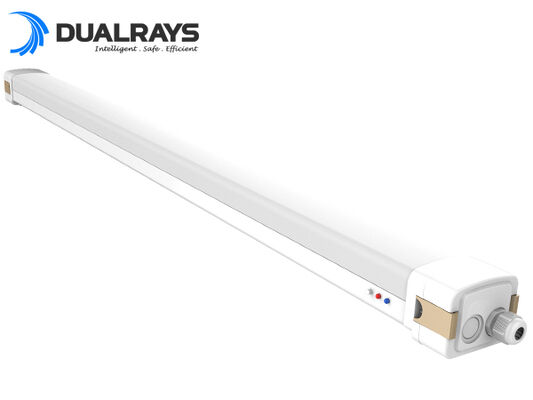

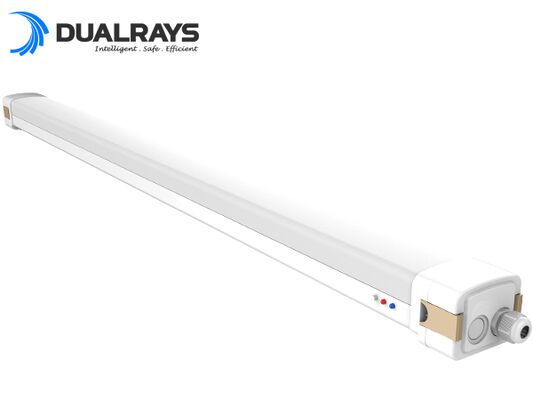

Name: Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: D5
Availability: InStock

Home Products LED Moisture-proof Lamp

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM/ODM/OBM Available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	D5

Payment & Shipping Terms:

Minimum Order Quantity:	9PCS/1CTN
Price:	Please inquiry for updated price

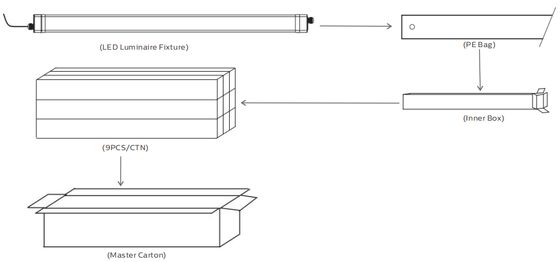

Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	60W	Global Certificate:	ENEC \| CE \| RoHS \| D-mark \| KEMA-KEUR Listed, SAA \| C-Tick \| RCM \| CB \| ETL/CETL \| DLC Premium
Installation:	Ceiling Mounted \| Suspension Rotatable \| Wall Mounted	Lifespan:	L80/B10 @ 62.000 Hrs;
IP Rating:	IP65	Main Voltage:	220~240VAC/ 50/60Hz, 180-264VDC
CCT:	3 CCT Optional (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K)	Total Harmonic Distortion (THD):	＜10%
SDCM:	<6 As Standard(<3 Optional)	Various Intelligent Control:	1-10V, DALI, Motion Sensor,Daylight Sensor,Zigbee And Emergency
Highlight:	dust proof light fixture , vapor proof led light

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 0

Dualrays D5 Series 5ft 80W LED Tri Proof Light-- Detailed Product Description

Model No.:	DR-TPL080-EG52	Life Span:	50,000hrs
Power:	80W	Protection:	IP66, IK10
Energy efficient:	160 lm/w	Warranty:	5 Years
Lumin Output/lm	12,800±5%	Material	Al+PC

Dualrays D5 Series 5ft 80W LED Tri Proof Light--Features

> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs, up to 160 lm/w energy efficient;

> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;

> Single or Double wiring;

> IP65/IP66 and IK10 for all industrial areas of application;

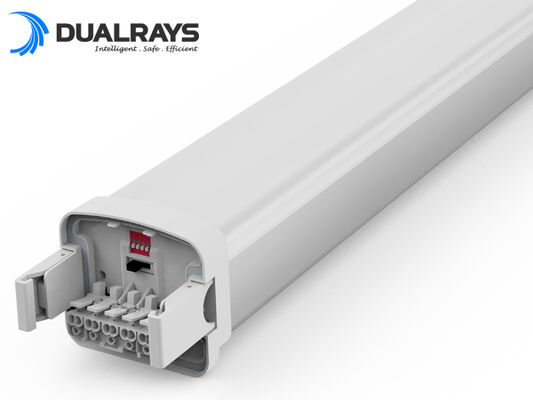

> Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;;

> Multiple Link with double wiring;

> Completely mercury free and no UV or IR;

> 5 years warranty;

Dualrays D5 Series 5ft 80W LED Tri Proof Light--Features

> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.

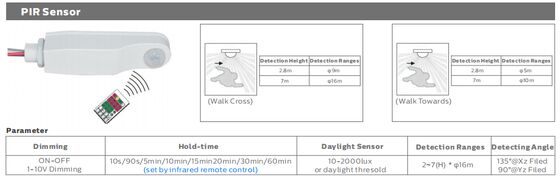

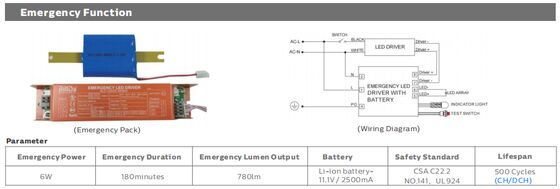

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.

> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

> Installation: Suspension, Ceilign Mounted and adjustable surface mount.
> Single or double wiring and connection.

> Customized for special projects acceptable.

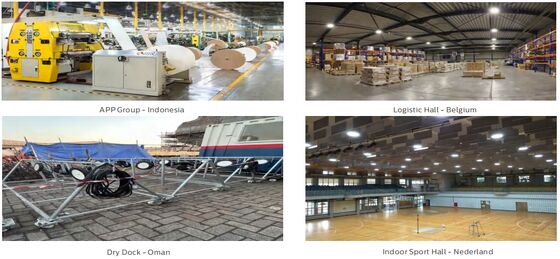

* Replacement for fluorescent NCF

* Workshops and warehouse

* Garage and car parks

* Sport facility

* Corridor/Gallery/Corridor

* Outdoor & Indoor Locations

Character/Length	2ft	3ft	4ft	5ft
A	600mm	900mm	1200mm	1500mm
B	90mm	90mm	90mm	90mm
C	74mm	74mm	74mm	74mm

DALI Device
Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 12

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 25

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 26

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 27

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 28

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 29

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 30

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 31

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 32

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 33

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 34

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 35

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 36

Dualrays D5 Series 5ft 80W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty 37
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
