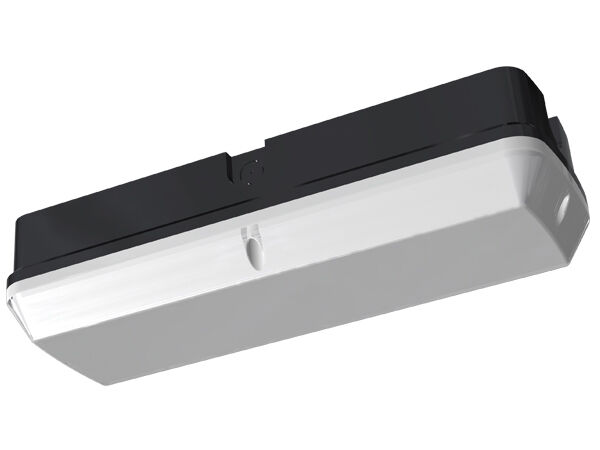

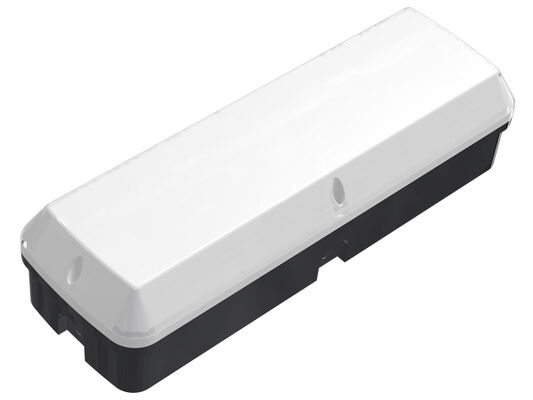

* High Brightness SAN'AN SMD2835 LEDs, High PF Flicker-free Driver DIP Switch Power Adjustment Optional;
* Power and 3 CCT Switchable;
* Protection Level: IP65 / IK10;

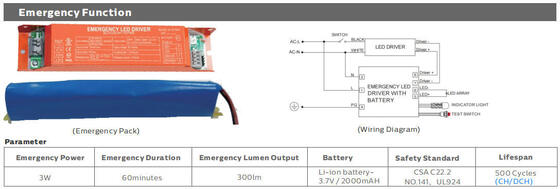

* Emergency with
3W@1 ;

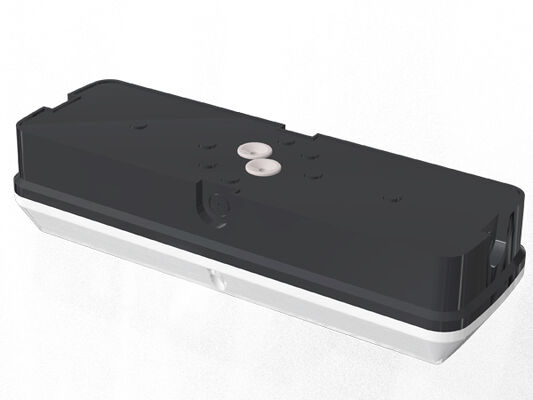

* Multiple Installations: Ceiling Mounting, Wall Mounting Optional;

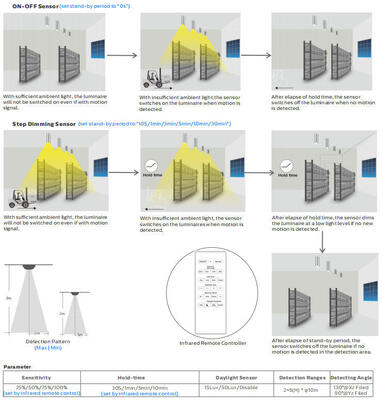

* Various intelligent control: 1-10V,Motion sensor,Daylight sensor and Emergency ;
* No UV or IR and completely mercury free;
* L80/B10 @ 52.000h;
* Customized supported for special projects;
Options:
> Driver: Driver with Power and 3CCT Switchable.
> Controls and Dimming: 1-10V, Motion Sensor,Daylight sensor and Emergency;
> Installation: Ceiling Mounting, Wall Mounting;

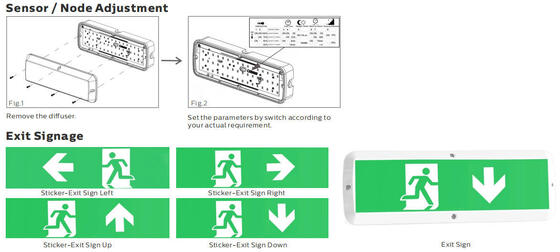

> Emergency Exit Signage with 4 Directions Sticker;
> Direct replacement for luminaires with fluorescent lamps;
> Corridors, stairways, entrance areas,lift lobbies, galleries;
> Passages, underpasses;
> Portals, porches, balconies, facades, storerooms;
> Toilets and bathrooms;
> Public areas;

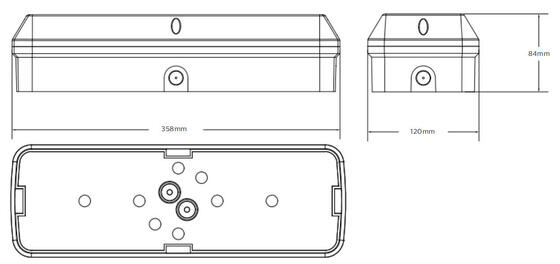

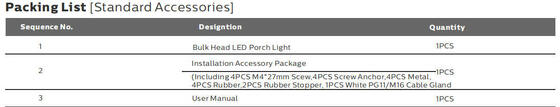

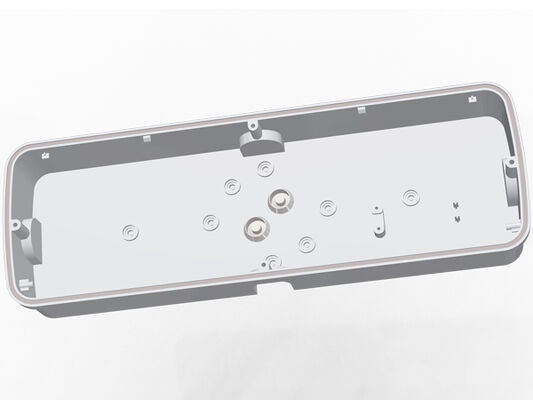

| General System |
| Housing Material: Extruted PC according to the UNE-EN ISO 21305-1:2020 standard, UV filter conditional(IK10) |
| Diffuser Material: Extruted PC according to the UNE-EN ISO 21305-1:2020 standard, UV filter conditional(IK10) |
| Housing Color: White (RAL9016), Other colors optional |
| Sealing Gaskets: Silicone foam |

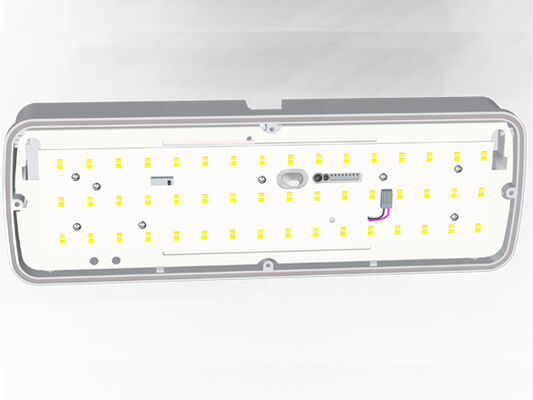

LEDs Thermal Dissipation: Through finless 6063 AL luminaire body, without conductive fluids. Passive convection dissipation
ensuring thermal contact with the LED modules through a high-conductivity Lead-free solder paste |
|
Lamp type: LED Exchangeable
|
| Light Outlet: Direct |
| Recommended Mounted Height: 2 - 4 meters |
| Maintenance: Diffuser Open / Close with screw |

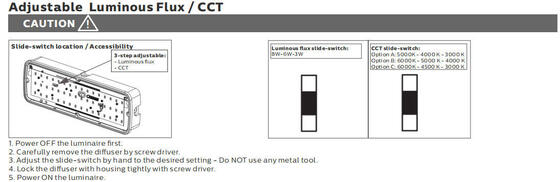

| Driver: Constant current with optional power adjustable via DIP switch, embedded in luminaire, pre-wired |
| Dimming Control: ON-OFF | 1-10V dimming |
| IP (Ingress Protection Rating): IP65 |
| IK (Impact Resistance): IK10 |
| Protective Class: Class ⅠⅠ / Class ⅠⅠⅠ Optional |
| Glow Wire: 850°C (Under 30s) |
| Cable Gland: PG11 / M16 Max cable gland (Nylon or SS304/316 Cable Gland Optional) |
| Installation: Ceiling mounted | Wall Mounted Optional |

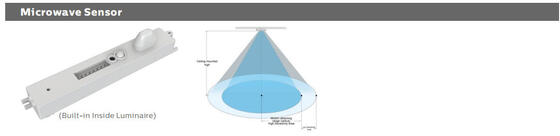

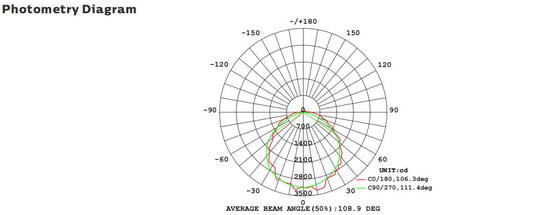

| Smart Function: Microwave Sensor | Emergency | Microwave Sensor + Emergency |
| Electrical System |
| Through-wiring: 3*0.75mm2 | 3*1.0mm2 | 3*1.5mm2 wires through for option |
| Main Voltage: 220~240VAC/ 50/60Hz, 180-264VDC AC/DC24~42V Optional |
| Power Factor (PF): ≥0.92 |
| Total Harmonic Distortion (THD): ＜10% |
| Output Type: Non-SELV(non-isolated) |
| Flicker Factor: ＜1% |
| Stroboscopic Visibility Measure (SVM): ＜0.4 |
| Perceptibility of Stroboscopic Effects (Pst): ＜1 |
| Terminal Connection: Push-in Clamp |
| Module via LSS Circuit Breakers Luminaires Power B10A B16A C10A C16A |
| 8W 175 275 245 395 |
| Photometry System |
| LEDs: SMD2835 (1W) |
| CCT (Correlated Color Temperature): Single CCT (3000K | 4000K | 5000K | 5700K |6500K) |
| 3CCT optional (3000-4000-5000K | 3000-4500-6000K | 4000-5000-6000K for choice) |
| CRI (Color Rendering Index): >80Ra for standard (>90Ra for higher CRI available) |
| Photobiological Safety: RG0 (exempt of risk) |
| EEC (Energy Effciency Class): A++ |
| SDCM (Standard Deviation of Color Matching): ＜5 (SDCM<3 Optional) |
|
UGR (4H, 8H) : 24.9 (Cross)
23.4 (Longitudinal)
|
| Beam Angle: 120° |
| Average Luminaire Useful Lifetime: 52.000 hours (L80B10) |
| Lumen Maintenance at e.o.l. >70% |
| Luminous Efficacy: 100LPW (BASELine) |
| Rated Power: 8W 8W DIP(3W~8W) |
| Lumens Delivered@ 5000K, CRl>80 (BASE) 800lm Max.800lm |
| Operation Condition |
| Operation Temperature / Humidity: -20~ +50℃ (-4°F ~ 122°F) / 5~85% RH, not condensed |
| Storage Temperature / Humidity: -40~ +80℃ (-40°F ~ 176°F) / 5~85% RH, not condensed |
| Average LED Useful Time L90B10: ≥0.96 |
| Rated Nominal Lifetime (Tp <70℃): Up to 100,000H |
| Driver MTBF: 500.000H,MIL-HDBK-217F(25℃) |
| Vibration Resistant: 10~500Hz,5G 12min / 1cycle,period for 72min. Each along X,Y,Z axes |
| Acoustic Noise: ＜25dB (30cm disstance, Normal operation) |
| Guarantee: 5 Years |
| Certifications |
| Global Certificate: ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium |
| Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471 |
| EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384 |
| Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11 |
* Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRl>80.
* Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.

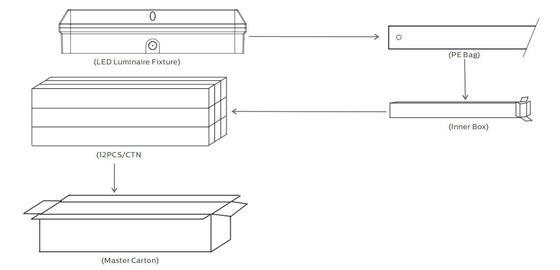

* Up-to-date product info and general warranty terms available on our website www.DUALRAYS.com
* Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
* Values may be subject to change due to LED binning.
* The parameters in the data sheet are given for Ta=25°C, based on 4000K/80Ra, 10% efficiency higher with 70Ra
