Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse

Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse

  • Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse
  • Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse
  • Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse
  • Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-TPL040-EG32
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: Negotiated
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 business days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000PCS/Month
Contact Now
Detailed Product Description
Rated Power: 40W LEDs Typ/Qty: SMD2835 270pcs
Luminous Flux: 6,400±5% IP Rating: IP65
AC Input Vol: AC100~277V 50/60Hz Power Factor: PF>0.9
Lumen Maintenance @ 6000 Hrs: >90% Switching Cycle Before Failure: 100,000
High Light:

explosion proof led lights

,

dust proof light fixture

Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot




Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 1

Dualrays D5 Series 3ft 40W LED Tri Proof Light-- Detailed Product Description

Model No.: D5 Series Beam Angle: 120°
Power: 40W Protection: IP66,IK10
Energy efficient: 160 lm/w Warranty: 5 Years
Lumin Output/lm 2,400±5% Material Al+PC

Dualrays D5 Series 3ft 40W LED Tri Proof Light--Features
> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs, up to 160 lm/w energy efficient;

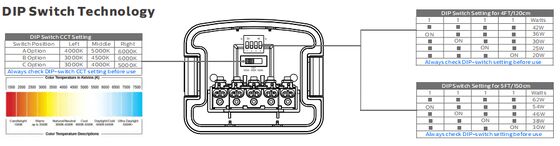

> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;
> Single or Double wiring;
> IP65/IP66 and IK10 for all industrial areas of application;

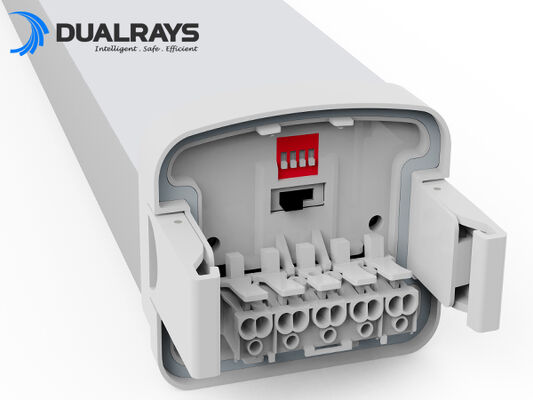

> Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;;
> Multiple Link with double wiring;
> Completely mercury free and no UV or IR;
> 5 years warranty;

Dualrays D5 Series 3ft 40W LED Tri Proof Light--Features
> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.

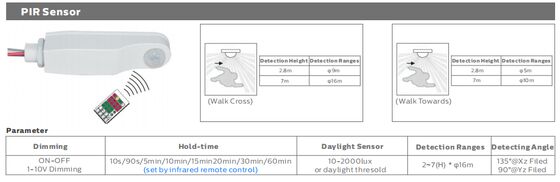

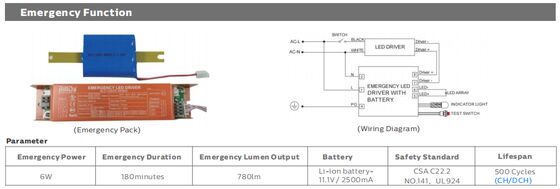

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.
> Installation: Suspension, Ceilign Mounted and adjustable surface mount.
> Single or double wiring and connection.
> Customized for special projects acceptable.

Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 2

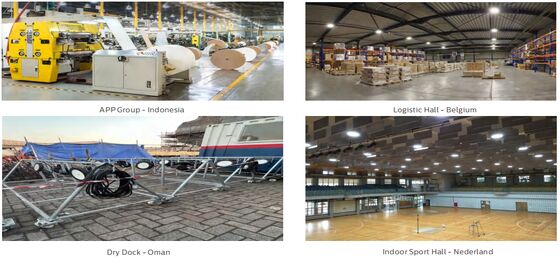

* Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations

Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 3
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 4

Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 5
Character/Length
2ft
3ft
4ft
5ft
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 6
A
600mm
900mm
1200mm
1500mm
B
90mm
90mm
90mm
90mm
C
74mm
74mm
74mm
74mm

Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 7
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 8
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 9
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 10
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 11
DALI Device
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 12

DALI Intelligent Control Diagram
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 13 Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 14


DALI Intelligent Control Operator Interface
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 15

Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 16
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 17


Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 18

Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 19
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 20
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 21

Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 22
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 23
Dualrays D5 Series 3ft 40W 160LmW High Efficiency LED Tri Proof Light​ for Workshops and Warehouse 24
