Name: 150W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-HB150-BHGXP
Availability: InStock

Home Products LED Highbay Light

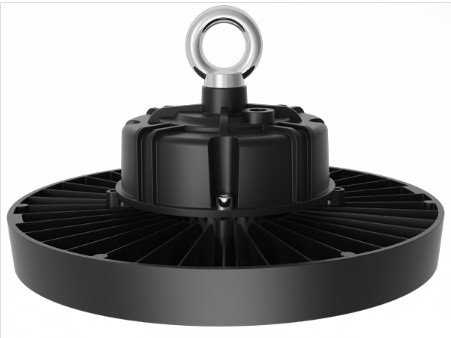

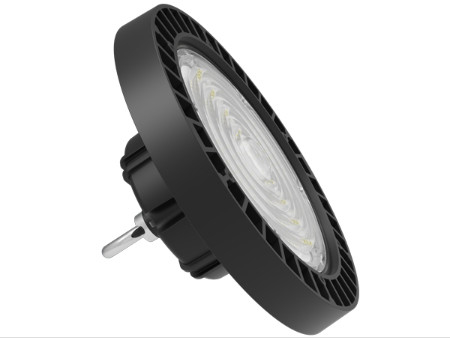

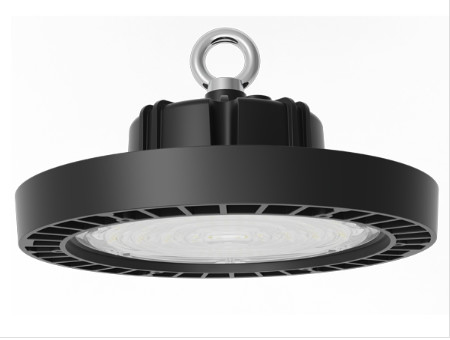

150W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE ROHS SAA ISO
Model Number:	DR-HB150-BHGXP

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Please inquiry for updated price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union, paypal
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Input Voltage/V:	AC100~277V, 50/60Hz	LEDs Light Source:	SMD2835 (1W)
CCT/K:	5000K For Standard (3000K/4000K/5700K/6500K Optional)	CRI/Ra:	>70Ra (>80Ra For Option)
Beam Angle(Optional):	60°/90°/120° Optional	Dimming:	0/1-10V/Zigbee
Material:	Aluminum+PC (Toughened Glass Cover Optional)	Lifespan/hrs:	56.000 Hrs (Ta=30℃@L70)
IP Rating:	IP65	IK Level:	IK08

200W HB2.5 UFO Hight Bay Light New Design For Wholesale High Performance SMD2835

150W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish 0

Options:

> Driver: DUALRAYS Non-isolated Driver;

> Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;

> Reflector : PC reflector / Al reflector;

> Lens : 60°/90°/120° beam angle optional;

> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

Features:

> High Brightness SMD2835 LEDs (1W), DUALRAYS Own-developed Driver;

> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity；

> IP65 / IK08 Protection;

> 60°/90° /120° beam angle optional;

> Corrosive Resistant Powder Coated Finish;

> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;

> Various intelligent control: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;

> L70/B20 @ 56.000h;

> Customized supported for special projects;

Application:

> Factories / Warehouses / Supermarket

> Exhibitions / Showrooms / Animal Farm

> Barns and Riding Halls / Logistic Center

> High Rooms and Halls / Stadium / Chemical Plant

> Traditional lamp replacement

Specification:

Model No.	DR-HB100-BHGXP	DR-HB150-BHGXP	DR-HB200-BHGXP
System Watts/W	100W	150W	200W
System Efficiency/LPW	140LPW / 160LPW Optional
Lumen Output/lm	14.000 / 16.000±5%	21.000 / 24.000±5%	28.000 / 32.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD2835 (1W)
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	60°/90°/120° Optional
UGR	<25
Surge Protection	3.75~4KV SPD built in Driver
LED Driver	DUALRAYS Own-developed High PF Non-isolated Driver
IP Rating	IP65
Dimming(Optional)	0/1-10V/Zigbee
Sensor(Optional)	Motion Sensor,Daylight Sensor
Emergency(Optional)	Available (30W @ 3Hrs for Standard)
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs	56.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Dimmision:

Character/Power	100W	150W	200W
A	φ255mm	φ295mm	φ335mm
B	151mm	163mm	168mm

Optical and photometric:

150W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish 2

Installation:

150W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish 3

150W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish 4

Smart Lighting Introduction:

150W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish 5

150W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish 6

150W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish 7

Details Demo:

150W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish 8

150W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish 9

Shipment and Package:

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-HB100-BHGXP	2.1	280280130	2.4	1PCS/CTN
DR-HB150-BHGXP	2.5	330330130	2.8	1PCS/CTN
DR-HB200-BHGXP	2.8	380380170	3.1	1PCS/CTN
