Place of Origin: | China |
Brand Name: | DUALRAYS |
Certification: | CE |
Model Number: | DR-HB200-CGXP |
Minimum Order Quantity: | 1 |
---|---|
Price: | 1 |
Packaging Details: | box |
Delivery Time: | 8 |
Payment Terms: | T/T |
Supply Ability: | 99999 |
Input Vol: | AC200~240V 50/60Hz | Various Intelligent Control:: | 1-10V, Motion Sensor,Daylight Sensor,Zigbee And Emergency; |
---|---|---|---|
Beam Angle: | 60°/90°/120°optional | Lifespan: | L70/B20 @ 60.000h |

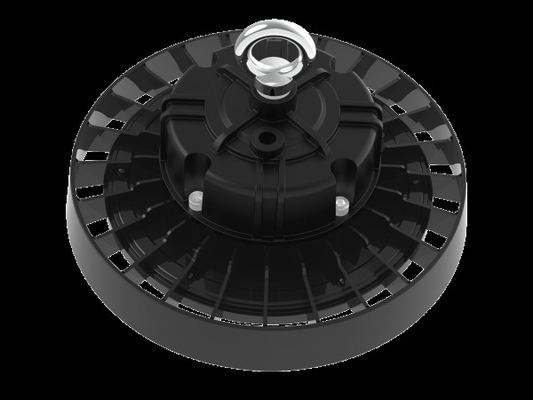

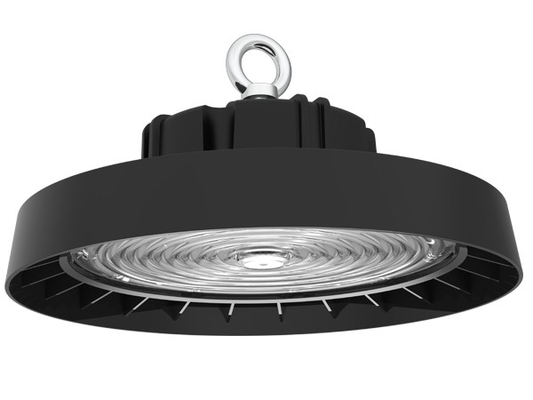

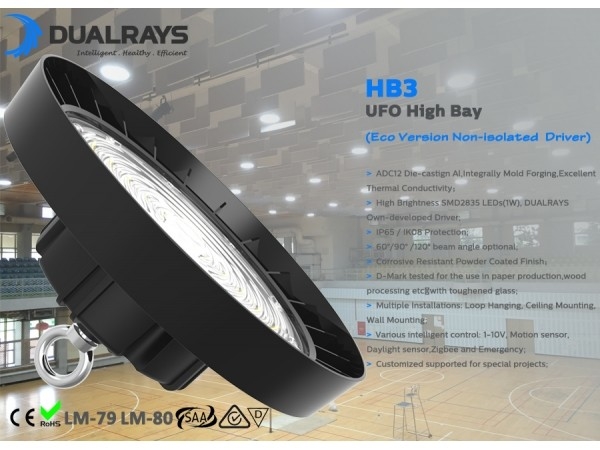

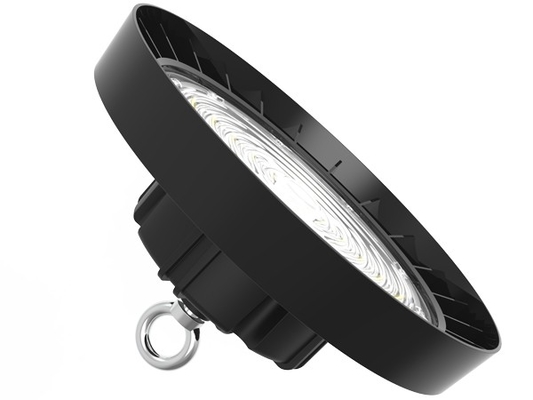

LED high bay and low bay lights IP65 200w led ufo high bay with Emergency
Warehouse lighting plays an important role in lighting up the warehouse.
As we all know lighting is important to check the materials and also as a part of safety.
One must identify which materials and to know whereabouts of the products.
We at LED Corner provide the best quality warehouse lights such as High bay & low bay.
We do have newly arrived UFO type of high bay lights.
It is cost effective and consumes very less energy compared to the traditional lighting.
Features
Model No.
|
DR-HB100-CGXP
|
DR-HB150-CGXP
|
DR-HB200-CGXP
|
System Watts/W
|
100W
|
150W
|
200W
|
System Efficiency/LPW
|
140LPW / 160LPW Optional
|
||
Lumen Output/lm
|
14.000 / 16.000±5%
|
21.000 / 24.000±5%
|
28.000 / 32.000±5%
|
Rated Input Voltage/V
|
AC100~277V, 50/60Hz
|
||
LEDs Light Source
|
SMD2835 (1W)
|
||
SDCM
|
<5
|
||
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional)
|
||
CRI/Ra
|
>70Ra (>80Ra for Option)
|
||
Power Factor
|
>0.95
|
||
THD
|
<10%
|
||
Beam Angle(Optional)
|
60°/90°/120° Optional
|
||
UGR
|
<25
|
||
Surge Protection
|
3.75~4KV SPD built in Driver
|
||
LED Driver
|
DUALRAYS Own-developed High PF Non-isolated Driver
|
||
IP Rating
|
IP65
|
||
Dimming(Optional)
|
0/1-10V/Zigbee
|
||
Sensor(Optional)
|
Motion Sensor,Daylight Sensor
|
||
Emergency(Optional)
|
Available (30W @ 3Hrs for Standard)
|
||
Protection Class
|
ClassⅠ
|
||
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional
|
||
Material
|
Aluminum+PC (Toughened Glass Cover Optional)
|
||
Lifespan/hrs
|
60.000 Hrs (Ta=30℃@L70)
|
||
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F)
|
||
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F)
|
||
Installation(Optional)
|
Loop Hanging, Ceiling Mounting, Wall Mounting
|
||
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
|
