| Place of Origin: | China |
| Brand Name: | Dualrays |
| Certification: | CE,RoHS,,D-Mark |
| Model Number: | DR-HB100- CHGXP |
| Minimum Order Quantity: | 2ps |
|---|---|
| Price: | USD35 |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 100000 |
| Material: | Aluminum Alloy+PC | Power: | 100W |
|---|---|---|---|
| Input Voltage: | AC200~240V 50/60Hz | LED Quantities: | 160pcs |

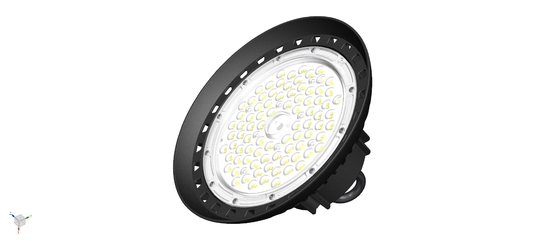

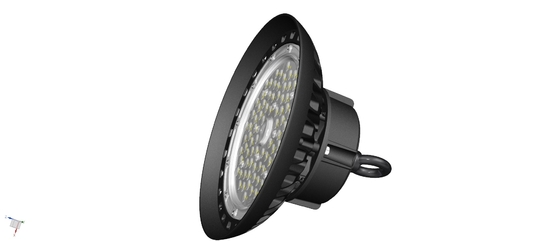

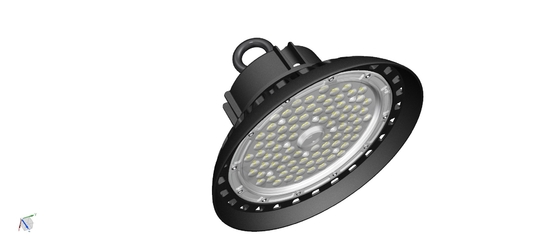

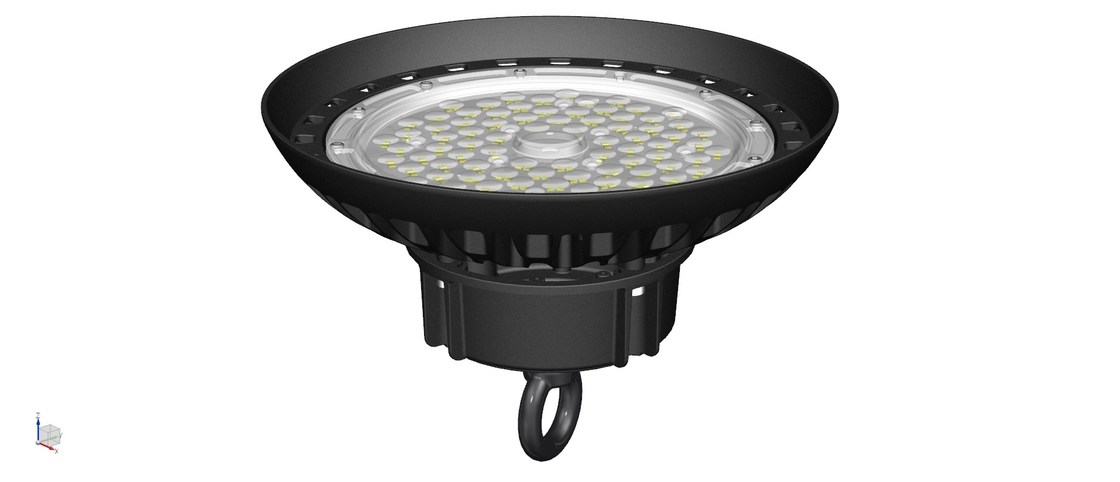

Dualrays LED UFO high bay light with 140LPW luminous efficacy best quality
|
Model No.
|
DR-HB100-CGXP
|
DR-HB150-CGXP
|
DR-HB200-CGXP
|
|
System Watts/W
|
100W
|
150W
|
200W
|
|
System Efficiency/LPW
|
140LPW / 160LPW Optional
|
||
|
Lumen Output/lm
|
14.000 / 16.000±5%
|
21.000 / 24.000±5%
|
28.000 / 32.000±5%
|
|
Rated Input Voltage/V
|
AC100~277V, 50/60Hz
|
||
|
LEDs Light Source
|
SMD2835 (1W)
|
||
|
SDCM
|
<5
|
||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional)
|
||
|
CRI/Ra
|
>70Ra (>80Ra for Option)
|
||
|
Power Factor
|
>0.95
|
||
|
THD
|
<10%
|
||
|
Beam Angle(Optional)
|
60°/90°/120° Optional
|
||
|
UGR
|
<25
|
||
|
Surge Protection
|
3.75~4KV SPD built in Driver
|
||
|
LED Driver
|
DUALRAYS Own-developed High PF Non-isolated Driver
|
||
|
IP Rating
|
IP65
|
||
|
Dimming(Optional)
|
0/1-10V/Zigbee
|
||
|
Sensor(Optional)
|
Motion Sensor,Daylight Sensor
|
||
|
Emergency(Optional)
|
Available (30W @ 3Hrs for Standard)
|
||
|
Protection Class
|
ClassⅠ
|
||
|
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional
|
||
|
Material
|
Aluminum+PC (Toughened Glass Cover Optional)
|
||
|
Lifespan/hrs
|
60.000 Hrs (Ta=30℃@L70)
|
||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F)
|
||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F)
|
||
|
Installation(Optional)
|
Loop Hanging, Ceiling Mounting, Wall Mounting
|
||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
|
||
