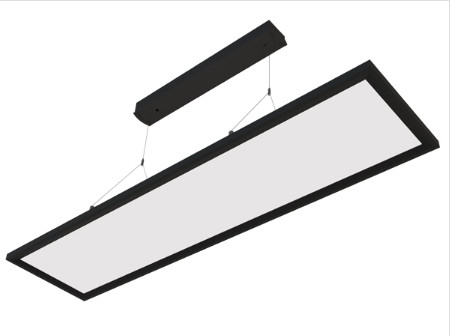

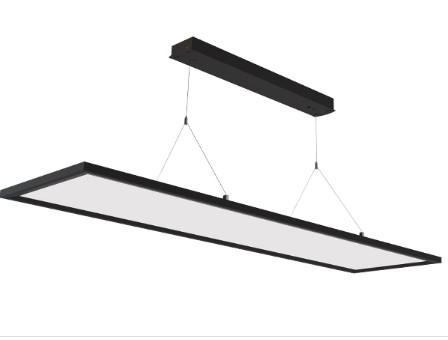

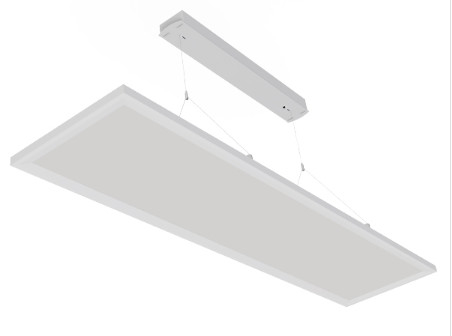

Office Led Pandent Light 50W 120LPW BOKE LIFUD High PF Flicker Free Driver

Office Led Pandent Light 50W 120LPW BOKE LIFUD High PF Flicker Free Driver

  • Office Led Pandent Light 50W 120LPW BOKE LIFUD High PF Flicker Free Driver
  • Office Led Pandent Light 50W 120LPW BOKE LIFUD High PF Flicker Free Driver
  • Office Led Pandent Light 50W 120LPW BOKE LIFUD High PF Flicker Free Driver
Office Led Pandent Light 50W 120LPW BOKE LIFUD High PF Flicker Free Driver
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
Model Number: DR-OP0312-50HC32X
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: negotiate
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Business Day
Payment Terms: L/C, T/T, Western Union, paypal
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Model No.: DR-OP0312-50HC32X IP Rating: IP20
IK Level: IK04 LEDs Light Source: SMD2835
CCT/K: 5000K CRI/Ra: >80Ra (>70Ra For Option)
Highlight:

SMD2835 LEDs Pandent Light

,

IK04 Led Pandent Light

,

Low Glare Led Pandent Light

OP5 Office Led Pandent Light 50W 120LPW Low Galre And Indirect Lighting For Workstation

Office Led Pandent Light 50W 120LPW BOKE LIFUD High PF Flicker Free Driver 0



Features:

> High Brightness SAN‘AN SMD2835 LEDs, BOKE/LIFUD High PF Flicker-free Driver;
> Low Glare with UGR<16 ;
> IP20 / IK04 Protection;
> 120° upward, 100° downward;
> Indirect Lighting to the dark ceiling and cave atmosphere;
> 1-10V,DALI Dimming Optional;
> 1.5m suspension wirerope can be adjusted to different length to suit for the workstations;
> Special designed driver box to avoid visible cables and fastening screws,more elegent;
> No UV or IR and completely mercury free;
> L70/B20 @ 54.000h;
> Customized supported for special projects;

Options:
> Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable;
> Installation : Suspension, Wall Mounting;
> Wiring: Single or double wiring;

Application:
> Office;
> Workstations;
> Meeting Room;
> Restaurant;
> Hospitaland Studio;
> Other Indoor Locations

Specification:
Model No.
DR-OP0312-50HC32X
System Watts/W
50W
System Efficiency/LPW
120LPW
Lumen Output/lm
4.080 (Down)/1.920(Up)±5%
Rated Input Voltage/V
AC200~240V 50/60Hz (AC100~277V, 50/60Hz Optional)
LEDs Light Source
SMD2835
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>80Ra (>70Ra for Option)
Power Factor
>0.92
THD
<10%
Beam Angle
120°(Up) / 110°(Down)
UGR
<16
LED Driver
BOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP Rating
IP20
Dimming(Optional)
1-10V, DALI,Zigbee
Emergency(Optional)
5W@3 Hours or Customized
Sensor(Optional)
Daylight sensor/Microwave Sensor
Protection Class
ClassⅠ
Finishing Color(Optional)
RAL9016 Matt White / RAL9005 Black
Material
AL+PMMA
Lifespan/hrs
54.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
-40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)
Suspension / Ceiling Mounting Optional
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Dimension:


Optical&photometric:





Installation:

Office Led Pandent Light 50W 120LPW BOKE LIFUD High PF Flicker Free Driver 1







Emergency introduction:

Office Led Pandent Light 50W 120LPW BOKE LIFUD High PF Flicker Free Driver 2



Packaging information:

Office Led Pandent Light 50W 120LPW BOKE LIFUD High PF Flicker Free Driver 3



Microwave sensor introduction:

Office Led Pandent Light 50W 120LPW BOKE LIFUD High PF Flicker Free Driver 4



Details Demo:

















Office Led Pandent Light 50W 120LPW BOKE LIFUD High PF Flicker Free Driver 5
