Name: Dualrays LED Triproof Light Buckle End Cap Easy Installation High Luminous Efficacy
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-TP020- EG2XP
Price: 17 USD
Availability: InStock

Home Products LED Moisture-proof Lamp

Dualrays LED Triproof Light Buckle End Cap Easy Installation High Luminous Efficacy

Product Details:

Place of Origin:	China
Brand Name:	Dualrays
Certification:	CE,RoHS,D-Mark
Model Number:	DR-TP020- EG2XP

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	USD17
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T
Supply Ability:	100000

Contact Now

Detailed Product Description

Material:

Aluminum Alloy + PC

Power:

20W

LED Quantities:

156pcs

CRI/Ra:

>80

Highlight:

156pcs LED Triproof Light

160LPW Ip65 Triproof Led Light

RoHS Triproof Led Tube Light

Dualrays LED Triproof light buck;e end-cap for easy installation

Features:

> Single Phase (L/N/E) or Three Phase (L1/L2/L3/N/FG)Optional;
> Tri-Color optional (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K);
> High Brightness SAN‘AN SMD2835 LEDs, BOKE High PF Flicker-free Driver DIP Switch Power Adjustment Optional;

> Buckle Design End-cap,Quick & Convenient to Open and Relock for Wiring, Greatly Improve Efficiency

And Save Labor Cost;

> 1/2 Al Housing + 1/2 PC Cover,Excellent Thermal Conductivity;

> IP65 / IK10 Protection;

> 120°beam angle;

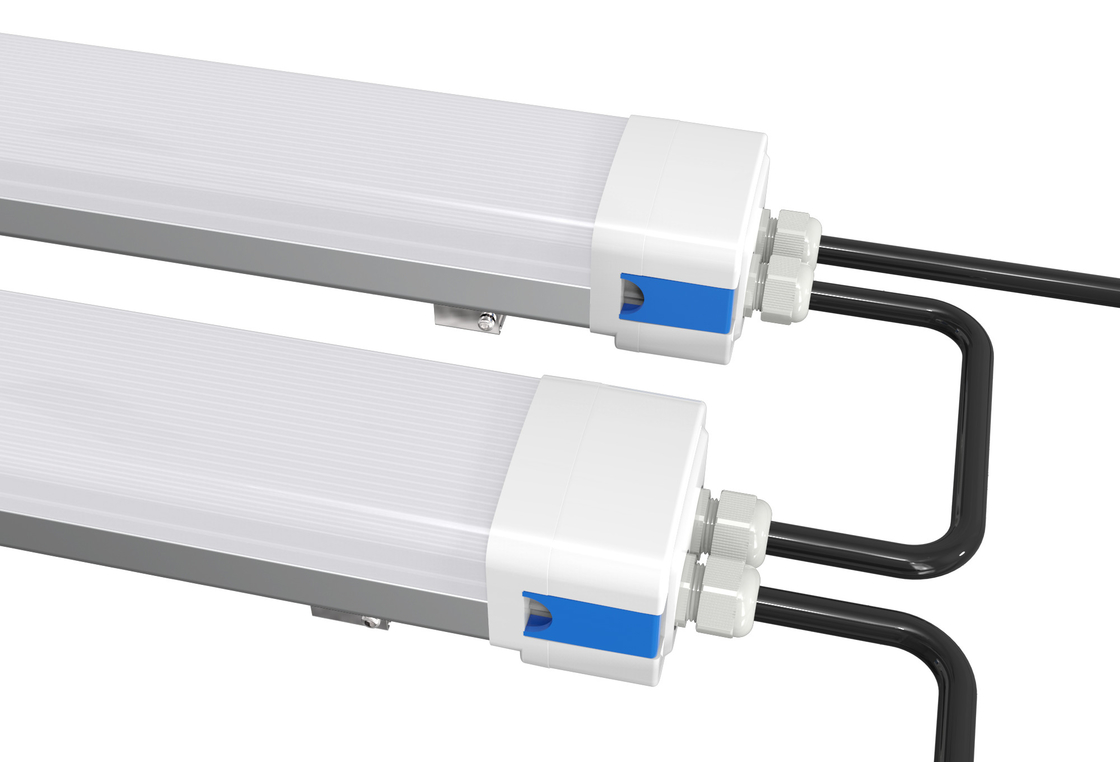

> Single or Double Wiring Optional,Linkabkle Through Single or Double End Wiring;

> Multiple Installations: Suspension, Wall Mounting;

> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;

> No UV or IR and completely mercury free;

Model No.	DR-TP020-EG2XPX	DR-TP040-EG4XPX	DR-TP050-EG4XPX	DR-TP060-EG5XPX	DR-TP080-EG5XPX
System Watts/W	20W	40W	50W	60W	80W
System Efficiency/LPW	130LPW / 160LPW Optioanl
Lumen Output/lm	2.600/3.200±5%	5.200/6.400±5%	6.500/8.000±5%	7.800/9.600±5%	10.400/12.800±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD2835
SDCM	<6
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.91
THD	<10%
Beam Angle(Optional)	120°
UGR	<22
LED Driver	BOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP Rating	IP65
IK Level	IK08
Dimming(Optional)	1-10V, DALI,Zigbee
Sensor(Optional)	Daylight sensor/Microwave Sensor
Emergency(Optional)	5W@3 Hours or Customized
Protection Class	ClassⅠ
Finishing Color(Optional)	White RAL9016 Optional
Material	AL+PC
Lifespan/hrs	62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Suspension / Ceiling Mounting Optional
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
