| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS(OEM/ODM/OBM Available) |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | HB5 |
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Netural Package/OEM/ODM/OBM Package Available |
| Delivery Time: | Within 3 business days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 50000PCS/Month |
| Rated Power: | 200W | Luminaire Efficiency: | 150LPW (PROLine) | 170LPW (PRIMELine) | 190LPW (ULTRALine) Optional |
|---|---|---|---|

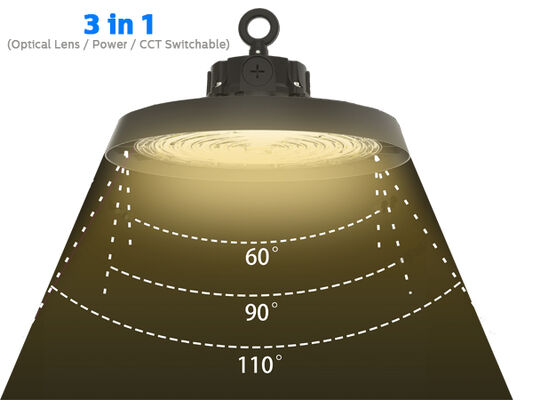

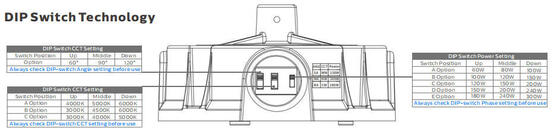

| Beam Angle: | DIP Switchable Optical Lens (60°/90°/110°) Optional(200W PROLine Version) | Lifespan: | L80/B10 @ 65.000h |
| Recommended Mounted Height: | 5 - 15 Meters | IK: | IK08 |
| UGR: | <25 | IP: | IP65 |
| Highlight: | 200W IP65 Warehouse UFO High Bay,SMD2835 Ufo High Bay Fixture IP65 |
||

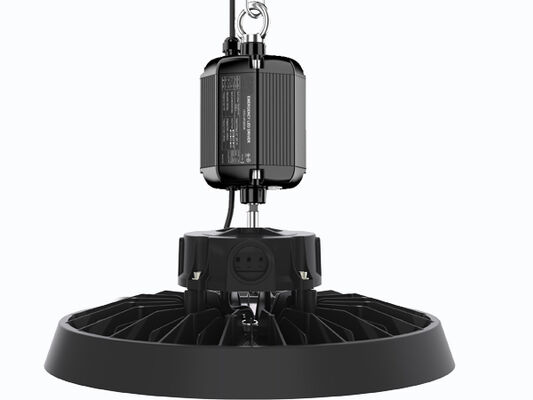

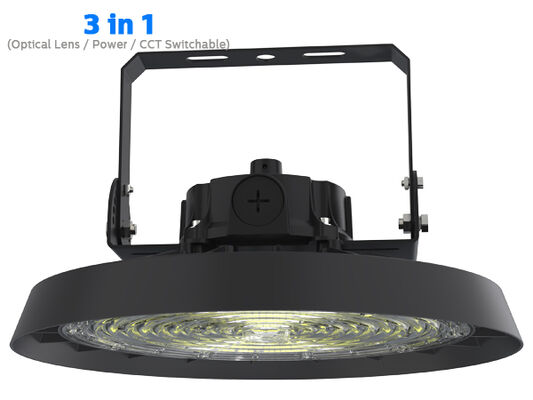

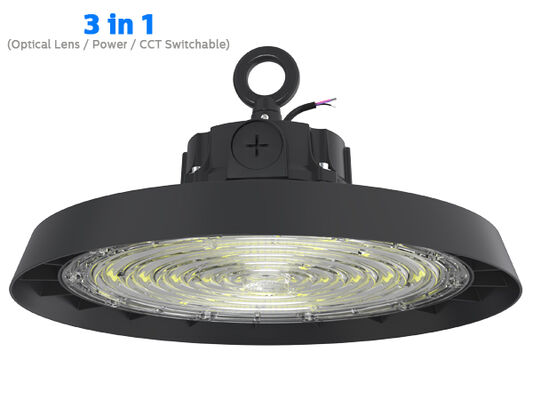

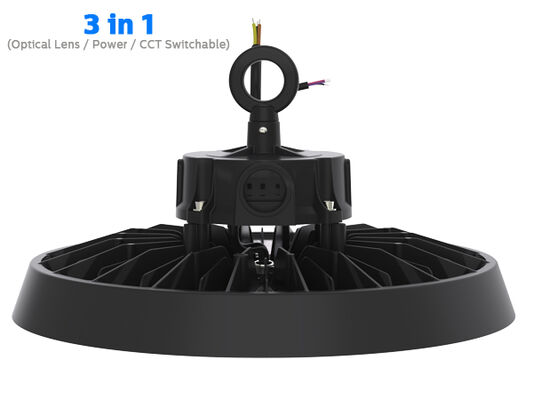

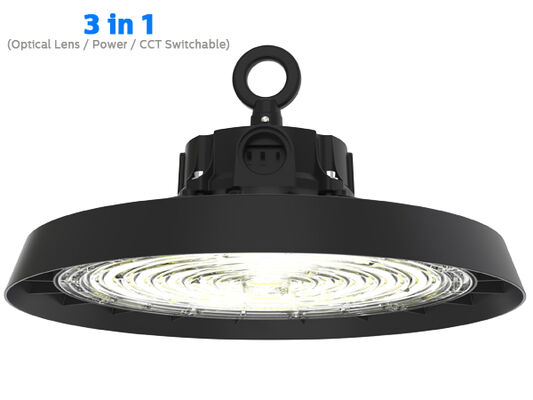

200W Motion Sensor Daylight Sensor UFO High Bay 5 year warranty Industrial Warehouse
Features:
> High Brightness SMD2835 LEDs (1W), LIFUD / SOSEN Round/Rectangle Driver;
> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity；
> IP65 / IK08 Protection;
> 60°/90° (with PC/Al Cover)/120°(with Al Refelctor) Reflector is Necessary;
Options:
| Model No. |
DR-HB100-XGXP
|
DR-HB150-XGXP
|
DR-HB200-XGXP
|
| System Watts/W |
100W
|
150W
|
200W
|
| System Efficiency/LPW |
140LPW / 160LPW Optional
|
||
| Lumen Output/lm |
14.000 / 16.000±5%
|
21.000 / 24.000±5%
|
28.000 / 32.000±5%
|
| Rated Input Voltage/V |
AC100~277V, 50/60Hz
|
||
| LEDs Light Source |
SMD2835 (1W)
|
||
| SDCM |
<5
|
||
| CCT/K |
5000K for Standard (3000K/4000K/5700K/6500K Optional)
|
||
| CRI/Ra |
>70Ra (>80Ra for Option)
|
||
| Power Factor |
>0.95
|
||
| THD |
<10%
|
||

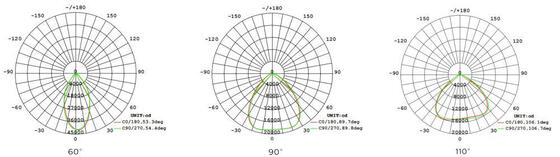

| Beam Angle(Optional) |
60°/90°/120° Optional
|
||
| UGR |
<25
|
||
| Surge Protection |
3.75~4KV SPD built in Driver
|
||
| LED Driver |
LIFUD / SOSEN Round/Rectangle Driver
|
||
| IP Rating |
IP65
|
||
| Dimming(Optional) |
0/1-10V/Zigbee
|
||
| Sensor(Optional) |
Motion Sensor,Daylight Sensor
|
||
| Model No. | Net Weight/Kg | Outer Carton Size/mm | Gross Weight/Kg | QTY”/CTN |
| DR-HB100-CGXP | 3.8 | 310*310*150 | 4.9 | 1PCS/CTN |
| DR-HB150-DGXP | 4.1 | 310*310*150 | 5.4 | 1PCS/CTN |
| DR-HB200-DGXP | 4.4 | 370*370*170 | 5.6 | 1PCS/CTN |
Shipment
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
