200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty

200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty

  • 200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty
  • 200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty
  • 200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty
  • 200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty
  • 200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty

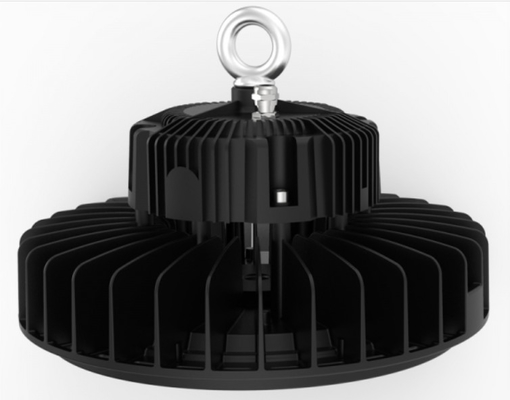

200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE, ROHS,TUV
Model Number: DR-HB200-XGXP
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Price: Negotiable
Packaging Details: Netural Package,OEM/ODM Package Available,2PCS/CTN
Delivery Time: 5-15 business days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Rated Power: 200W Luminaire Efficiency: 160LPW
Beam Angle: 60°/90°/120° Input Voltage: AC100~277V 50-60Hz
PF: >0.95 IK: IK08
UGR: <25 IP: IP65
High Light:

200W IP65 Warehouse UFO High Bay

,

SMD2835 Ufo High Bay Fixture IP65

200W Motion Sensor Daylight Sensor UFO High Bay 5 year warranty Industrial Warehouse

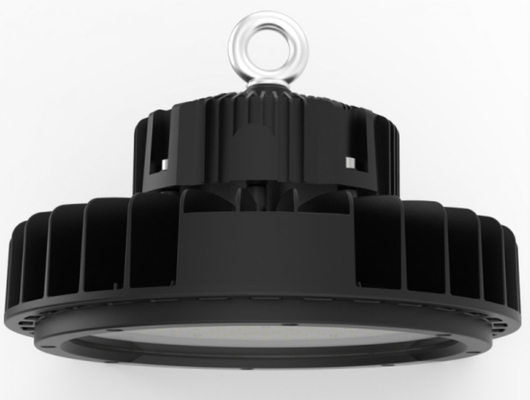

200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty 0


Features:
> High Brightness SMD2835 LEDs (1W), LIFUD / SOSEN Round/Rectangle Driver;
> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity;
> IP65 / IK08 Protection;
> 60°/90° (with PC/Al Cover)/120°(with Al Refelctor) Reflector is Necessary;

Options:

> Driver: LIFUD / SOSEN Round/Rectangle Driver
> Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;
> Reflector : PC reflector / Al reflector;
> Lens : 60°/90° (with PC/Al Cover)/120°(with Al Refelctor) Reflector;
> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

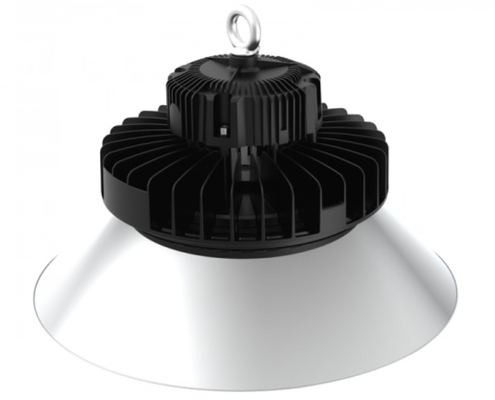

200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty 1
> Traditional lamp replacement
> Factories / Warehouses /Workshops
> Exhibitions & showrooms
> Barns and riding halls
> High rooms and halls

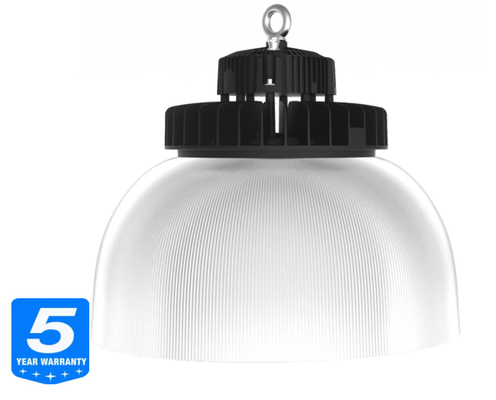

200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty 2

Model No.
DR-HB100-XGXP
DR-HB150-XGXP
DR-HB200-XGXP
System Watts/W
100W
150W
200W
System Efficiency/LPW
140LPW / 160LPW Optional
Lumen Output/lm
14.000 / 16.000±5%
21.000 / 24.000±5%
28.000 / 32.000±5%
Rated Input Voltage/V
AC100~277V, 50/60Hz
LEDs Light Source
SMD2835 (1W)
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
60°/90°/120° Optional
UGR
<25
Surge Protection
3.75~4KV SPD built in Driver
LED Driver
LIFUD / SOSEN Round/Rectangle Driver
IP Rating
IP65
Dimming(Optional)
0/1-10V/Zigbee
Sensor(Optional)
Motion Sensor,Daylight Sensor

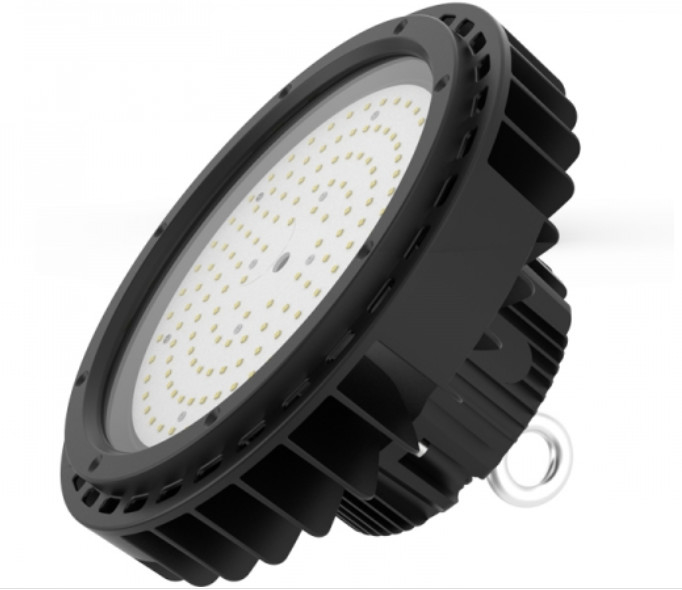

200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty 3

200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty 4

200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty 5

200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty 6
200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty 7

200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty 8





200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty 9
Packaging Information
Model No. Net Weight/Kg Outer Carton Size/mm Gross Weight/Kg QTY”/CTN
DR-HB100-CGXP 3.8 310*310*150 4.9 1PCS/CTN
DR-HB150-DGXP 4.1 310*310*150 5.4 1PCS/CTN
DR-HB200-DGXP 4.4 370*370*170 5.6 1PCS/CTN

Shipment
200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty 10
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.


200W Motion Sensor Daylight Sensor Warehouse UFO High Bay 5 Year Warranty 11
