| Place of Origin: | China |
| Brand Name: | Dualrays HB3 UFO High Bay Light |
| Certification: | CE ROHS SAA |
| Model Number: | DR-HB200-XGXP |
| Minimum Order Quantity: | 30pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Neutral packaging |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50000pcs per month |
| Model No.: | 200W Round High Bay Light | Housing Material: | Aluminum+PC (Toughened Glass Cover Optional) |
|---|---|---|---|
| Power Watts: | 100W-150W-200W | Finish Color: | Black Standard |
| IP Rating: | IP65 | IK Protection: | IK08 |
| Size: | Diameter 280mm;Height:194mm | Warranty: | 5 Years Warranty |
| High Light: | IP65 UFO LED High Bay Light,Dimming UFO LED High Bay Light,IK08 200 watt ufo high bay led light |
||

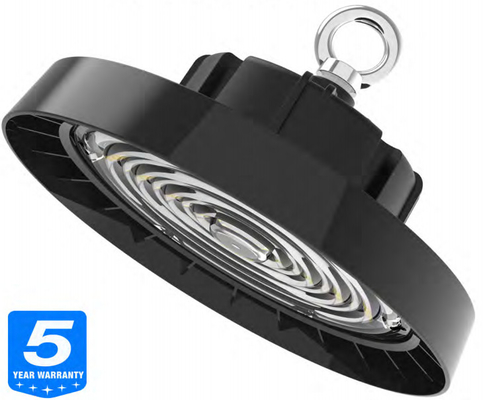

Dualrays HB3 light weight high bay led light
Quick detail:
> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity;
> High Brightness SMD2835 LEDs (1W), DUALRAYS Own-developed Non-isolated Driver;
> IP65 / IK08 Protection;
> 60°/90° /120°beam angle optional;
> Corrosive Resistant Powder Coated Finish;
> D-Mark tested for the use in paper production,wood processing etc with toughened glass;
> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Various intelligent control: 1-10V,Motion sensor,Daylight sensor,Zigbee and Emergency;
> No UV or IR and completely mercury free;
> L70/B20 @ 60.000h;
> Customized supported for special projects;
Options:
> Driver: DUALRAYS Own-developed Non-isolated Driver;
> Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;
> Reflector : PC reflector / Al reflector;
> Lens : 60°/90°/120° beam angle optional;
> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;
Advantage:
1.Economic version with light weight;
2.Full Die-casted material.
3.Easy installation,time saving.
4.fast delivery with good quality
5.Customized logo to expand your brands.
6.Widely used in industrial lighting.
| Product Name | Dualrays 200W UFO High Bay Light |
|---|---|
| Model No. |
DR-HB200-XGXP
|
|
System Efficiency/LPW
|
140LPW / 160LPW
|
|
Rated Input Voltage/V
|
AC100~277V, 50/60Hz
|
| Led chips |
SMD2835 (1W)
|
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional)
|
|
CRI/Ra
|
>70Ra (>80Ra for Option)
|
|
Power Factor
|
>0.95
|
|
Beam Angle(Optional)
|
60°/90°/120°
|
|
LED Driver
|
DUALRAYS Own-developed High PF Non-isolated Driver
|
|
Dimming(Optional)
|
0/1-10V/Zigbee
|
|
Installation(Optional)
|
Loop Hanging, Ceiling Mounting, Wall Mounting
|
> Garages Lighting
>warehouse lighting
> Sports facility
> Transportation Lightings
