75W DIP Switchable RM5 Universal LED Linear Retrofit Module 160LPW with ON-OFF | 1-10V dimming | DALI-2 | Mesh | Zigbee | Casambi Dimming
The RM5 linear retrofit module is developed to replace existing T5/T8 fluorescent lighting fixtures on rail systems.

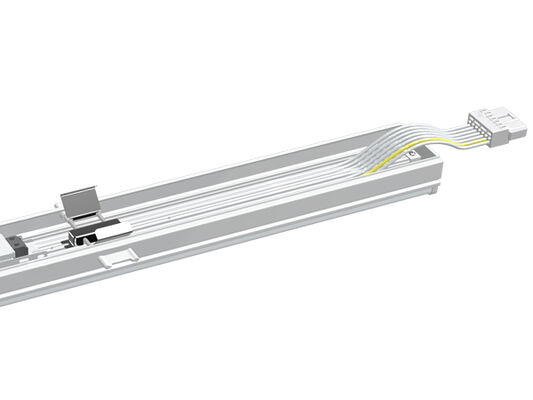

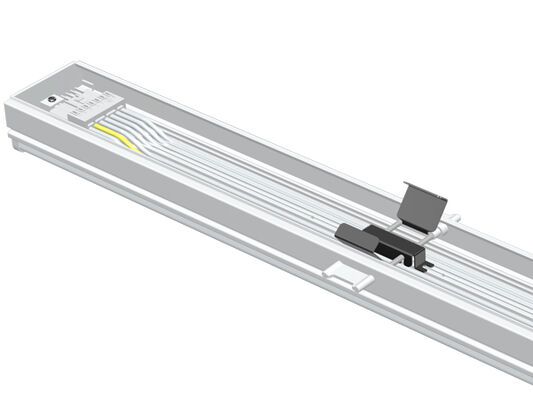

For the conventional fluorescent light fixtures, the original wires in the trunk rail can be snapped, and the linkable through cable is designed inside the module through WAGO
connectors.
It works with almost all trunk rail systems installed in the past 25 years, perfect retrofit solution to replace the old 2 x36w, 1 x58w and 2 x58w T5/T8 fluorescent light with and without reflectors.
Quick installation, easy replacement with the existing trunk system without tools within 40 seconds.
Any physical modifications is not necessary on the existing trunking system, just plug and play
Key Features & Specifications
- High Brightness SMD2835 LEDs 0.5W 75LM TRIDONIC/PHILIPS/BOKE Driver with DIP Switchable;
- Compatible with 95% Leading Trunking Systems Installed in the Past 25 Years;
- Ideal Retrofit Solution to Replace Existing 2x36W, 1x58W and 2x58W T5/T8 Fluorescent Lamp or LED Tube Light with and without Reflectors;
- 30/60/90/110/Double 25/25L/25R, 120 (with PC Cover) Optics Optional;
- IP40/IK08 Protection;
- Any Physical Modifications on the Existing Trunking System is not Necessary;
- Safety Chain Reserved for Labor Cost Saving and Double Safety Assurance;
- Various Intelligent Control: 1-10V, DALI, Motion Sensor, Daylight Sensor, Zigbee and Emergency;
- Single Phase (L/N/E) or Three Phase (L1/L2/L3/N/FG) Optional;
- L80/B10 @ 58.000h hours lifespan;
- Customization available for special projects;
Available Options
- Driver: TRIDONIC / PHILIPS / BOKE Non-SELV driver
- Controls and Dimming: 1-10V, DALI, Motion sensor, Daylight sensor, Zigbee and Emergency
- Beam angles: 30/60/90/110/Double 25/25L/25R, 120 (with PC Cover) Optics Optional
- Single Phase (L/N/E) or Three Phase (L1/L2/L3/N/FG) Optional;
Recommended Applications

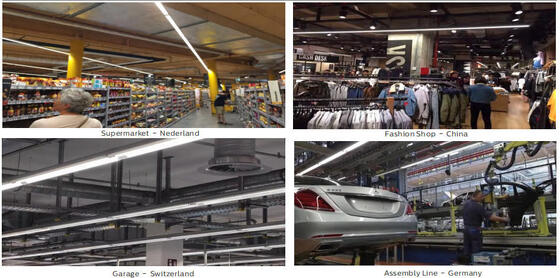

- Large-scale Retail Outlets;
- Industrial Halls;
- Warehouse Spaces;
- Factory Halls ;
- Other Semi-industrial Applications;
Technical Specifications
General System
| Housing Material |
Extruted aluminium according to the EN755 standard |
| Diffuser Material |
Extruded PC/PMMA according to UNE-EN ISO 21305-1:2020 standard, UV filter conditional (IK10) |
| Housing Color |
White (RAL9016), Other colors optional |
| Group Control |
3-Phase Switchable Optional, L1 /L2 /L3 can be changed by DIP Switch |
| LEDs Thermal Dissipation |
Through finless 6063 AL luminaire body, without conductive fluids. Passive convection dissipation ensuring thermal contact with LED modules through high-conductivity Lead-free solder paste |
| Lamp type |
LED Exchangeable |
| Light Outlet |
Direct |
| Recommended Mounted Height |
2 - 12 meters |
| Maintenance |
Driver / Lens Open / Close with screw |
| Driver |
Constant current with power adjustable via DIP switch, embedded in luminaire, pre-wired |
| Dimming Control |
ON-OFF | 1-10V dimming | DALI-2 | Mesh | Zigbee | Casambi |
| IP Rating |
IP40 |
| IK Rating |
IK08 |
| Protective Class |
Class I |
| Glow Wire |
850°C (Under 30s) |
| Cable Entry |
H05RN-F 3*2.5mm2 | H05RN-F 5*2.5mm2 (Max section 4.0mm2) |
| Installation |
Direct Replacement |
| Smart Function |
Emergency |
Electrical System
| Through-wiring |
3x2.5mm2/5x2.5mm2 + 2x1.5 mm2 dimming wire as stand |
| Main Voltage |
220~240VAC/ 50/60Hz, 180-264VDC |
| Power Factor (PF) |
≥0.93 |
| Total Harmonic Distortion (THD) |
＜10% |
| Output Type |
Non-SELV (non-isolated) |
| Flicker Factor |
＜1% |
| Stroboscopic Visibility Measure (SVM) |
＜0.4 |
| Perceptibility of Stroboscopic Effects (Pst) |
＜1 |
| Terminal Connection |
Loop-through wiring included, 5/7-pole WAGO connector |
| Luminaires Power |
B10A |
B16A |
C10A |
C16A |
| 75W |
18 |
29 |
26 |
42 |
Photometry System
| LEDs |
SMD2835 (0.5W) |
| CCT (Correlated Color Temperature) |
Single CCT (3000K | 4000K | 5000K | 5700K | 6500K)
3 CCT optional (3000-4000-5000K | 3000-4500-6000K | 4000-5000-6000K for choice)
|
| CRI (Color Rendering Index) |
>80Ra for standard (>90Ra for higher CRI available) |
| Photobiological Safety |
RG0 (exempt of risk) |
| EEC (Energy Efficiency Class) |
A++ |
| SDCM (Standard Deviation of Color Matching) |
＜5 (SDCM<3 Optional) |
| UGR (4H, 8H) |
24.9 (Cross) 23.4 (Longitudinal) |
| Beam Angle |

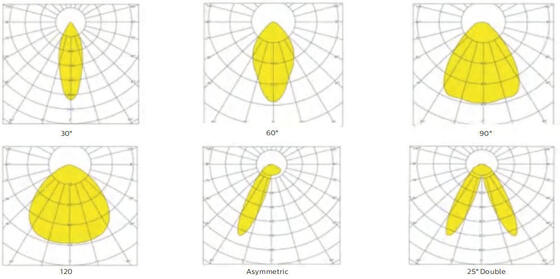

30° | 60° | 90° | 120° | Asymmetric 25° L | Asymmetric 25° R | 25° Double |
| Average Luminaire Useful Lifetime |
100,000 hours (L80B10) |
| Lumen Maintenance at e.o.l. |
>70% |
| Luminous Efficacy |
160LPW (PROLine) Optional |
| Product |
RM Linear LED Retrofit Module |
| Rated Power |
75W DIP (25~75W) |
| Lumens Delivered @ 5000K, CRI>80 (PRO) |
Max. 12,000lm |
Operation Conditions
| Operation Temperature / Humidity |
-20~ +50℃ (-4°F ~ 122°F) / 5~85% RH, not condensed |
| Storage Temperature / Humidity |
-40~ +60℃ (-40°F ~ 140°F) / 5~85% RH, not condensed |
| Average LED Useful Time L90B10 |
≥0.96 |
| Rated Nominal Lifetime (Tp <70℃) |
Up to 100,000H |
| Driver MTBF |
500,000H, MIL-HDBK-217F(25℃) |
| Vibration Resistant |
10~500Hz, 5G 12min / 1cycle, period for 72min. Each along X,Y,Z axes |
| Acoustic Noise |
＜25dB (30cm distance, Normal operation) |
| Guarantee |
5 Years (Extensible up to 7 years) |
Certifications
| Global Certificate |
ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium |
| Security Directives |
EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471 |
| EMC Directives |
EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384 |
| Other Directives |
IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11 |
* Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRI>80.
* Lighting beam, light intensity distribution and light efficiency examined in accordance with EN ISO 17025:2005 norm for EN13032 norm series and LM-79 norm.
* Up-to-date product info and general warranty terms available on our website www.DUALRAYS.com
* Detailed information on luminous fluxes and powers for individual indexes indicated on product data sheet.
* Values may be subject to change due to LED binning.
* Parameters in data sheet given for Ta=25°C, based on 4000K/80Ra, 10% efficiency higher with 70Ra

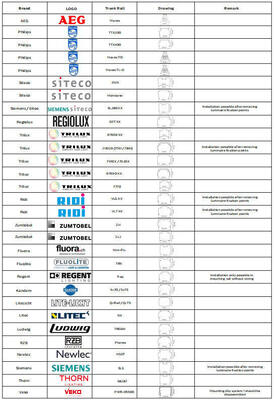

Compatible System List
Installation & Safety Instructions
- To avoid electric shock, ensure power supply is turned off before installation
- Lamp should be installed and operated by qualified electrician or technician in accordance with National Electrical Code and corresponding local codes
- Unpack and examine lamp carefully, report any damage and save all packing materials if any portion was damaged during transportation
- If the lamp is damaged, do not use it!
Manufacturer Statement
According to International Standard of LED luminaire, DUALRAYS formally claims that DUALRAYS LED Linear Light (Linear Retrofit Module) series products are only allowed to be applied to indoor or semi-outdoor neutral environment. DUALRAYS promises full warranty for the products. Any severe environment application including high/low temperature, high humidity, high salinity, high-ammonia etc. is not permitted without official confirmation from the manufacturer. If any misapplication occurs, the warranty policy is no longer guaranteed.
Company Capabilities
- Professional Team: >15 years experience, own factory, >10 engineers team, powerful production capacity and QC management system
- Reliable Brand: Established stable long-term cooperation with Europe customers, warehouse in Netherlands for better service
- DIALux Simulation: Our engineering team provides simulation services based on your application parameters
- Quality Standards: All LED luminaries comply with CE, RoHS standards with TUV, ENEC, VDE, SAA, C-Tick, LM79, LM80 certifications

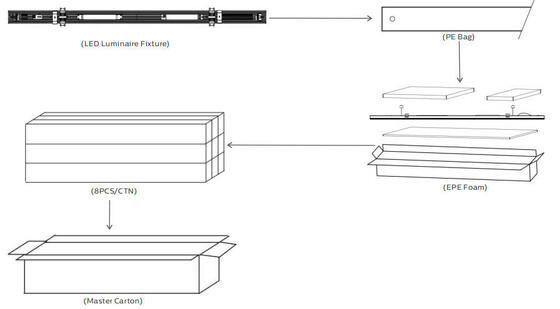

Shipping Information
For small orders, express shipping is recommended. For bulk orders, sea or train shipping (Europe destination) is most cost-effective but takes longer. For urgent orders, we suggest air freight to airport plus our shipping partner delivery to your door.
Frequently Asked Questions
Q1: What is the warranty for the TB7 LED Tubular light?
RE: 5 years warranty. If any quality problems on our side occur during this period, we will cover shipping costs and replacement.
Q2: What payment methods do you accept?
RE: We accept multiple payment methods including Western Union, PayPal, T/T, L/C. Standard payment for bulk orders is T/T: 30% in advance, 70% balance before shipment. Bank information provided in PI.
Q3: What is CRI?
RE: CRI (Color Rendering Index) indicates how accurately colors appear under the light. Higher CRI provides better color accuracy at higher cost. Standard CRI is >80Ra, with 90Ra available at higher cost.
Q4: Can I only buy the housing separately?
RE: We only supply complete luminaire fixtures, but SKD/CKD (Semi-Knocked Down/Completely Knocked Down) options are available.
Q5: Is there cheap shipping cost to import to our country?
RE: For small orders, express shipping is recommended. For bulk orders, sea or train shipping (Europe destination) is most cost-effective. For urgent orders, air freight to airport plus delivery service is suggested.
Q6: Can we get support if we have our own market position?
RE: Please inform us of your detailed market requirements. We will discuss and propose helpful suggestions to find the best solution for you.
Q7: What dimming functions are available?
RE: DALI, PIR, 1-10V dimming available. Built-in daylight sensor available for intelligent control options.
Q8: What are the applications of your TB7 LED Tubular light?
RE: Applications include: Replacement for fluorescent NCF; Food Processing Plants; Chemical Facilities; Animal Stable Warehouses; Car Washing Places; Outdoor & Indoor Locations.
Contact Information
Welcome to contact us for more information. Visit our official website www.DUALRAYS.com or email us at info@DUALRAYS.com to get the latest information and support.
Learn More About DUALRAYS
Thank you for choosing DUALRAYS LED luminaires. We regard quality as our primary marketing philosophy in the design and packaging of all our products. We declare that all products are professionally tested and comply with strict quality standards. Our professional after-sales service team supports our customers. If you encounter any quality problems caused by product defects during the guarantee period, contact us freely. When confirmed by our QC Department, we will immediately exchange or maintain products free of charge. Shenzhen Dualrays Optoelectronics Co., LIMITED serves you with heart and soul!
