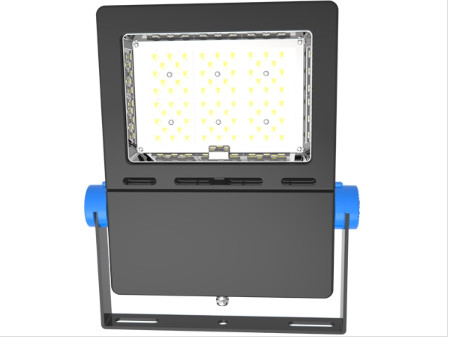

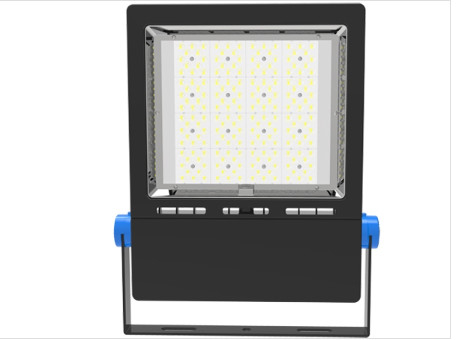

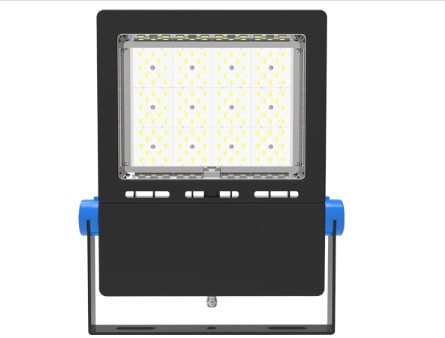

Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65

Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65

  • Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65
  • Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65
  • Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65
Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-FL050-CG2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Power: 50-300W Efficiency: 135lm/w
Material: Aluminium And Glass CCT: 3000/4000/5700/6500K±200K
Power Factor: 0.95 IP Rating: IP66
High Light:

IP66 SMD LED Floodlight

,

135lm/w SMD LED Floodlight

,

IP66 Round Flood Light

Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court



Integrated Circuit Relay 500w For Tennis Court 5 Years Warranty Led Sport Ground 1000w Round Flood Light

Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65 0

Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65 1



Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65 2

Model No.
DR-FL050-CGXX DR-FL100-CGXX DR-FL150-CGXX DR-FL200-CGXX DR-FL300-CGXX
System Watts/W
50W 100W 150W 200W
300W
System Efficiency/LPW
120~125LPW
Lumen Output/lm
6.500±5% 12.500±5% 18.750±5% 25.000±5% 37.500±5%
Rated Input Voltage/V
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
SMD3030
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR
<25
Surge Protection
6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
Sosen,Meanwell ELG / HLG Optional
IP Rating
IP65
Dimming(Optional)
1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional) Motion Sensor
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+Toughened Glass
Lifespan/hrs
62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available



> Precision Integrated Die-casting ADC12 AL,Excellent Thermal Conductivity;

> High Brightness LUMILEDS LUXEON SMD3030 2D LEDs, SOSEN/Meanwell ELG/HLG Driver;

> Built-in Plug and Play Motion Sensor with Compact Structure;

> IP65 / IK10 Protection;

> L70/B20 @ 62.000h;



Application

> Airports & Harbors

> Billboard illumination

> Large recreational sports facilities

> Industrial areas & Landscape buildings

> Roundabouts and motorway junctions

Durable Dust Proof Led Lights Vapor Proof Led Light BOKE Driver AC 100~277V

> Airports & Harbors
> Billboard illumination
> Large recreational sports facilities
> Industrial areas & Landscape buildings
> Roundabouts and motorway junctions
Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65 4
Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65 5

Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65 6Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65 7Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65 8Integrated Circuit IP66 Round SMD LED Floodlight For Tennis Court IP65 9
