| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-FL050-CG2 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| Power: | 50-300W | Efficiency: | 135lm/w |
|---|---|---|---|
| Material: | Aluminium And Glass | CCT: | 3000/4000/5700/6500K±200K |
| Power Factor: | 0.95 | IP Rating: | IP66 |
| LED Driver: | Sosen,Meanwell ELG/HLG Driver | Beam Angle: | Symmetrical 30°/60°/90°/120° |
| LED Chips: | LUMILEDS LUXEON SMD3030 | ||
| High Light: | 100V SMD LED Floodlight,240V SMD LED Floodlight,240V LED Garden Flood Lights |
||

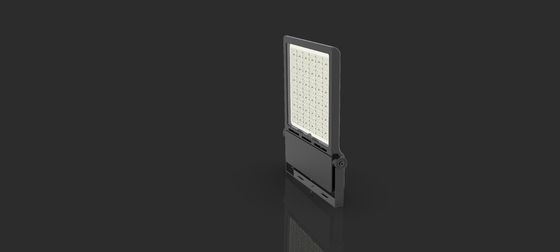

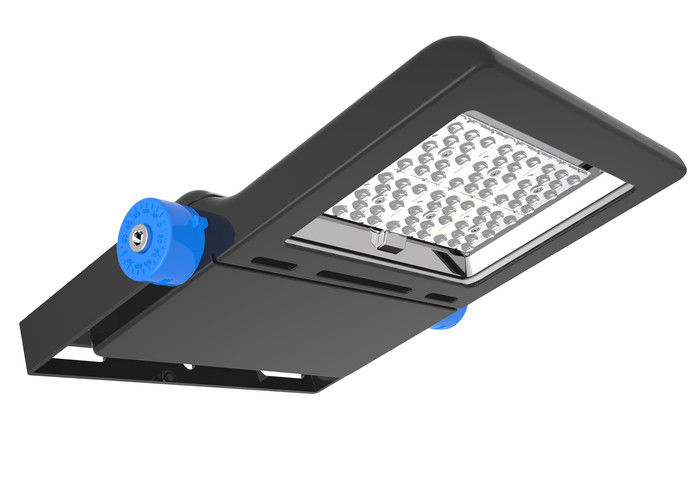

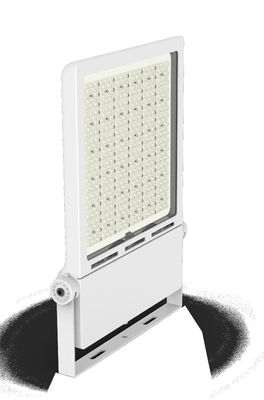

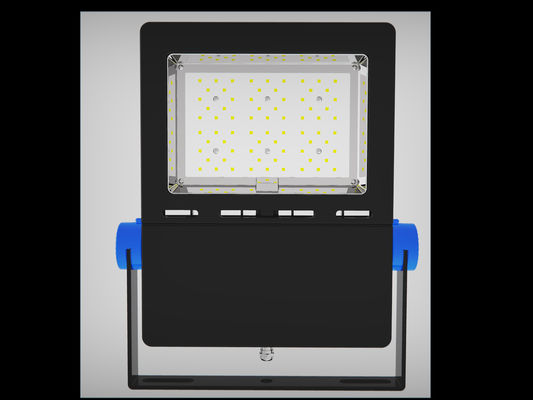

50W-300W LED Floodlight 100V 240V HLG Driver IP65 SMD3030 For Garden Sports Field
Application
> Airports & Harbors
> Billboard illumination
> Large recreational sports facilities
> Industrial areas & Landscape buildings
> Roundabouts and motorway junctions
|
Model No.
|
DR-FL050-CGXX | DR-FL100-CGXX | DR-FL150-CGXX | DR-FL200-CGXX | DR-FL300-CGXX |
|
System Watts/W
|
50W | 100W | 150W | 200W |
300W
|
|
System Efficiency/LPW
|
120~125LPW | ||||
|
Lumen Output/lm
|
6.500±5% | 12.500±5% | 18.750±5% | 25.000±5% | 37.500±5% |
|
Rated Input Voltage/V
|
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
|
LEDs Light Source
|
SMD3030 | ||||
|
SDCM
|
<5 | ||||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
|
CRI/Ra
|
>70Ra (>80Ra for Option) | ||||
|
Power Factor
|
>0.95 | ||||
|
THD
|
<10% | ||||
|
Beam Angle(Optional)
|
Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional | ||||
|
UGR
|
<25 | ||||
|
Surge Protection
|
6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | ||||
|
LED Driver
|
Sosen,Meanwell ELG / HLG Optional | ||||
|
IP Rating
|
IP65 | ||||
|
Dimming(Optional)
|
1-10V, DALI,PWM,Zigbee for Option | ||||
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | ||||
| Sensor (Optional) | Motion Sensor | ||||
|
Protection Class
|
ClassⅠ | ||||
|
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | ||||
|
Material
|
Aluminum+Toughened Glass | ||||
|
Lifespan/hrs
|
62.000 Hrs (Ta=30℃@L70) | ||||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | ||||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | ||||
| Switching Cycles | 100,000 Times | ||||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
