Place of Origin: | Shenzhen,China |
Brand Name: | DUALRAYS |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Model Number: | DR-HB150-DGXP |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | Please inquiry for latest price |
Packaging Details: | Netural Package/OEM and ODM Package Available |
Delivery Time: | 5-15 Bussiness Day |
Payment Terms: | L/C, T/T, Western Union, paypal |
Supply Ability: | 50000PCS/Month |
Input Voltage: | AC100~277v 50/60Hz | Driver: | Meanwell/Sosen |
---|---|---|---|
Efficiency: | 140LPW | Power Factor: | 0.95 |
CCT: | WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K | Guarantee: | 5 Years |
CRI: | >70Ra/>80Ra | Material: | Aluminium Alloy 6063+PC/toughen Glass |
Package: | Normal Export Carton Box | Applications: | Factory/Warehouse/Workshop/Exhibition Center... |
High Light: | 150W UFO LED High Bay Light,140LPW UFO LED High Bay Light,SMD3030 Pluggable Motion Sensor Light |

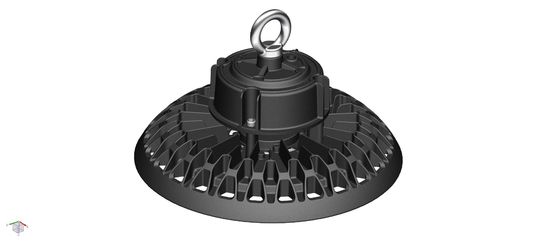

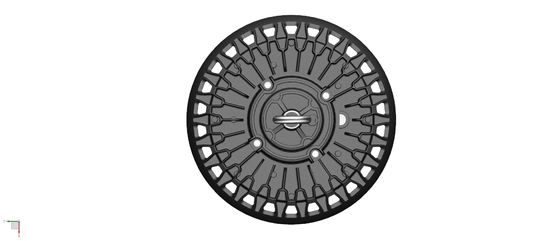

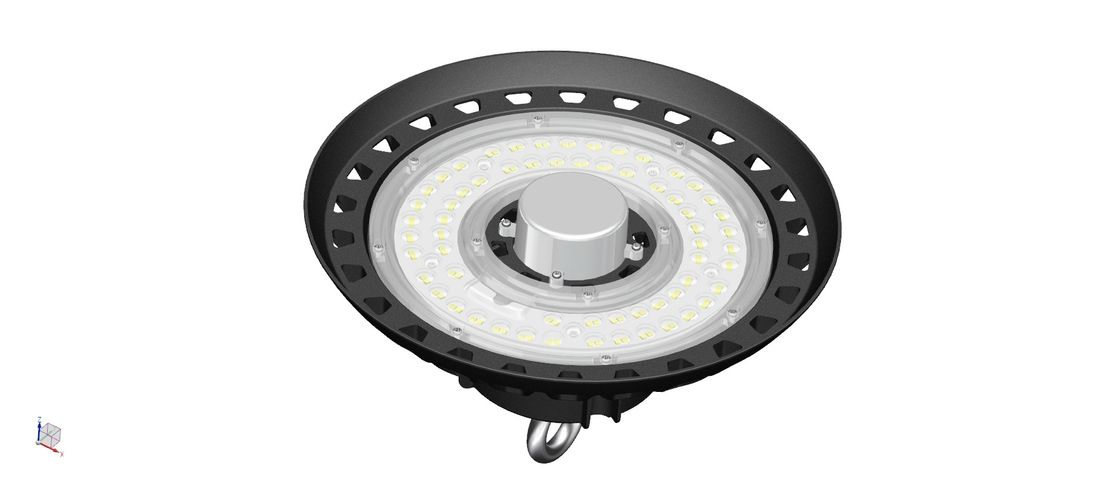

LED UFO Hgh Bay Light Pluggable Motion Sensor 150W IP65
Model No. | DR-HB100-DGXP | DR-HB150-DGXP | DR-HB200-DGXP | DR-HB240-DGXP |
System Watts/W | 100W | 150W | 200W | 240W |
System Efficiency/LPW | 140LPW | |||
Lumen Output/lm | 14.000±5% | 21.000±5% | 28.000±5% | 33.600±5% |
Rated Input Voltage/V | AC100~277V, 50/60Hz | |||
LEDs Light Source | SMD3030 | |||
SDCM | <5 | |||
CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||
CRI/Ra | >70Ra (>80Ra for Option) | |||
Power Factor | >0.95 | |||
THD | <10% | |||
Beam Angle(Optional) | 60°/90°/120° | |||
UGR | <25 | |||
Surge Protection | 3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||
LED Driver | Meanwell HBG/ELG/HLG,Sosen | |||
IP Rating | IP65 | |||
Dimming(Optional) | 0/1-10V/DALI/Zigbee | |||
Sensor(Optional) | Motion Sensor,Daylight Sensor | |||
Emergency(Optional) | Available (30W @ 3Hrs for Standard) | |||
Protection Class | ClassⅠ | |||
Finishing Color(Optional) | Black RAL9017(Standard) / White RAL9016 Optional | |||
Material | Aluminum+PC | |||
Lifespan/hrs | 70.000 Hrs (Ta=30℃@L70) | |||
Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | |||
Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | |||
Installation(Optional) | Loop Hanging, Ceiling Mounting, Wall Mounting | |||
Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
A / mm
|
Φ290
|
Φ340
|
Φ380
|
Φ380
|
|
B / mm
|
171
|
181
|
183
|
183
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
DR-HB100-DGXP
|
3.5
|
355*350*165
|
3.9
|
1PCS/CTN
|
DR-HB150-DGXP
|
3.6
|
380*380*150
|
4.1
|
1PCS/CTN
|
DR-HB200-DGXP
|
4.8
|
415*410*175
|
5.5
|
1PCS/CTN
|
DR-HB240-DGXP
|
5.1
|
415*410*175
|
5.9
|
1PCS/CTN
|
FAQ
Q1: Detailed explanation of the installation process of LED high bay lights!
RE:1. Before installation, check the integrity of LED high bay lights and the integrity of accessories.
2. Installation must require the installer to have a professional electrician certificate.
3. The wire on the LED light can be taken out of the drilled hole, and the wire behind the light can be fixed with a wire clamp to ensure a firm fixation
4. Ensure that the power cord of the lamp has sufficient length, without tension or tangential force.
5. Ensure the distance between the product and flammable materials.
In short, after the installation is completed, a power-on test is required. If some lights cannot be turned on, you need to check the circuit or light problems. After ensuring that all lamps are normally lit, complete the installation of led industrial and mining lamps.
Q2:Introduction to the scope and characteristics of LED high bay lights!
RE:The application range and characteristics of LED high bay lights: widely used in dangerous environments such as petroleum exploration, oil refining, chemical industry, military industry, and general lighting and operating lighting in places such as land oil platforms and tankers; generally suitable for places with high protection requirements and high humidity.
Performance characteristics: High-efficiency and energy-saving LED is the light source with higher luminous efficiency so far, which can save 50%-70% of electricity compared with traditional light sources under the same illuminance, that is, use low-power LED lamps instead of traditional high-power lamps to achieve the same lighting The effect is a better choice to achieve energy saving and emission reduction; ultra-short life LED is a solid-state light source, without filament fusing, electrode aging and other defects, and the average life span exceeds 50,000 hours. It is the light source with the shortest lifespan so far, and it can be used temporarily without maintenance; it is safe and reliable. Led adopts DC low-voltage power supply, and its heat output is much lower than traditional electric light sources. It does not generate high-frequency electromagnetic field and does not cause electromagnetic interference to surrounding equipment; LED adopts ring Oxygen resin packaging, shock-resistant, vibration-resistant, and not easy to break; green LED emission spectrum is completely in the visible light band, no ultraviolet radiation, no mercury, no heavy metal pollution; no fuses, broken glass, flammable, toxic substances leakage and other environmental risks.
The main feature of LED high bay lights is energy saving and emission reduction. In today's society, green performance is very important. The LED high bay lights produced by Jinghong Lighting are still being continuously improved and optimized. The purpose is to better promote high bay lights in various fields. Through continuous efforts, LED mining lights will usher in a new era in the future. The main purpose of miner's lamp is to carry out production operations in factories and mines. In addition to ordinary lighting in normal environments, miner's lamps can also be used in some special environments, such as explosion-proof workshops or mines and other corrosion-resistant places, with a wide range of applications.
