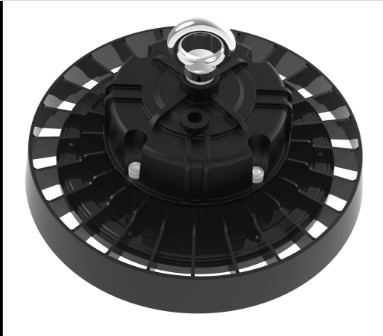

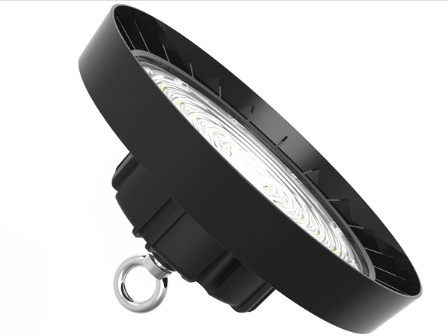

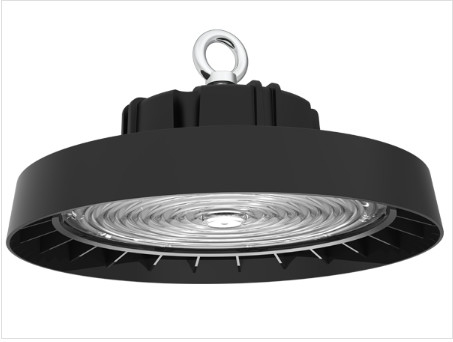

SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle

SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle

  • SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle
  • SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle
  • SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle
SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS(OEM available)
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-HB150-CGXP
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs for Sample Order welcome
Price: Please inquiry for updated price
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union, paypal
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Input Voltage: AC100~277v 50/60Hz Driver: Dualrays Built-in
LED Source: SMD3030 CRI: >70Ra/>80Ra
Power Factor: 0.95 CCT: WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K
Life Span: >50,000 H Guarantee: 5 Years
Material: Die-Cast Aluminum + Tempered Glass/PC Package: Normal Export Carton Box
High Light:

SMD3030 LED UFO High Bay

,

IK08 LED UFO High Bay

,

140LPW High Bay Led Light Bulbs

LED UFO high bay light 200W 140LWP IP65 excellent heat dissipation



SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 0

SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 1
Options:

> Driver: DUALRAYS Non-isolated Driver;
> Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;
> Reflector : PC reflector / Al reflector;
> Lens : 60°/90° (with Pearl Lens)/120° (with Toughened Glass Cover) beam angle optional;
> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 2
> Factories / Warehouses / Supermarket
> Exhibitions / Showrooms / Animal Farm
> Barns and Riding Halls / Logistic Center
> High Rooms and Halls / Stadium / Chemical Plant
> Traditional lamp replacement


SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 3

Model No.
DR-HB100-CGXP DR-HB150-CGXP DR-HB200-CGXP DR-HB240-CGXP
System Watts/W
100W 150W 200W 240W
System Efficiency/LPW
140LPW
Lumen Output/lm
14.000±5% 21.000±5% 28.000±5% 33.600±5%
Rated Input Voltage/V
AC100~277V, 50/60Hz
LEDs Light Source
SMD3030
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
60°/90°/120°
UGR
<25
Surge Protection
3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
DUALRAYS Own-developed High PF Non-isolated Driver
IP Rating
IP65
Dimming(Optional)
0/1-10V/Zigbee
Sensor(Optional)
Motion Sensor,Daylight Sensor
Emergency(Optional)
Available (30W @ 3Hrs for Standard)
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs
60.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)
Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available





SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 4

Character/Power
100W
150W
200W
240W
SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 5
A / mm
Φ250
Φ300
Φ345
Φ345
B / mm
178
181
183
183


SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 6

SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 7

SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 8
SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 9

SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 10
SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 11
SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 12SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 13

DALI Device
SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 14

DALI Intelligent Control Diagram
SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 15 SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 16


DALI Intelligent Control Operator Interface
SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 17


SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 18
SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 19
SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 20
SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 21

SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 22

Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-HB100-CGXP
2.2
320*320*165
2.9
1PCS/CTN
DR-HB150-CGXP
2.4
355*350*165
3.1
1PCS/CTN
DR-HB200-CGXP
2.5
410*410*175
3.3
1PCS/CTN
DR-HB240-CGXP
2.9
410*410*175
3.8
1PCS/CTN





FAQ



Q1:What are the advantages of LED high bay lights?
RE:According to the light source, high bay lights can be divided into traditional light source high bay lights (such as sodium lamp high bay lights, mercury lamp high bay lights, etc.) and LED high bay lights.

Compared with traditional high bay lights, LED high bay lights have great advantages:

1 LED high bay light display index high RA>70

2 LED industrial and mining lights are more efficient and more energy-efficient. The 100W LED industrial and mining lights can replace the traditional 250W traditional industrial and mining lights.

3 Traditional light sources have the disadvantage of high lamp temperature, which can reach 200-300 degrees. The LED itself is a cold light source, the temperature of the lamp is lower, and it is safer and belongs to the cold drive.
4 In the continuous innovation of LED high bay lights, the latest fin radiator high bay lights have a more reasonable radiator design, which greatly reduces the weight of industrial and mining lamps and reduces the overall weight of 80W LED high bay lights to below 4KG. Perfectly solve the heat dissipation problem of 80-300W LED high bay lights.



SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 23
SMD3030 LED UFO High Bay 200w Led IP65 IK08 AC100-277V Beam Angle 24
