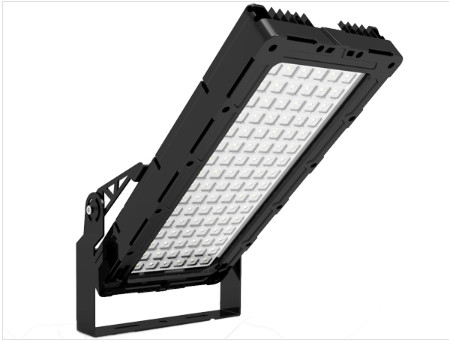

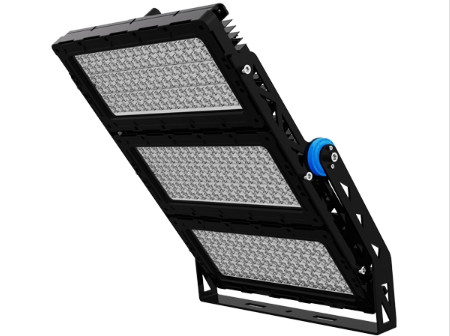

90000lm Sport LED Flood Light TUV SAA 160lm/W 600W

90000lm Sport LED Flood Light TUV SAA 160lm/W 600W

  • 90000lm Sport LED Flood Light TUV SAA 160lm/W 600W
  • 90000lm Sport LED Flood Light TUV SAA 160lm/W 600W
90000lm Sport LED Flood Light TUV SAA 160lm/W 600W
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-FL600-DG1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Power: 600W Efficiency: 150~160LPW
Lumen: 90000lm Surge Protection: 4~6KV SPD Built In Driver, Exterior SPD 20KV Meanwell Optional
CRI: >83Ra Beam Angle: 20°/30°/60°/90°/140*60° Optional
LED Driver: Meanwell HLG LED Chips: LUMILEDS SMD5050
High Light:

600W Sport LED Flood Light

,

160lm/w Sport LED Flood Light

,

90000lm Waterproof Led Flood Lights

DUALRAYS 600W SP5 Series Sport Flood Light TUV SAA Cert 160lm/w Efficiency

90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 0
90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 1

Options:
> Driver: Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 20°/30°/60°/90°,Asymmetrical 140*60° optics optional;
> Aiming Device: Laser Pointer;

90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 2
> Logistics areas (Ports)
> Stadiums and Racing tracks
> Public squares
> Apron lighting (Airports), Parking and Industrial areas
> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 3
Model No.
DR-SPL600-EGXP
System Watts/W
600W
System Efficiency/LPW
150~160LPW
Lumen Output/lm
90.000±5%
Rated Input Voltage/V
AC100~277V, 50/60Hz
LEDs Light Source
SMD5050
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
20°/30°/60°/90°/140*60° Optional
UGR
<25
Surge Protection
4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
Meanwell ELG/HLG
IP Rating
IP65
Dimming(Optional)
1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+PC
Lifespan/hrs
70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 4
90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 5
90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 6
90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 7
90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 8
90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 9
90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 10

90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 11
90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 12

90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 13

90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 14
90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 15
90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 16

90000lm Sport LED Flood Light TUV SAA 160lm/W 600W 17
Dualrays 50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
Q1: What is colour temperature?
RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:
Warm white = 3000±200K
Natural white = 4000±200K
Pure white = 5000±200K
Cool white = 5700±200K

Q2: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.



Q3: Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.
