Place of Origin: | Shenzhen,China |
Brand Name: | DUALRAYS(OEM available) |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Model Number: | DR-HB150-CGXP |
Minimum Order Quantity: | 1pcs for Sample Order welcome |
---|---|
Price: | Please inquiry for updated price |
Packaging Details: | Netural Package/OEM and ODM Package Available |
Delivery Time: | 5-15 Bussiness Day |
Payment Terms: | L/C, T/T, Western Union, paypal |
Supply Ability: | 50000PCS/Month |
Input Voltage: | AC100~277v 50/60Hz | Driver: | Dualrays Built-in |
---|---|---|---|
LED Source: | SMD3030 | CRI: | >70Ra/>80Ra |
Power Factor: | 0.95 | CCT: | WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K |
Life Span: | >50,000 H | Guarantee: | 5 Years |
Material: | Die-Cast Aluminum + Tempered Glass/PC | Package: | Normal Export Carton Box |
High Light: | 150W LED UFO High Bay Light,IP65 LED UFO High Bay Light,SMD3030 Led High Bay Lamp |

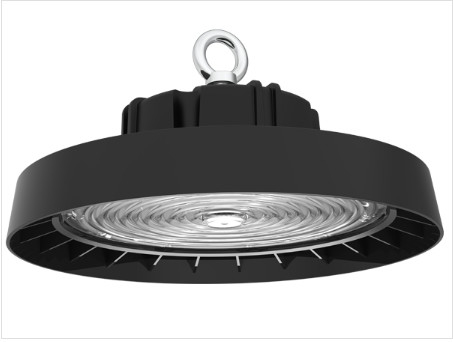

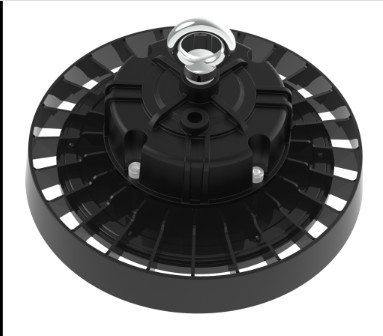

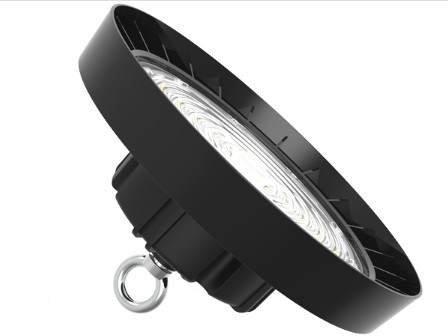

LED UFO high bay light 200W 140LWP IP65 excellent heat dissipation
Model No.
|
DR-HB100-CGXP | DR-HB150-CGXP | DR-HB200-CGXP | DR-HB240-CGXP |
System Watts/W
|
100W | 150W | 200W | 240W |
System Efficiency/LPW
|
140LPW | |||
Lumen Output/lm
|
14.000±5% | 21.000±5% | 28.000±5% | 33.600±5% |
Rated Input Voltage/V
|
AC100~277V, 50/60Hz | |||
LEDs Light Source
|
SMD3030 | |||
SDCM
|
<5 | |||
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||
CRI/Ra
|
>70Ra (>80Ra for Option) | |||
Power Factor
|
>0.95 | |||
THD
|
<10% | |||
Beam Angle(Optional)
|
60°/90°/120° | |||
UGR
|
<25 | |||
Surge Protection
|
3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||
LED Driver
|
DUALRAYS Own-developed High PF Non-isolated Driver | |||
IP Rating
|
IP65 | |||
Dimming(Optional)
|
0/1-10V/Zigbee | |||
Sensor(Optional)
|
Motion Sensor,Daylight Sensor | |||
Emergency(Optional)
|
Available (30W @ 3Hrs for Standard) | |||
Protection Class
|
ClassⅠ | |||
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | |||
Material
|
Aluminum+PC (Toughened Glass Cover Optional) | |||
Lifespan/hrs
|
60.000 Hrs (Ta=30℃@L70) | |||
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | |||
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | |||
Installation(Optional)
|
Loop Hanging, Ceiling Mounting, Wall Mounting | |||
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
A / mm
|
Φ250
|
Φ300
|
Φ345
|
Φ345
|
|
B / mm
|
178
|
181
|
183
|
183
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
DR-HB100-CGXP
|
2.2
|
320*320*165
|
2.9
|
1PCS/CTN
|
DR-HB150-CGXP
|
2.4
|
355*350*165
|
3.1
|
1PCS/CTN
|
DR-HB200-CGXP
|
2.5
|
410*410*175
|
3.3
|
1PCS/CTN
|
DR-HB240-CGXP
|
2.9
|
410*410*175
|
3.8
|
1PCS/CTN
|
FAQ
Q1:What are the classifications of commonly used electric light sources for LED high bay lights?
RE:Any equipment that can convert other forms of energy into light energy and then supply luminous flux is collectively referred to as a light source, and the equipment that can convert electrical energy into light energy by the LED high bay lamp manufacturer and then supply luminous flux is called an electric light source , Commonly used electric light sources are: ① thermoluminescent electric light sources (such as incandescent lamps, tungsten halogen lamps, etc.), ② gas discharge luminous electric light sources (such as fluorescent lamps, mercury lamps, sodium lamps, metal halide lamps, etc.), ③ solid light-emitting lamps Light source (such as LED and electroluminescence equipment, etc.). Among the three types of electric light sources, the luminous efficiency of various electric light sources is quite different. Thermoluminescent electric light sources such as incandescent lamps use the Stephen-Boltzmann law : The higher the temperature of the object, the more energy it radiates.
This can be shown by the formula E=μξT4, where E indicates the total radiation energy per unit area and unit time of the object at temperature T, and μ indicates the Stephen-Boltzmann constant (μ=5.6697×10-12W/(cm2· K4)), ξ indicates the specific emissivity, that is, the ratio of the radiant power of the surface of the object to the radiant power of the black body, and T indicates the absolute temperature of the object. The electric light source made by the principle of thermoluminescence is simple and low-cost, but the luminous efficiency is low. The rest of the energy is consumed in the form of heat.
