Name: Stadium IK08 PWM 150LPW SMD5050 LED Sports Floodlights
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-SPL600-FGXP
Availability: InStock

Home Products LED Moisture-proof Lamp

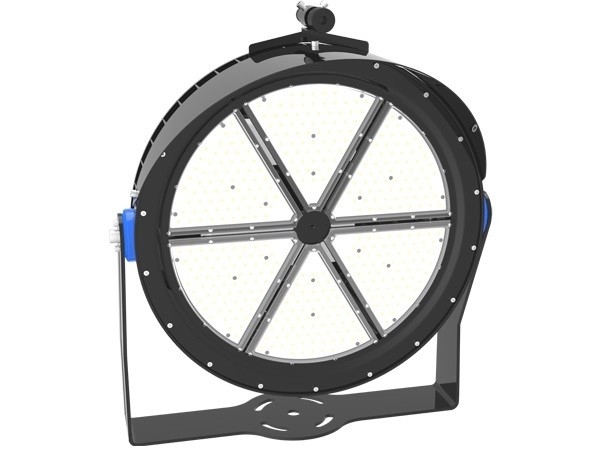

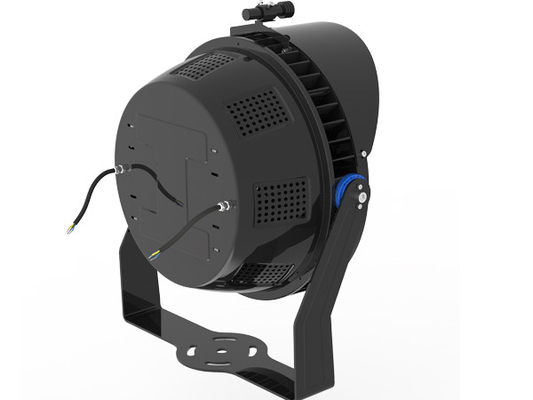

Stadium IK08 PWM 150LPW SMD5050 LED Sports Floodlights

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Dualrays Optoelectronics
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-SPL600-FGXP

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	T/T, L/C,Paypal, D/A
Supply Ability:	1000000PCS/Month

Contact Now

Detailed Product Description

SDCM:	<5	UGR:	<25
Protection Class:	Class Ⅰ	Material:	Aluminum +PC
Life Time:	≥70000hrs	Dimming Optional:	1-10V/DALI/PWM/Zigbee For Option
Highlight:	SMD5050 LED Sports Floodlights , 150LPW LED Sports Floodlights , IK08 PWM Led Stadium Floodlights

Dualrays 150LPW SMD 5050 LED Sports Floodlights With Built-in Plug and Play Motion Sensor

Stadium IK08 PWM 150LPW SMD5050 LED Sports Floodlights 0

> Precision Integrated Die-casting Process,Excellent Thermal Conductivity?
> High Brightness LUMILEDS LUXEON SMD5050 LEDs, Meanwell HLG / ELG Driver;
> Built-in Plug and Play Motion Sensor with Compact Structure;
> IP65 / IK08 Protection;
> Symmetrical 30°/60°/90° beam angle optional;
> Corrosive Resistant Powder Coated Finish;
> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;
> 360°Adjustable Supporting Fixture;
> Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;
> No UV or IR and completely mercury free;
> L70/B20 @ 70.000h;
> Customized supported for special projects;

Options:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 30°/60°/90° beam angle optional;

> Aiming Device: Laser Pointer;

> Multiple and multipurpose sports facilities and arenas

> Stadiums and Racing tracks

> Public squares

> Outdoor arenas

> Indoor sports arenas and halls

Model No.	DR-SPL300-FGXP	DR-SPL400-FGXP	DR-SPL600-FGXP	DR-SPL800-FGXP
System Watts/W	300W	400W	600W	800W
System Efficiency/LPW	150LPW
Lumen Output/lm	45.000±5%	60.000±5%	90.000±5%	120.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	30°/60°/90°
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	300W	400W	600W	800W
A / mm	Ø445	Ø445	Ø537	Ø537
B / mm	321	321	373	373

Stadium IK08 PWM 150LPW SMD5050 LED Sports Floodlights 7

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-FGXP	12.4	610510250	13.8	1PCS/CTN
DR-SPL400-FGXP	12.9	610510250	14.7	1PCS/CTN
DR-SPL600-FGXP	25.3	890710275	27.6	1PCS/CTN
DR-SPL800-FGXP	25.9	890710275	28.8	1PCS/CTN

Stadium IK08 PWM 150LPW SMD5050 LED Sports Floodlights 18

Stadium IK08 PWM 150LPW SMD5050 LED Sports Floodlights 19

Stadium IK08 PWM 150LPW SMD5050 LED Sports Floodlights 20

Stadium IK08 PWM 150LPW SMD5050 LED Sports Floodlights 21
