Place of Origin: | Shenzhen,China |
Brand Name: | DUALRAYS |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Model Number: | DR-HB150-DGXP |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | Please inquiry for latest price |
Packaging Details: | Netural Package/OEM and ODM Package Available |
Delivery Time: | 5-15 Bussiness Day |
Payment Terms: | L/C, T/T, Western Union, paypal |
Supply Ability: | 50000PCS/Month |
Input Voltage: | AC100~277v 50/60Hz | Driver: | Meanwell/Sosen |
---|---|---|---|
Efficiency: | 140LPW | Power Factor: | 0.95 |
CCT: | WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K | Guarantee: | 5 Years |
CRI: | >70Ra/>80Ra | Material: | Aluminium Alloy 6063+PC/toughen Glass |
Package: | Normal Export Carton Box | Applications: | Factory/Warehouse/Workshop/Exhibition Center... |
High Light: | 150W LED UFO High Bay,140LPW LED UFO High Bay,Pluggable Motion Sensor UFO Light |

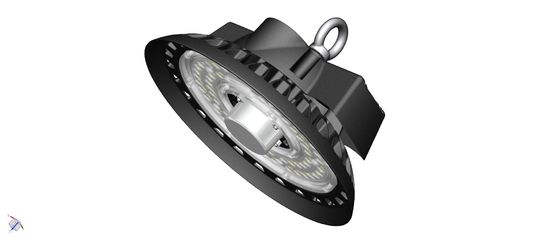

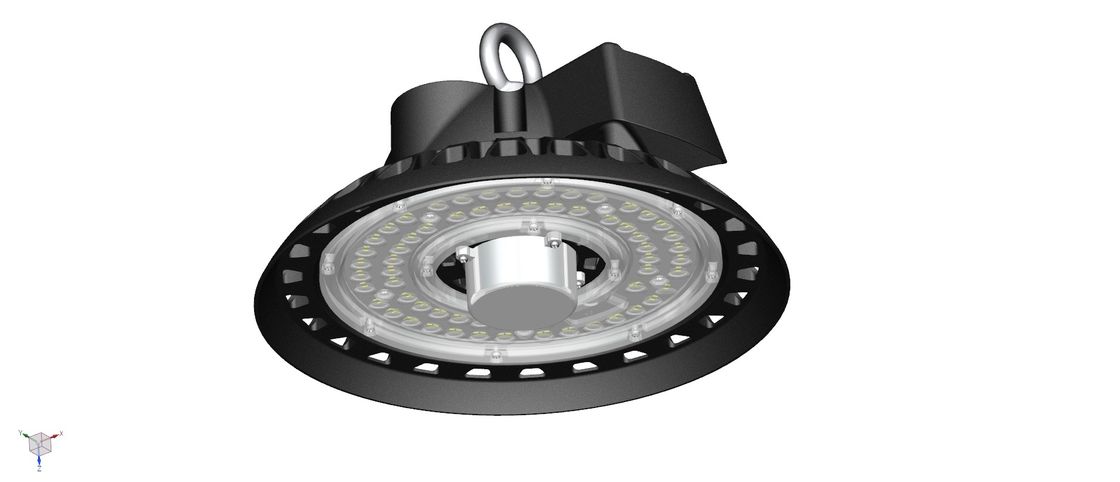

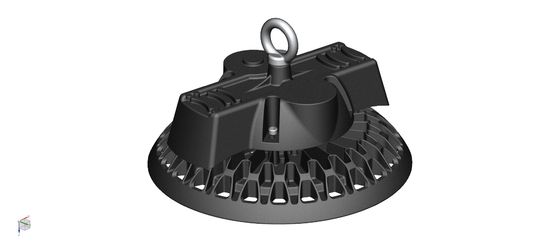

LED UFO Hgh Bay Light Pluggable Motion Sensor 150W IP65
DUALRAYS HB3 and HB5 UFO High Bay User Manual.pdf
Model No. | DR-HB100-DGXP | DR-HB150-DGXP | DR-HB200-DGXP | DR-HB240-DGXP |
System Watts/W | 100W | 150W | 200W | 240W |
System Efficiency/LPW | 140LPW | |||
Lumen Output/lm | 14.000±5% | 21.000±5% | 28.000±5% | 33.600±5% |
Rated Input Voltage/V | AC100~277V, 50/60Hz | |||
LEDs Light Source | SMD3030 | |||
SDCM | <5 | |||
CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||
CRI/Ra | >70Ra (>80Ra for Option) | |||
Power Factor | >0.95 | |||
THD | <10% | |||
Beam Angle(Optional) | 60°/90°/120° | |||
UGR | <25 | |||
Surge Protection | 3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||
LED Driver | Meanwell HBG/ELG/HLG,Sosen | |||
IP Rating | IP65 | |||
Dimming(Optional) | 0/1-10V/DALI/Zigbee | |||
Sensor(Optional) | Motion Sensor,Daylight Sensor | |||
Emergency(Optional) | Available (30W @ 3Hrs for Standard) | |||
Protection Class | ClassⅠ | |||
Finishing Color(Optional) | Black RAL9017(Standard) / White RAL9016 Optional | |||
Material | Aluminum+PC | |||
Lifespan/hrs | 70.000 Hrs (Ta=30℃@L70) | |||
Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | |||
Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | |||
Installation(Optional) | Loop Hanging, Ceiling Mounting, Wall Mounting | |||
Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
A / mm
|
Φ290
|
Φ340
|
Φ380
|
Φ380
|
|
B / mm
|
171
|
181
|
183
|
183
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
DR-HB100-DGXP
|
3.5
|
355*350*165
|
3.9
|
1PCS/CTN
|
DR-HB150-DGXP
|
3.6
|
380*380*150
|
4.1
|
1PCS/CTN
|
DR-HB200-DGXP
|
4.8
|
415*410*175
|
5.5
|
1PCS/CTN
|
DR-HB240-DGXP
|
5.1
|
415*410*175
|
5.9
|
1PCS/CTN
|
FAQ
Q1: What are the obvious advantages of LED high bay lights compared to energy-saving lamps?
RE: 1. The power consumption of general energy-saving lamps is relatively large, which is more than three times that of LED high bay lamps. In terms of energy conservation and environmental protection, energy-saving lamps are no longer up to the age.
LED high bay light
2. General energy-saving lamps contain mercury elements, and damage to the bulbs will affect people’s safety.
3. The average lifespan of energy-saving lamps is only 1 year, while LED high bay lamps can reach 5W hours.
4. Generally, energy-saving lamps emit only white and warm colors, while LED high bay lights are all solid luminous bodies, solid cold light sources, and luminous colors are colorful, such as: white, led high bay lights yellow, blue, etc.
5. LED high bay lights are energy-saving and environmentally friendly, shockproof, waterproof, miniature, high brightness, easy to dimming and other advantages...
It is not difficult to see that the advantages of LED high bay lamps will be greatly developed in the near future, gradually replacing energy-saving lamps.
