| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-FL600-EGXP |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| Color Index: | >80Ra/>70Ra | Power Factor: | >0.95 |
|---|---|---|---|
| Warranty: | 5 Years | Power Supply: | SOSEN/Meanwell |
| Protection: | IP65; IK08 | Material: | Aluminium Alloy 6063+PC |
| Operation Temperature: | -40℃--50℃ | Guarantee: | 5 Years |
| High Light: | IK08 LED Ground Flood lights,140LPW LED Ground Flood lights,Aluminium 6063 Sports LED Floodlights |
||

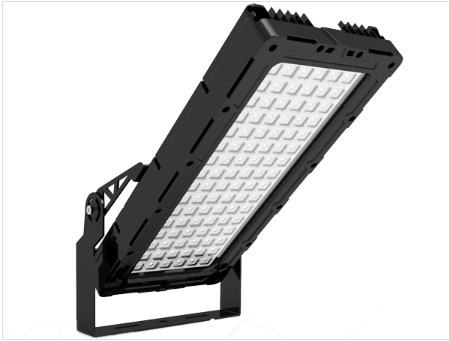

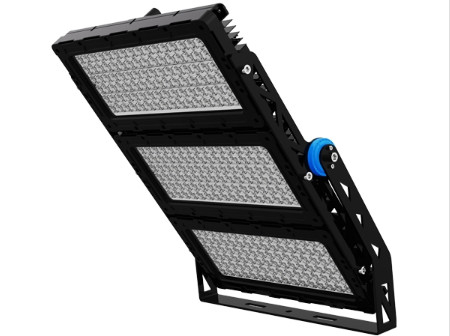

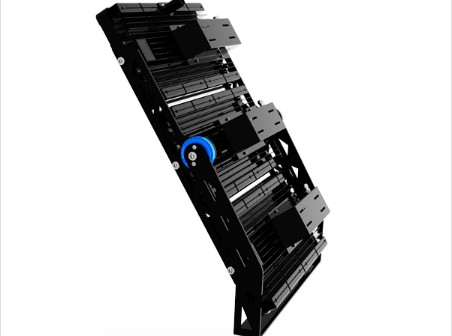

IP65 IK08 LED Sports Ground Flood lights High power
|
Model No.
|
DR-SPL300-DGXX | DR-SPL600-DGXX | DR-SPL900-DGXX | DR-SPL1200-DGXX | DR-SPL1500-DGXX | DR-SPL1800-DGXX |
|
System Watts/W
|
300W | 600W | 900W | 1200W | 1500W |
1800W
|
|
System Efficiency/LPW
|
130~140LPW / 150~160LPW Optional | |||||
|
Lumen Output (Max) /lm
|
48.000±5% | 96.000±5% | 144.000±5% | 192.000±5% | 240.000±5% | 288.000±5% |
|
Rated Input Voltage/V
|
AC200~240V, 50/60Hz | |||||
|
LEDs Light Source
|
SMD3030 / SMD5050 | |||||
|
SDCM
|
<5 | |||||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||||
|
CRI/Ra
|
>70Ra (>80Ra for Option) | |||||
|
Power Factor
|
>0.95 | |||||
|
THD
|
<10% | |||||
|
Beam Angle(Optional)
|
Symmetrical 25°/40°/50°/90° beam angle optional | |||||
|
UGR
|
<25 | |||||
|
Surge Protection
|
4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||||
|
LED Driver
|
Meanwell ELG/HLG | |||||
|
IP Rating
|
IP65 | |||||
|
Dimming(Optional)
|
1-10V, DALI,PWM,Zigbee | |||||
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | |||||
| Start Time | 0.5s | |||||
|
Protection Class
|
ClassⅠ | |||||
|
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | |||||
|
Material
|
Aluminum+PC | |||||
|
Lifespan/hrs
|
70.000 Hrs (Ta=30℃@L70) | |||||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | |||||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | |||||
| Switching Cycles | 100,000 Times | |||||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||||
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
|
DR-SPL300-DGXX
|
8.5
|
585*315*260
|
9.7
|
1PCS/CTN
|
|
DR-SPL600-DGXX
|
17.4
|
625*620*260
|
18.8
|
1PCS/CTN
|
|
DR-SPL900-DGXX
|
26.1
|
625*820*260
|
28.2
|
1PCS/CTN
|
|
DR-SPL1200-DGXX
|
34.2
|
625*1150*260
|
36.5
|
1PCS/CTN
|
|
DR-SPL1500-DGXX
|
39.3
|
790*1240*260
|
42.5
|
1PCS/CTN
|
|
DR-SPL1800-DGXX
|
42.1
|
790*1240*260
|
46.3
|
1PCS/CTN
|
FAQ
Q1:How's the structure of flood light?
RE:The production of LED floodlights is complicated,
1. Working with imported high-brightness chips, high-brightness, low energy consumption, low heat, short-lived 50000H, can be divided into two kinds of monochrome and color.
2. The shell material is a high-pressure cast aluminum shell and 4mm toughened safety glass. Features: (1) There are two options for working symmetrical and asymmetrical lighting, and glare control. (2) The electric lights are integrated, the appearance is light and beautiful, and the installation is simple. (3) Dustproof and waterproof grade IP65.
3. Voltage classification: 220 v, 110 v, 12 v, 24 v.
4.LED light source: 1W, 3W high power LED
5. The irradiation interval of high-power LED lighting is 5-30 meters, which is especially suitable for architectural buildings, outdoor square landscape lighting, walls, and display items.
6. Color: red/yellow/blue/green/white/color change and so on. After the rich and colorful separation of light and water, what can bring you inspiration is more beautiful, it is really a picture of dreams.
7. Power: 6-54w different environments use different power lights. The latest LED lighting is gradually increasing, including 50W LED lighting, 70W LED lighting, 100W LED lighting, 150W LED lighting, 200W LED lighting, 250W LED lighting
