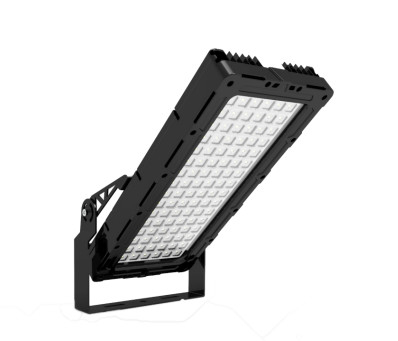

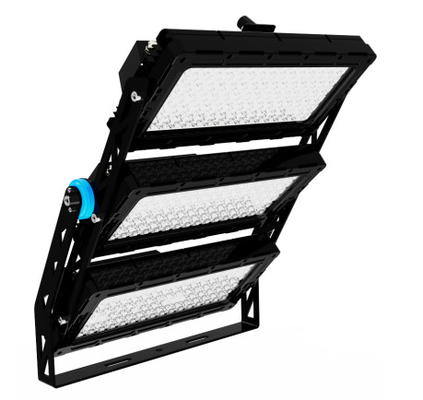

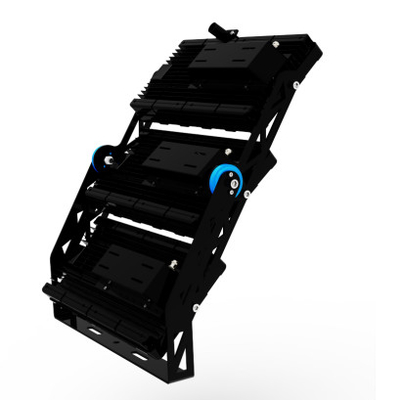

RAL9017 SMD5050 500W 160LPW Outdoor Led Floodlight

Sports Project LED Flood Light Surge Protector Device PFC Function Available

Options:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 20°/30°/60°/90°,Asymmetrical 140*60° optics optional;

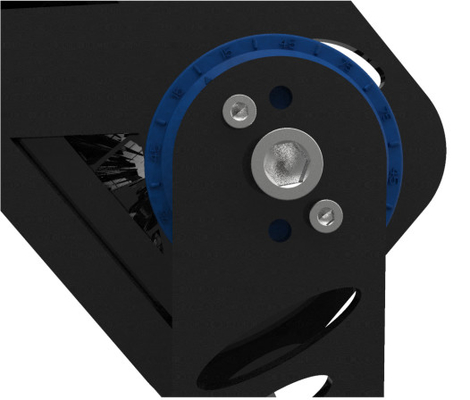

> Aiming Device: Laser Pointer;

> Logistics areas (Ports)

> Stadiums and Racing tracks

> Public squares

> Apron lighting (Airports), Parking and Industrial areas

> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

Model No.	DR-SPL300-EGXP	DR-SPL400-EGXP	DR-SPL500-EGXP	DR-SPL600-EGXP	DR-SPL800-EGXP	DR-SPL1000-EGXP
System Watts/W	300W	400W	500W	600W	800W	1000W
System Efficiency/LPW	150~160LPW
Lumen Output/lm	48.000±5%	64.000±5%	80.000±5%	96.000±5%	128.000±5%	160.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	20°/30°/60°/90°/140*60° Optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-EGXP	13.1	590*505*250	14.2	1PCS/CTN
DR-SPL400-EGXP	16.9	680*505*250	18.2	1PCS/CTN
DR-SPL500-EGXP	4.8	790*505*250	23.5	1PCS/CTN
DR-SPL600-EGXP	22.1	830*590*250	28.4	1PCS/CTN
DR-SPL800-EGXP	30.8	830*690*250	32.5	1PCS/CTN
DR-SPL1000-EGXP	36.5	830*790*250	39.8	1PCS/CTN

FAQ

Q1:What should I do if the floodlight is broken?
RE:LED floodlights are also LED floodlights, spotlights, spotlights, spotlights, etc. They are mainly used for building decoration lighting and commercial space lighting. The decoration components are heavier, and the appearance is round or round. For the square, due to the different reasons of heat dissipation and application environment, the other shapes of the cast light only have some differences in shape, in fact, the principles are the same.

If you want to know how to deal with a broken LED floodlight, you must first understand the most basic structure of the floodlight: outer frame, transparent tempered glass, LED light source, expanded aluminum sheet, LED power supply, and housing. So, what should I do if the LED flood light is broken? Now tell you how to repair and replace.

The LED flood light is broken, and the first thing is that the light source and power supply used are not good. If there is a tool that can detect it, you will know which one is broken. The following are the general reasons why the LED flood light does not turn on:

The power supply is broken, no power supply: the majority of the power supply of the flood light is broken, and the power supply provides a stable operating voltage for the light source.

The power supply has a problem in the process of converting AC power to DC power, which may cause the LED flood light to not light up and flash. Generally, there is no way to repair it. Change the power supply directly. Of course, you must find out the number of series and parallels of the light source before changing. The current and voltage, whether it is full watts, if you don’t know if you change the power supply hastily, it won’t be too long if you change it wrong, or it’s not bright enough.

The light source is broken and the light does not turn on: Check if there is a black spot at the center of the lamp bead. This black spot is caused by two reasons. The top spot is long-term use. The temperature of the lamp bead is formed by the high temperature of glue and phosphor. One reason is that the current of the power supply is too high (this is because the power supply is unstable, or the quality of the light source is poor), depending on the open circuit or necrosis of the lamp beads.
