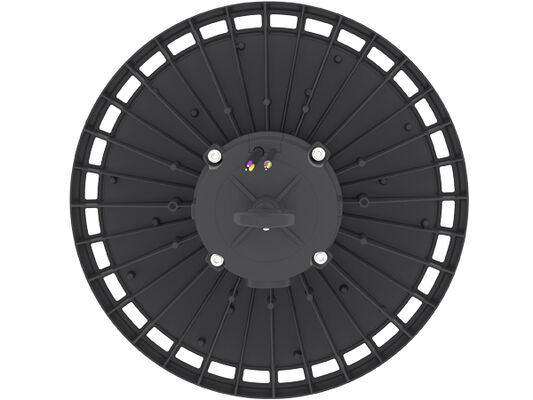

Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications

Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications

  • Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications
  • Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications
  • Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications
  • Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications
  • Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications
  • Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications
  • Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications
  • Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications
  • Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications
  • Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications
  • Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications
Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications
Product Details:
Place of Origin: Shenzhen, China
Brand Name: DUALRAYS/OEM/ODM/OBM Optional
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-HB100DNN-8XX -BCP-BGBX03
Document: DUALRAYS LIGHTING Catalogue...26.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Please inquiry for the latest price
Packaging Details: DUALRAYS/OEM/ODM/OBM Package Optional
Delivery Time: 5-15 business days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 100,000PCS/Month
Contact Now
Detailed Product Description
Power: 100W DIP(60/80W/100W) 150W DIP(100W/120W/150W) 200W DIP(120W/150W/200W) Efficiency: 150LPW (PROLine) | 170LPW (PRIMELine) | 190LPW (ULTRALine) Optional
Material: Aluminium Alloy CCT: Single CCT (3000K | 4000K | 5000K | 5700K |6500K)
Power Factor: 0.96 IP Rating: IP66
Recommended Mounted Height: 5 - 15 Meters
Highlight:

MEANWELL Driver LED Sports Floodlights

,

150lm/W LED Sports Floodlights

,

300W Led Stadium Floodlights

Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications




Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications

Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications

Options:
> Driver: Sosen,Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;

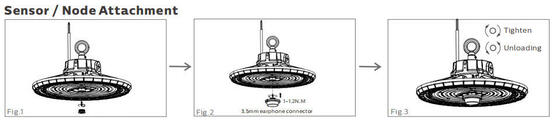

> Microwave Motion Sensor;

Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications

> Airports & Harbors
> Billboard illumination
> Large recreational sports facilities
> Industrial areas & Landscape buildings
> Roundabouts and motorway junctions
Model No.DR-FL050-CGXXDR-FL100-CGXXDR-FL150-CGXXDR-FL200-CGXXDR-FL300-CGXX
System Watts/W50W100W150W200W300W
System Efficiency/LPW120~125LPW
Lumen Output/lm6.500±5%12.500±5%18.750±5%25.000±5%37.500±5%
Rated Input Voltage/VAC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light SourceSMD3030
SDCM<5
CCT/K5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra>70Ra (>80Ra for Option)
Power Factor>0.95
THD<10%
Beam Angle(Optional)Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR<25
Surge Protection6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED DriverSosen,Meanwell ELG / HLG Optional
IP RatingIP65
Dimming(Optional)1-10V, DALI,PWM,Zigbee for Option
Safety ProtectionOpen Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional)Motion Sensor
Protection ClassClassⅠ
Finishing Color(Optional)Black RAL9017(Standard) / White RAL9016 Optional
MaterialAluminum+Toughened Glass
Lifespan/hrs62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles100,000 Times
CertificateCE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available


Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications



Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications
Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications

Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications

Meanwell Driver 300W 150lm/W LED Sports Floodlights 5 Years Warranty With CE ROHS Certifications

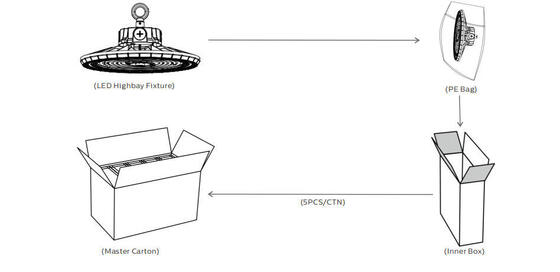

Model No.Net Weight/KgOuter Carton Size/mmGross Weight/KgQTY”/CTN
DR-FL050-CGXX3.6355*350*1654.51PCS/CTN
DR-FL100-CGXX3.8355*350*1654.71PCS/CTN
DR-FL150-CGXX4.5415*410*1755.81PCS/CTN
DR-FL200-CGXX5.7475*470*1957.31PCS/CTN
DR-FL300-CGXX9.3475*470*19511.51PCS/CTN
