Name: 60000lm 400W LED Sports Light SMD 5050 With Laser Pointer
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-SPL400-FGXP
Price: 309.36 USD
Availability: InStock

Home Products D3 LED Weatherproof Light

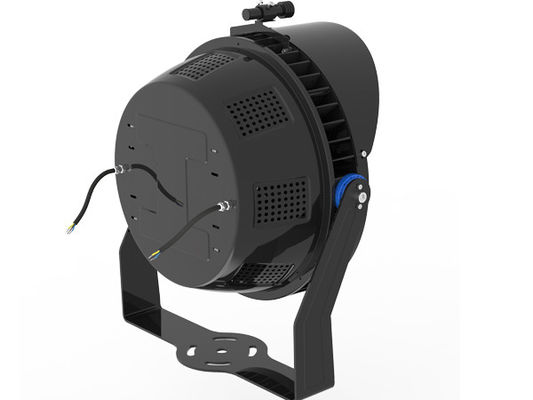

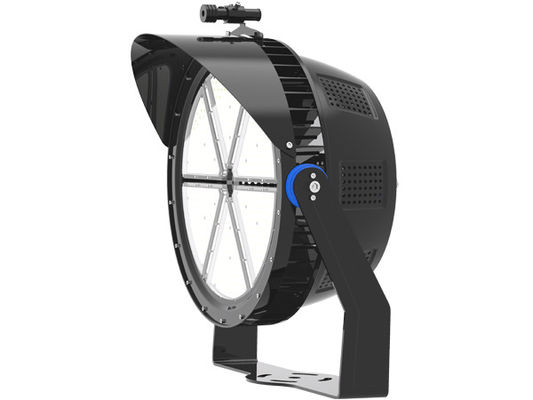

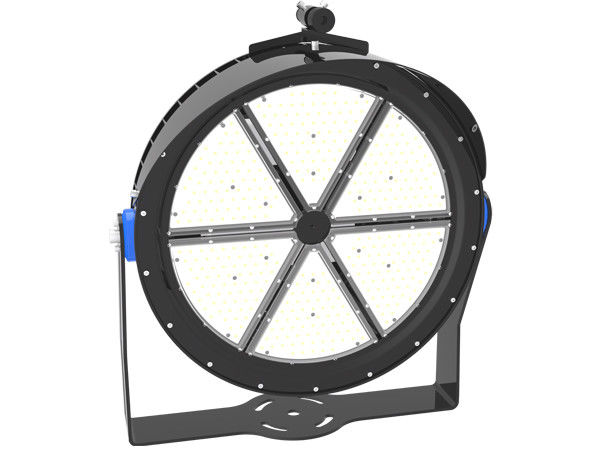

60000lm 400W LED Sports Light SMD 5050 With Laser Pointer

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-SPL400-FGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD 294.36$-325.84$
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Business Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Wattage:	400W	Flux:	60000lm
Chips:	SMD5050	Beam Angle:	30°
Color:	Black	Aiming Device:	Laser Pointer
Highlight:	400W Sports LED Flood Light , 60000lm Sports LED Flood Light , Lumileds 3030 Led Sports Floodlights

400W LED Flood light for Sports 60000lm

DUALRAYS SP6 LED Sport Light Spe.pdf

Features:

* Aiming device Laser Pointer;

* 30°/60°/90° beam angle for options;

* 400W 45000lm, for 800W MHL equivalent;
* ±360° adjustable bracket;

* TM21(L80>50000hrs);

Model No.	DR-SPL300-FGXP	DR-SPL400-FGXP	DR-SPL600-FGXP	DR-SPL800-FGXP
System Watts/W	300W	400W	600W	800W
System Efficiency/LPW	150LPW
Lumen Output/lm	45.000±5%	60.000±5%	90.000±5%	120.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	30°/60°/90°
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	300W	400W	600W	800W
A / mm	Ø445	Ø445	Ø537	Ø537
B / mm	321	321	373	373

60000lm 400W LED Sports Light SMD 5050 With Laser Pointer 8

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-FGXP	12.4	610510250	13.8	1PCS/CTN
DR-SPL400-FGXP	12.9	610510250	14.7	1PCS/CTN
DR-SPL600-FGXP	25.3	890710275	27.6	1PCS/CTN
DR-SPL800-FGXP	25.9	890710275	28.8	1PCS/CTN

60000lm 400W LED Sports Light SMD 5050 With Laser Pointer 17

60000lm 400W LED Sports Light SMD 5050 With Laser Pointer 20

60000lm 400W LED Sports Light SMD 5050 With Laser Pointer 21

60000lm 400W LED Sports Light SMD 5050 With Laser Pointer 22

60000lm 400W LED Sports Light SMD 5050 With Laser Pointer 23

60000lm 400W LED Sports Light SMD 5050 With Laser Pointer 24

60000lm 400W LED Sports Light SMD 5050 With Laser Pointer 25

60000lm 400W LED Sports Light SMD 5050 With Laser Pointer 26

60000lm 400W LED Sports Light SMD 5050 With Laser Pointer 27

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
60000lm 400W LED Sports Light SMD 5050 With Laser Pointer 28

(DIALUX Simulation)

Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
