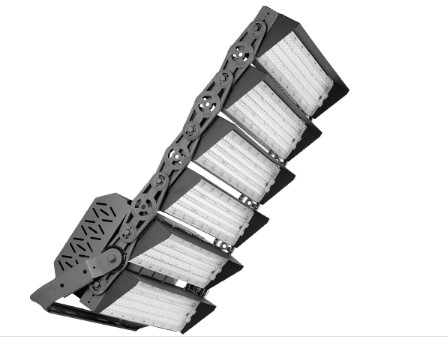

Name: DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-SPXXX-DG2
Availability: InStock

Home Products LED Moisture-proof Lamp

DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-SPXXX-DG2

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Power:	300-1800W	Efficiency:	150lm/w
Material:	Aluminium Alloy	L80:	>50,000hrs
Driver:	Meanwell	IP Rating:	IP66
Highlight:	1800W Stadium LED Flood Light , 150lm/W Stadium LED Flood Light , DUALRAYS SP4 Led Football Floodlights

DUALRAYS SP4 Stadium LED Module Flood Light Meanwell Driver

DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver 0

LUMILEDS LUXEON High Brightness SMD3030 /SMD5050 LEDs;
Meanwell ELG/HLG Driver;
IP66 Protection;
25°/40°/50°/90°beam angle optional;
Adjustable mounting bracket for wall mast or suspending installation;
Air breather design to balance air pressure and moisture prevent;
Various intelligent control: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;
Customized supported for special projects Junction box for convenient wiring from the driver box

DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver 1

Model No.	DR-SPL250-DGXX	DR-SPL500-DGXX	DR-SPL750-DGXX	DR-SPL1000-DGXX	DR-SPL1250-DGXX	DR-SPL1500-DGXX
System Watts/W	250W	500W	750W	1000W	1250W	1500W
System Efficiency/LPW	150~160LPW
Lumen Output (Max) /lm	40.000±5%	80.000±5%	120.000±5%	160.000±5%	200.000±5%	240.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	20°/40°/60°/90°/140*60° Optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG
IP Rating	IP66
Dimming(Optional)	1-10V, DALI,PWM,Zigbee
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver 2

DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver 4

DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver 6

DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver 7

DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver 8

DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver 9

DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver 10

DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver 11

DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver 12

DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver 13

DUALRAYS Stadium SP4 1800W 150lm/W LED Module Flood Light Meanwell Driver 14
