Name: LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-SPXXX-DG2
Availability: InStock

Home Products LED Moisture-proof Lamp

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-SPXXX-DG2

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Power:	300-1800W	Efficiency:	150lm/w
Material:	Aluminium Alloy	CCT:	3000/4000/5700/6500K±200K
Power Factor:	0.95	IP Rating:	IP67
Highlight:	1800W LED Stadium Floodlights , 150lm/w LED Stadium Floodlights , SMD5050 Led Tennis Court Lights

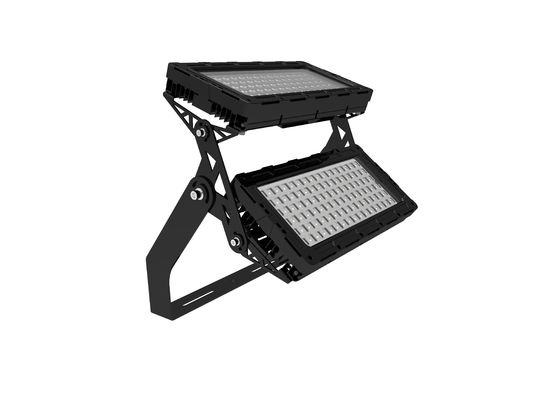

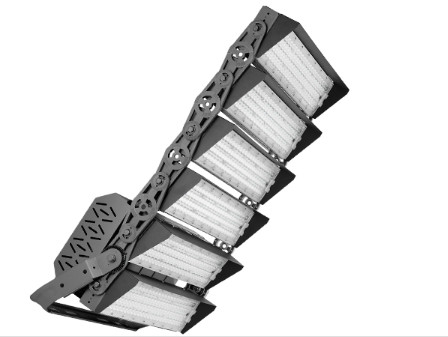

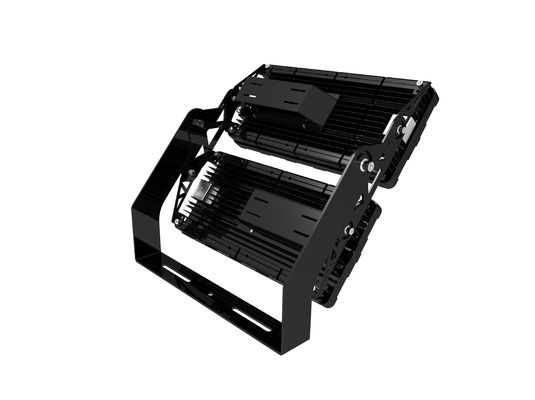

DUALRAYS SP4 300W to 1800W Sport Flood Light Stadium Lighting

LUMILEDS LUXEON High Brightness SMD3030 /SMD5050 LEDs;
Meanwell ELG/HLG Driver;
IP66 Protection;
25°/40°/50°/90°beam angle optional;
Adjustable mounting bracket for wall mast or suspending installation;
Air breather design to balance air pressure and moisture prevent;
Various intelligent control: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;
Customized supported for special projects Junction box for convenient wiring from the driver box

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting 1

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting 2

Model No.	DR-SPL250-DGXX	DR-SPL500-DGXX	DR-SPL750-DGXX	DR-SPL1000-DGXX	DR-SPL1250-DGXX	DR-SPL1500-DGXX
System Watts/W	250W	500W	750W	1000W	1250W	1500W
System Efficiency/LPW	150~160LPW
Lumen Output (Max) /lm	40.000±5%	80.000±5%	120.000±5%	160.000±5%	200.000±5%	240.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	20°/40°/60°/90°/140*60° Optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG
IP Rating	IP66
Dimming(Optional)	1-10V, DALI,PWM,Zigbee
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting 3

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting 5

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting 7

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting 8

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting 9

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting 10

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting 11

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting 12

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting 13

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting 14

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting 15
