Place of Origin: | Shenzhen, China |
Brand Name: | DUALRAYS |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Model Number: | DR-TPL050-BG52 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | Negotiated |
Packaging Details: | Netural Package,color box package |
Delivery Time: | 5-15 business days |
Payment Terms: | Western Union, T/T, L/C |
Supply Ability: | 100000PCS/Month |
Rated Power: | 50W | LEDs Qty: | 312PCS |
---|---|---|---|
AC Input Vol: | AC100~277V 50/60Hz | Lumen Maintenance @ 6000 Hrs: | >90% |
Switching Cycle Before Failure: | 100,000 Times | Power Supply: | DUALRAYS Own-developed Flicker-free Driver,BOKE DIP Switch Power Adjustable Driver |
High Light: | explosion proof led lights,vapor proof led light |

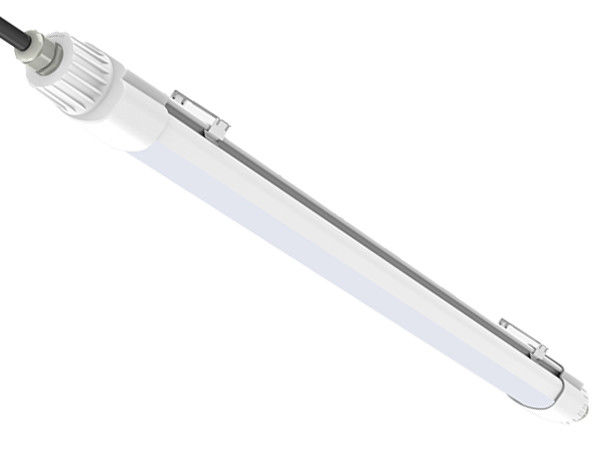

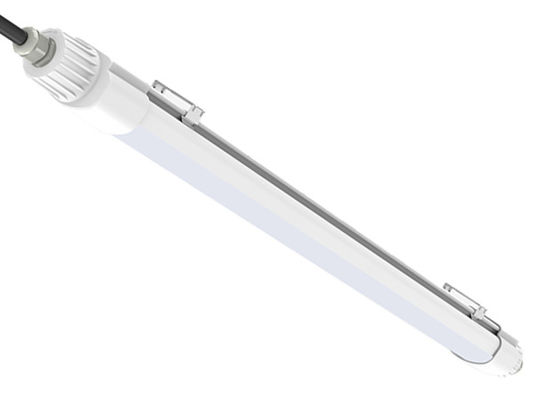

Dualrays D2 Series 50W Full Plastic Material Eco and Environment Friendly LED Triproof Light 120°Beam Angle
Model No.: | DR-TPL050-BG52 | Color Index: | >80Ra |
Power: | 50W | AC Input Vol: | AC200~277V 50-60Hz |
LEDs Qty: | 312PCS | Length: | 5ft |
Life Span: | 50,000hrs | Warranty: | 5 Years |
Dualrays D2 Series 50W LED Tri Proof Light-- Feature:

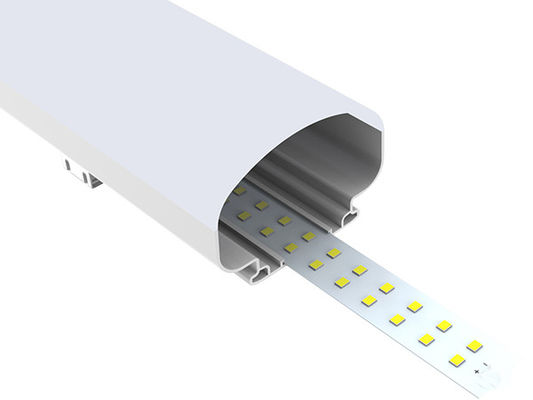

1.Full plastic housing with high transmittance arcrylic cover,light and economic design concept;
2. Luminaire coated in an environmentally friendly polyester powder formulated for a durable and long-lasting color in a silvery,black and
white finish;
3.100LPW Standard Version,130LPW Proline Version,160LPW Primeline Version for option,CRI>80Ra,more sufficient;
4. PFC function,0-10V,DALI dimming and PIR sensor;

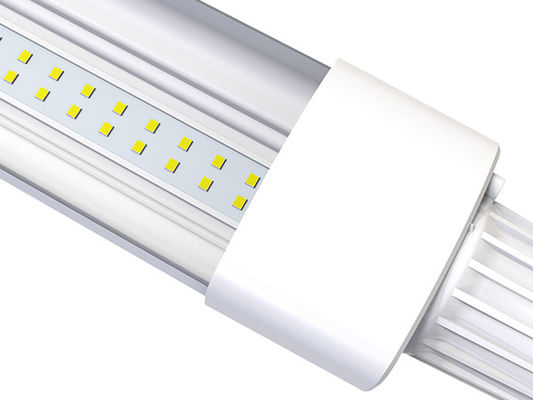

5. BOKE flicker-free constant current driver is isolated away from the heat source of the LEDs,keeps the stability and performance of the driver for long life,quick responds,no flicker, lightning protection, PFC function,0-10V,DALI dimming and PIR sensor;
6. Multiple Link with double wiring;
Model No. | DR-TP020-BG2XPX | DR-TP030-BG4XPX | DR-TP040-BG4XPX | DR-TP040-BG5XPX | DR-TP050-BG5XPX |
System Watts/W | 20W | 30W | 40W | 40W |
50W
|
System Efficiency/LPW | 120LPW / 140LPW Optioanl | ||||
Lumen Output/lm | 2.400/2.800±5% | 3.600/4.200±5% | 4.800/5.600±5% | 4.800/5.600±5% | 6.000/7.000±5% |
Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
LEDs Light Source | SMD2835 | ||||
SDCM | <6 | ||||
CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
CRI/Ra | >80Ra (>70Ra for Option) | ||||
Power Factor | >0.94 | ||||
THD | <10% | ||||
Beam Angle(Optional) | 120° | ||||
UGR | <22 | ||||
LED Driver | DUALRAYS Own Developed High PF Interior Driver | ||||
IP Rating | IP65 | ||||
IK Level | IK08 | ||||
Dimming(Optional) | 1-10V | ||||
Sensor(Optional) | No | ||||
Emergency(Optional) | No | ||||
Protection Class | ClassⅠ | ||||
Finishing Color(Optional) | White RAL9016 Optional | ||||
Material | PC+PC | ||||
Lifespan/hrs | 50.000 Hrs (Ta=30℃@L70) | ||||
Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | ||||
Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | ||||
Installation(Optional) | Suspension / Ceiling Mounting Optional | ||||
Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
Character/Length
|
2ft
|
4ft
|
5ft
|
|
A
|
600mm
|
1200mm
|
1500mm
|
|
B
|
74mm
|
74mm
|
74mm
|
|
C
|
74m
|
74mm
|
74mm
|
(I) Emergency Function
Model No.
|
Emergency Time (Hours)
|
Emergency Power (W)
|
Battery Parameters
|
DR-TPL020-BG21
|
3/2/1 hours for option
|
10W
|
7.4V/4400/3000/1500mAh Lithium Battery |
DR-TPL040-BG41
|
3/2/1 hours for option
|
10W
|
11.1V/6000/4000/2000mAh Lithium Battery
|
DR-TPL050-BG51
|
3/2/1 hours for option
|
10W
|
11.1V/8800/6000/3000mAh Lithium Battery |
Size
|
Net Weight/PCS
|
Outer Carton Size
|
G.W
|
Quantity/CTN
|
2ft
|
0.9kg
|
L670xW440xH200mm
|
13.2kg
|
10PCS
|
4ft
|
1.8kg
|
L1270xW360xH200mm
|
17.5kg
|
8PCS
|
5ft
|
2.1kg
|
L1570xW360xH200mm
|
20.6kg
|
8PCS
|
Shipment
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
RE: Ra>80 for standard.
