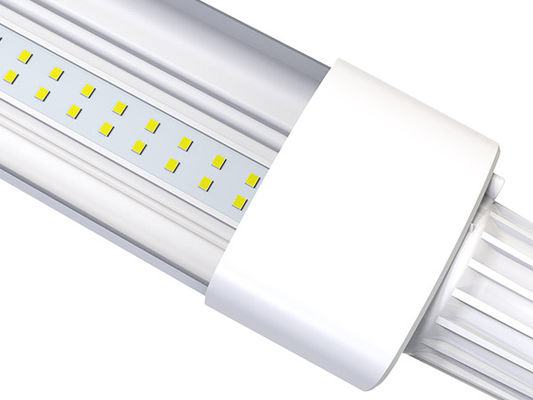

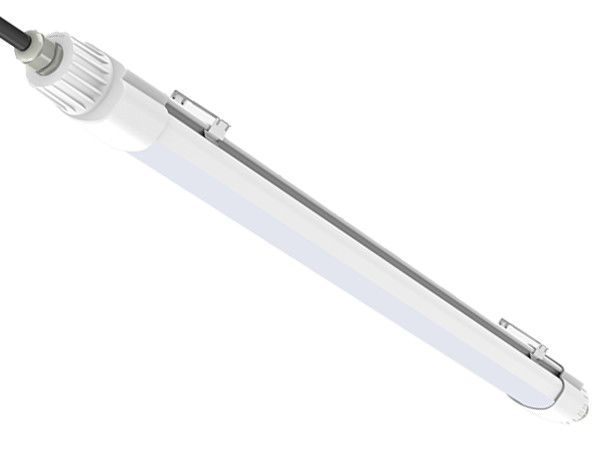

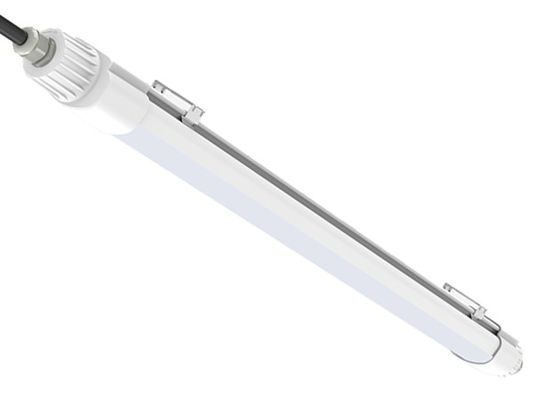

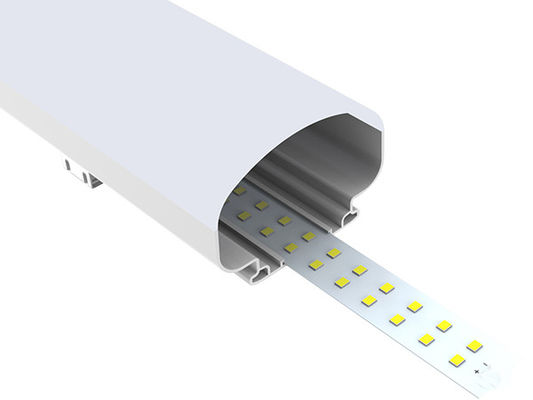

Name: Dualrays D2 Series 40W 4Ft Eco and Environment Friendly LED Triproof Light 5 Years Warranty
Brand: DUALRAYS
SKU: DR-TPL040-BG32
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (134 reviews)

Home Products LED Tri Proof Light

Dualrays D2 Series 40W 4Ft Eco and Environment Friendly LED Triproof Light 5 Years Warranty

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-TPL040-BG32

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	Negotiated
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	40W	Luminous Flux:	4,800/6,400±5%
AC Input Vol:	AC100~277V 50/60Hz	Lumen Maintenance @ 6000 Hrs:	>90%
Switching Cycle Before Failure:	100,000 Times	Power Supply:	DUALRAYS Own-developed Flicker-free Driver,BOKE DIP Switch Power Adjustable Driver
High Light:	explosion proof led lights , dust proof light fixture

Dualrays D2 Series 40W 4Ft Eco and Environment Friendly LED Triproof Light 5 Years Warranty

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

Dualrays D2 Series 40W LED Triproof Light-- Detailed Product Description

Model No.:	D2 Series	Color Index:	>80Ra
Power:	40W	AC Input Vol:	AC200~277V 50-60Hz
LEDs Qty:	273PCS	Length:	4ft
Life Span:	50,000hrs	Warranty:	5 Years

Dualrays D2 Series 40W LED Triproof Light-- Feature:

> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;

> 1-10V dimming flicker-free driver;

> Single or Double wiring;

> IP66 and IK10 for all industrial areas of application;

> Eco full plastic light design,save your cost and freight;

> Multiple Link with double wiring;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> No toxic heavy metals, VOC, or mercury were used in the design;

> 5 years warranty;

Dualrays D2 Series 40W LED Triproof Light-- Options:

> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.

> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

> Suspended/Surface mounted/Adjustable installation for option.
> Single or double wiring and connection.

> Customized supported for special projects;

* Replacement for fluorescent NCF

* Workshops and warehouse

* Garage and car parks

* Sport facility

* Corridor/Gallery/Corridor

* Outdoor & Indoor Locations

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

Model No.	DR-TP020-BG2XPX	DR-TP030-BG4XPX	DR-TP040-BG4XPX	DR-TP040-BG5XPX	DR-TP050-BG5XPX
System Watts/W	20W	30W	40W	40W	50W
System Efficiency/LPW	120LPW / 140LPW Optioanl
Lumen Output/lm	2.400/2.800±5%	3.600/4.200±5%	4.800/5.600±5%	4.800/5.600±5%	6.000/7.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD2835
SDCM	<6
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.94
THD	<10%
Beam Angle(Optional)	120°
UGR	<22
LED Driver	DUALRAYS Own Developed High PF Interior Driver
IP Rating	IP65
IK Level	IK08
Dimming(Optional)	1-10V
Sensor(Optional)	No
Emergency(Optional)	No
Protection Class	ClassⅠ
Finishing Color(Optional)	White RAL9016 Optional
Material	PC+PC
Lifespan/hrs	50.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Suspension / Ceiling Mounting Optional
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

Character/Length	2ft	4ft	5ft
A	600mm	1200mm	1500mm
B	74mm	74mm	74mm
C	74m	74mm	74mm

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

(I) Emergency Function

Model No.	Emergency Time (Hours)	Emergency Power (W)	Battery Parameters
DR-TPL020-BG21	3/2/1 hours for option	10W	7.4V/4400/3000/1500mAh Lithium Battery
DR-TPL040-BG41	3/2/1 hours for option	10W	11.1V/6000/4000/2000mAh Lithium Battery
DR-TPL050-BG51	3/2/1 hours for option	10W	11.1V/8800/6000/3000mAh Lithium Battery

DALI Device
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface
