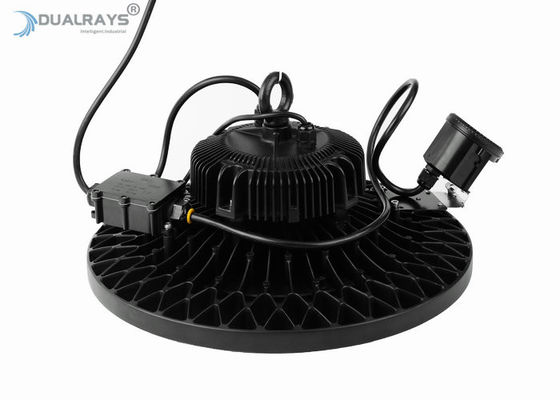

Name: Dualrays 150W UFO LED High Bay Light Aluminum 150LPW For Industrial Application
Brand: DUALRAYS
SKU: DR-HB150-EG1
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (106 reviews)

Home Products UFO LED High Bay Light

Dualrays 150W UFO LED High Bay Light Aluminum 150LPW For Industrial Application

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB150-EG1

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiated
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Power Effciency:	95%	Power Factor:	0.95
Junction Temperature:	<80℃	CRI:	>83Ra
Warranty:	5 Years	LED's Brand:	PHILIP LUMILEDS
High Light:	led flat panel light fixture , wireless led outdoor flood lights

Dualrays 150W UFO LED High Bay Light Aluminum 150LPW For Industrial Application 0

Dualrays HB5 Series UFO LED High Bay Light-- Data Sheet

Model No.	DR-HB150-EG2
Rated Power/W	150
Luminous Flux/LM	21,000±5%
Systen Efficiency/LPW	150
Color Temperature	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Dimming Function	1-10VDC /DALI / PIR Sensor
Protections	Short circuit/Over current/Over voltage/Over temperature
Anti-salty spray	Grade A
Color Index	>80Ra
Beam Angle Options	60°/120° for option
IP/Rating	IP65
AC Input Volage/V	AC100~240V 50/60Hz
Power Factor	PF>0.95
Starting Time	<0.1
LED Driver	Sosen/Meanwell
UGR	<25
THD	<10%
SDCM	<5
Dimming options	1-10V
Lumen Maintenance @ 6000 hrs	>95%
Switching Cycle before Failure	100,000
Installation Option	Bracket/Suspending
Material	AL+PC
Life Span/hrs	>50000
Warranty	5 years
Operation Temperature	-40 ~ +55℃
Storage Temperature	-40 ~ +85℃

Dualrays HB5 Series UFO LED High Bay Light--Features

* LUMILEDS LUXEON High Brightness SMD3030 LEDs,SOSEN;

* IP65 Protection;

* 60°/90°(with lens)/120°(without lens) beam angle optional;

* IP65 Protection;

* D-Mark tested for the use in paper production,wood processing etc with toughened glass;
* Multiple installations: loop hanging, ceiling mounting, wall mounting,pipe mounting;
* Various intelligent control: 1-10V, DALI, Motion sensor, Daylight sensor,Zigbee and Emergency;
* Customized supported for special projects;

Dualrays HB5 Series UFO LED High Bay Light--Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

Dualrays 150W UFO LED High Bay Light Aluminum 150LPW For Industrial Application 3

Dualrays 150W UFO LED High Bay Light Aluminum 150LPW For Industrial Application 5

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

Dualrays 150W UFO LED High Bay Light Aluminum 150LPW For Industrial Application 7

Dualrays 150W UFO LED High Bay Light Aluminum 150LPW For Industrial Application 9

DALI Device
Dualrays 150W UFO LED High Bay Light Aluminum 150LPW For Industrial Application 15

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Dualrays 150W UFO LED High Bay Light Aluminum 150LPW For Industrial Application 19

Packaging Information
