Asymmetric 25 Degree Linear LED Module for Supermarket Illumination

Asymmetric 25 Degree Linear LED Module for Supermarket Illumination

  • Asymmetric 25 Degree Linear LED Module for Supermarket Illumination
  • Asymmetric 25 Degree Linear LED Module for Supermarket Illumination
  • Asymmetric 25 Degree Linear LED Module for Supermarket Illumination
  • Asymmetric 25 Degree Linear LED Module for Supermarket Illumination
  • Asymmetric 25 Degree Linear LED Module for Supermarket Illumination
  • Asymmetric 25 Degree Linear LED Module for Supermarket Illumination
  • Asymmetric 25 Degree Linear LED Module for Supermarket Illumination
  • Asymmetric 25 Degree Linear LED Module for Supermarket Illumination
  • Asymmetric 25 Degree Linear LED Module for Supermarket Illumination
  • Asymmetric 25 Degree Linear LED Module for Supermarket Illumination
  • Asymmetric 25 Degree Linear LED Module for Supermarket Illumination
Asymmetric 25 Degree Linear LED Module for Supermarket Illumination
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS/OEM/ODM/OBM Optional
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-RM075D-NN8XX-05WH-PEEUXX01
Document: DUALRAYS RM5 Linear LED Ret...pe.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 8PCS
Price: Negotaited

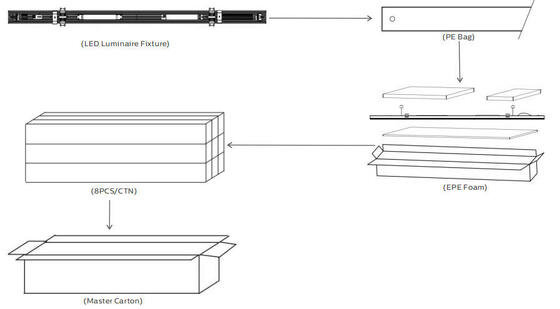

Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description

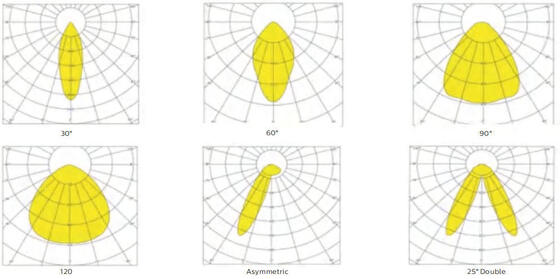

Beam Angle: 30° | 60° | 90° | 120° | Asymmetric 25° L | Asymmetric 25° R | 25° Double Material: Aluminum+PC
Average Luminaire Useful Lifetime: 10.000 Hours (L80B10) Luminous Efficacy: 160LPW (PROLine)
SDCM (Standard Deviation Of Color Matching): <5 (SDCM<3 Optional) Operation Temperature / Humidity: -20~ +50℃ (-4°F ~ 122°F) / 5~85% RH, Not Condensed
Guarantee: 5 Years (Extensible Up To 7 Years)
Highlight:

led linear high bay

,

linear lighting systems

Asymmetric 25 Degree Linear LED Module for Supermarket Illumination

Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 0

Item Symbol Description
Model No / DR-ULM035-DE5C
Length mm 1430
Color / White RAL 9003
LEDs source / SMD2835
Driver / BOKE
Anti-salty spray / Grade A
AC Input Vol V AC220-240V/DC180-264V
Output Vol V DC32V
Warranty Years 5 years
Operation Temperature -40 ~ +55℃
Storage Temperature -40 ~ +85℃

Feature

a. Private Mold for PMMA Extrusion lens,much more durable and elegant normal PC Injection lens in the market;

b. BOKE flicker-free driver,with non-dimming,1-10V,DALI dimming, AC/DC input;

c. The complete fixtures includes linear module, trunking rail, optional functions and installation accessories, the quotation above only means linear module, extra function or installationkits ,please contact us for quotation;

d. Customized dimming type or emergency function,please contact us for confirmation;

Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 1

Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 2Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 3

Advantage

* Provide Dialux software for lighting design project for our customers;

* Have branch office and warehouse in Netherlands with more than 4000㎡. 3 days delivery time, fast reaction.

* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;

* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.

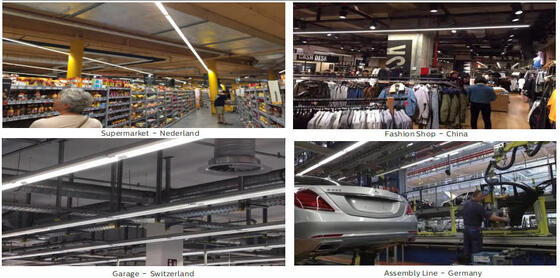

Application

* Office

* Workshops and warehouse

* Supermarkets

* Underground parking

Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 4

Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 5

Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 6

Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 7

Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 8

Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 9

Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 10

Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 11



Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 12

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 13 Asymmetric 25 Degree Linear LED Module for Supermarket Illumination 14
