Name: LED Flood Lighting Fixture for Industry with 5 Years Warranty
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-FL300-CG1
Availability: InStock

Home Products D5 LED Triproof Light

LED Flood Lighting Fixture for Industry with 5 Years Warranty

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-FL300-CG1

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	Competitive Price in Our European Warehouse
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

CRI:	>80	Power:	200
IP Ranking:	IP66	Working Temp:	-40 To +50℃
Installation:	Suspended	Driver:	Meanwell
Highlight:	led flat panel light fixture , high bay led shop lights

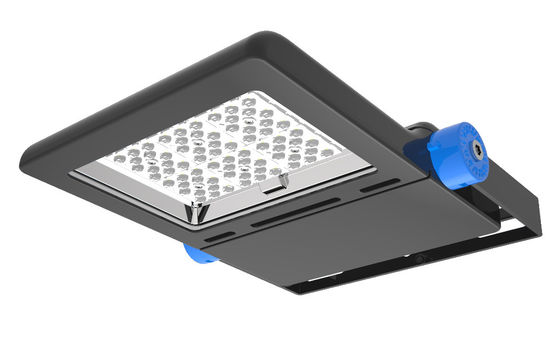

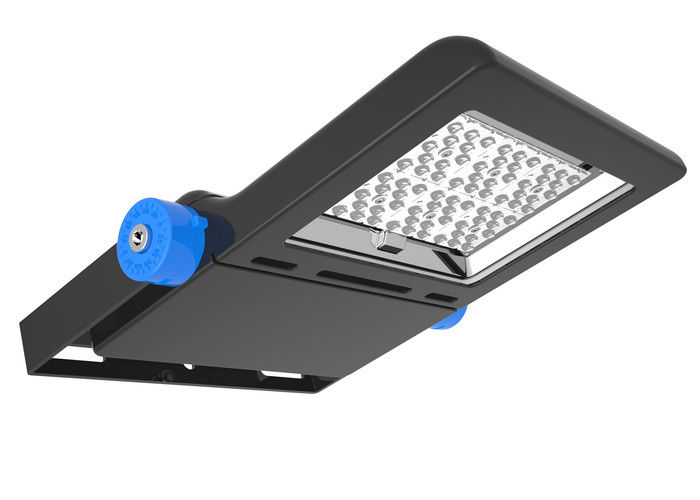

LED Flood Lighting Fixture for Industry with 5 Years Warranty

LED Flood Lighting Fixture for Industry with 5 Years Warranty 0

> 300W LED Flood Light Flat 13500LM for Outdoor Security and Decoration

> Built-in Plug and Play Motion Sensor with Compact Structure;

> L70/B20(25℃)65.000h;

LED Flood Lighting Fixture for Industry with 5 Years Warranty 1

LED Flood Lighting Fixture for Industry with 5 Years Warranty 2

Model No.	DR-FL050-CGXX	DR-FL100-CGXX	DR-FL150-CGXX	DR-FL200-CGXX	DR-FL300-CGXX
System Watts/W	50W	100W	150W	200W	300W
System Efficiency/LPW	120~125LPW
Lumen Output/lm	6.500±5%	12.500±5%	18.750±5%	25.000±5%	37.500±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Sosen,Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional)	Motion Sensor
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+Toughened Glass
Lifespan/hrs	62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	100W	150W	200W	240W	300W
A / mm	389	389	437	493	582
B / mm	297	297	346	379	444
C / mm	57	57	57	57	60

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-FL050-CGXX	3.6	355350165	4.5	1PCS/CTN
DR-FL100-CGXX	3.8	355350165	4.7	1PCS/CTN
DR-FL150-CGXX	4.5	415410175	5.8	1PCS/CTN
DR-FL200-CGXX	5.7	475470195	7.3	1PCS/CTN
DR-FL300-CGXX	9.3	475470195	11.5	1PCS/CTN

LED Flood Lighting Fixture for Industry with 5 Years Warranty 20

LED Flood Lighting Fixture for Industry with 5 Years Warranty 21

LED Flood Lighting Fixture for Industry with 5 Years Warranty 22

LED Flood Lighting Fixture for Industry with 5 Years Warranty 23

LED Flood Lighting Fixture for Industry with 5 Years Warranty 24

LED Flood Lighting Fixture for Industry with 5 Years Warranty 25

LED Flood Lighting Fixture for Industry with 5 Years Warranty 26

LED Flood Lighting Fixture for Industry with 5 Years Warranty 27

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
LED Flood Lighting Fixture for Industry with 5 Years Warranty 28

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
