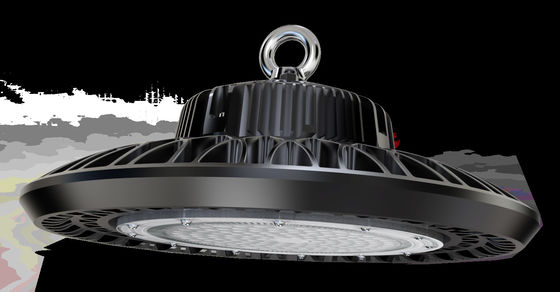

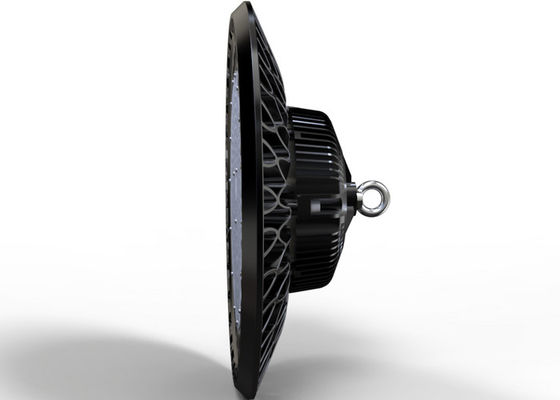

Dualrays HB5 Series UFO LED High Bay Light AC 100V~277V 50/60Hz Die Cast Aluminum Housing

Dualrays HB5 Series UFO LED High Bay Light AC 100V~277V 50/60Hz Die Cast Aluminum Housing

  • Dualrays HB5 Series UFO LED High Bay Light AC 100V~277V 50/60Hz Die Cast Aluminum Housing
  • Dualrays HB5 Series UFO LED High Bay Light AC 100V~277V 50/60Hz Die Cast Aluminum Housing
  • Dualrays HB5 Series UFO LED High Bay Light AC 100V~277V 50/60Hz Die Cast Aluminum Housing
  • Dualrays HB5 Series UFO LED High Bay Light AC 100V~277V 50/60Hz Die Cast Aluminum Housing
Dualrays HB5 Series UFO LED High Bay Light AC 100V~277V 50/60Hz Die Cast Aluminum Housing
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Dualrays Optoelectronics
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-HB150-EGXP
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Price: Negotiated
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Material: Aluminium Alloy Power Effciency: 95%
CRI: >83Ra Warranty: 5 Years
IP Rating: IP66 Life Span: 50,000 Hours
High Light:

led flat panel light fixture

,

high bay led shop lights

Dualrays HB5 Series UFO LED High Bay Light AC 100V~277V 50/60Hz Die Cast Aluminum Housing



UFO LED High Bay Features:



> IP65 and IK10 for all industrial areas of application;
> Driver and housing separated by spacers;
> Adjustable ripple-lens optic with 60°/90°/120° beam angle;
> D-Mark tested for the use in paper production, wood processing etc;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> 5 years warranty;

> Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen
> Reflector : PC reflector with / without cover.pipe mounting
100 Watt UFO Led High Bay Light Optic Lens With 60°/90°/110° Optional
Model No. DR-HB150-EGXP
Rated Power/W 150
Luminous Flux/LM 225,00±5%
Systen Efficiency/LPW 140W
Color Temperature WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Dimming Function 1-10VDC /DALI / Zigbee
Protections Short circuit/Over current/Over voltage/Over temperature
Anti-salty spray Grade A
Color Index >80Ra
Beam Angle Options 60°/120° for option
IP/Rating IP65
AC Input Volage/V AC100~277V 50/60Hz
Power Factor PF>0.95
Starting Time <0.1
LED Driver Meanwell ELG
UGR <25
THD <10%
SDCM <5
Lumen Maintenance @ 6000 hrs >95%
Switching Cycle before Failure 100,000
Installation Option Bracket/Suspending
Surge Protection 10KA 20KV/20KA 20KV
Material AL+PC
Life Span/hrs >50000
Warranty 5 years
Operation Temperature -40 ~ +55℃
Storage Temperature -40 ~ +85℃

140LPW High Efficiency 100W HB5 UFO LED High Bay Light IP65 5 Years Warranty

140LPW High Efficiency 100W HB5 UFO LED High Bay Light IP65 5 Years Warranty

> Shipyards;

> Mines;

> Workshops;

> Warehouse;

> Highway toll stations;

> Gas stations;

> Supermarkets;

> Exhibition center;

140LPW High Efficiency 100W HB5 UFO LED High Bay Light IP65 5 Years Warranty
140LPW High Efficiency 100W HB5 UFO LED High Bay Light IP65 5 Years Warranty
100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee
Character/Power
100W
150W
200W
240W
100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee
A
Ø350mm
Ø350mm
Ø420mm
Ø420mm
B
210mm
210mm
220mm
220mm
100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee
100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee
100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee
100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee
100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee
100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee



100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee
100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

LUMILEDS SMD3030 300W UFO LED High Bay Light 5 Years Warranty
1.What’s Power factor ?
RE: The active power divided by the apparent power (i.e product of the rms input voltage and rms input current of a driver.)

2.What’s Smart Lighting ?
RE: Automated lighting control using sensors and /or scheduling switches.

3.What’s Watt ?
RE: The unit of electrical power as used by an electrical device during its operation. Many lamps come with rating in watts to indicate their power consumption.

4.How to explain “ZigBee“ ?
RE: A low -power ,low date rate, local area wireless network; ideal for lighting control.

5.How to explain “lumen output “ ?
RE: The total lumens emitted of a light source, system, or solution.

6.How to explain “luminous Efficacy“ ?
RE: A measure of how well a light source products visible light expressed as lumens /Watt.

100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
