| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS(OEM/ODM/OBM Available) |
| Certification: | CE,RoHS,TUV/GS,SAA,LM79,LM80 |

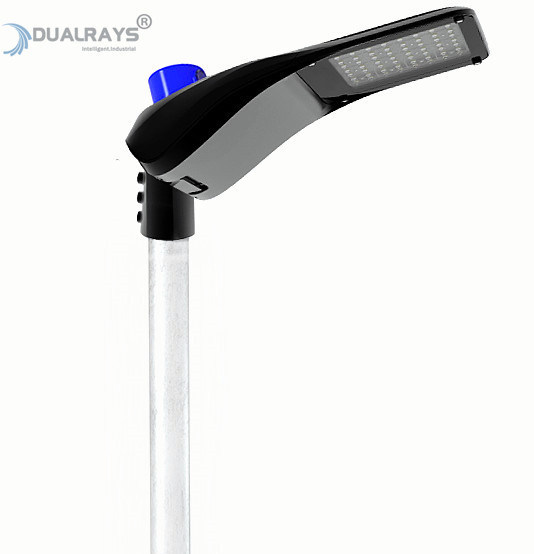

| Model Number: | S4 Series |
| Minimum Order Quantity: | 2PC |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM/ODM/OBM Package Available |
| Delivery Time: | Within 15 Bussiness Days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 20000pcs/month |
| Input Voltage: | AC100~277V 50/60Hz | Power Effciency: | >97% |
|---|---|---|---|
| Power Factor: | 0.95 | Junction Temperature: | <80℃ |
| CRI: | >70Ra | Warranty: | 5 Years(Extention To 7 Years) |
| LED's Brand: | LUMILEDS | Material: | Aluminium Alloy |
| IP Rating: | IP66 | Life Span: | 60,000 Hours (L80/B10) |
| Highlight: | led cobra head street light,warm white led street lights |
||
| General System |
| Housing Material: High pressure die-cast ADC12 aluminium EN AC-43000, EN AC-43100, EN AC-43400, EN AC- 44100,EN AC-47100 according to the UNE EN 1706 standard powder coated |
| Screen: Flat tempered glass 4mm thickness high transparency, Polycarbonate, UV resistant |
| Diffuser Material: Injected PC according to the UNE-EN ISO 294-2:2019 standard, UV filter conditional(IK08) |
| Housing Color: Metallic Grey (RAL9006), Other colors optional |
| Sealing Gaskets: Silicone foam |
| LEDs Thermal Dissipation: Through finless ADC12 AL luminaire body, without conductive fluids. Passive convection dissipation ensuring thermal contact with the LED modules through a high-conductivity Lead-free solder paste |
| Brackets: ø42 - ø63mm, spigot entry: 100mm |
| Inclination: Adjustable Without tools at 0°, 5°, 10°, 15° (posttop) | 0°, -5°, -10°, -15° (side-entry) |
| Finish: Polyester powder paint coating, electrostatically sprayed and sublimated in the oven, Resistant to corrosion |
| Recommended Mounted Height: 5 - 12 meters |
| Maintenance: Maintenance Easy, tool-less opening. Modular concept for easy component replacement: LEDs, drivers, SPD |
| Driver: Constant current adjustable and programmable driver. Embedded in the luminaire, pre-wired on a galvanised steel plate |
| Dimming Control: ON-OFF | 1-10V dimming | DALI-2 | Zigbee |
| IP (Ingress Protection Rating): IP65 |
| IK (Impact Resistance): IK08 |
| Protective Class: Class Ⅰ |
| Installation: Side-entry | post-top | on mast Toolless at 0°, 5°, 10°, 15° (post top) | 0°, -5°, -10°, -15° (side-entry) |
| Cable Entry: H05RN-F 3*1.0mm2 | H05RN-F 5*1.0mm2 (Max section 4mm2) |
| Surge Voltage Resistance: 6KV 1.2/50µs |
| SPD (optional): 10kV-10kA, type II, with LED signal and thermo fuse to disconnect load at the end of life. |
| Smart Function: WL(Wireless single point communication system) | DALI(Digital dimming interface) | NEMA(Socket 3/5/7 pin (ANSI C136.41) | ZHAGA(Socket 4 pin (ZHAGA Book 18) | PHOTOCELL |
| Electrical System |
| Main Voltage: 200~240VAC/ 50~60Hz | 100~277VAC/ 50~60Hz | 277~480VAC/ 50~60Hz |
| Power Factor (PF): ≥0.95 |
| Total Harmonic Distortion (THD): ＜10% |
| Output Type: Non-SELV(non-isolated) |
| Flicker Factor: <1% |
| Driver efficacy: >90% |
| Energy class: A++ IPEA>1.15 |
| Photometry System |
| LEDs: SMD3030 / SMD5050 Optional |
|
CCT (Correlated Color Temperature): Single CCT (3000K | 4000K | 5000K | 5700K |6500K) |
| CRI (Color Rendering Index): >70Ra for standard (>80Ra for higher CRI available) |
| Photobiological Safety: RG0 (exempt of risk) |
| Upward light output ratio: ULOR 0% |
| Downward light output ratio: DLOR 100% |
|
Glare index: Between D5 and D6 (depending on the light distribution) |
| Luminous intensity category: Between G*4 and G*6 (depending on the light distribution) |
| Luminous flux: CIE nº3 |
| SDCM (Standard Deviation of Color Matching): ＜6 |
| Beam Angle: T1 | T2L | T2M | T3M | T4M | T5M |
| Average Luminaire Useful Lifetime: 60.000 hours (L80B10) |
| Lumen Maintenance at e.o.l.: >70% |
|
Luminous Efficacy: 130LPW (PROLine) | 160LPW (PRIMELine) Optional |
| Rated Power: 30W 60W 90W 120W 150W 180W |
|
Lumens Delivered @ 5000K, CRl>70 (PRO) 3.600lm 7.200lm 10.900lm 14.400lm 18.000lm 21.600lm |
| (PRIME) 4.500lm 9.000lm 13.500lm 18.000lm 22.500lm 27.000lm |
| Operation Condition |
| Operation Temperature / Humidity: -20~ +50℃ (-4°F ~ 122°F) / 5~85% RH, not condensed |
| Storage Temperature / Humidity: -40~ +80℃ (-40°F ~ 176°F) / 5~85% RH, not condensed |
| Average LED Useful Time L80B10: ≥100.000H |
| Rated Nominal Lifetime (Tp <70℃): Up to 100,000H |
| Driver MTBF: 500.000H,MIL-HDBK-217F(25℃) |
| Vibration Resistant: 10~500Hz,5G 12min / 1cycle,period for 72min. Each along X,Y,Z axes |
| Acoustic Noise: ＜25dB (30cm disstance, Normal operation) |
| Guarantee: 5 Years (Extensible up to 7 years) |
| Certifications |
| Global Certificate: ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium |
| Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471 |
| EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384 |
| Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11 |
| Power/W Inner Box Outer Carton QTY”/CTN Unit N.W G.W/Carton |
| 100 260x260x150mm 790x273x282mm 5PCS 2.4Kg 14.5Kg |
| 150 300x300x150mm 790x313x322mm 5PCS 2.6Kg 14.9Kg |
| 150 350x350x150mm 790x363x372mm 5PCS 2.9Kg 15.6Kg |
* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;
* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;
* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.
Shipment:
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q1: What is the warranty for the S4 LED Street light?
Thank you for your using DUALRAYS LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
