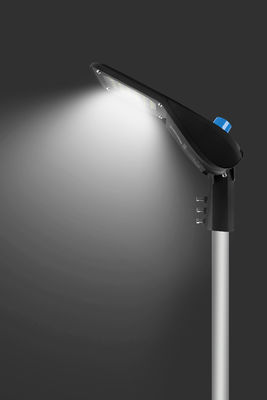

Name: IP66 Protection Outdoor LED Street Light 140lm/w AC100~277V High Output Lighting Efficiency
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: S4 Series
Availability: InStock

Home Products LED Street Light

IP66 Protection Outdoor LED Street Light 140lm/w AC100~277V High Output Lighting Efficiency

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Dualrays
Certification:	CE,RoHS,TUV/GS,LM79,LM80
Model Number:	S4 Series

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiated
Packaging Details:	Netural Package,color box package
Delivery Time:	5-15 business days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100-277V 50-60Hz	Power Effciency:	95%
Warranty:	5 Years	Dimming(Optional):	0/1-10V/PWM/DALI/Zigbee
LEDs Light Source:	SMD5050	Beam Angle(Optional):	Type I,Type II,Type III,Type IV,Type V
Highlight:	warm white led street lights , decorative street light

IP66 Protection Outdoor LED Street Light 140lm/w AC100~277V High Output Lighting Efficiency

Detailed Product Description

Material:	Aluminium Alloy+PC	LEDs Light Source:	SMD5050
Input Voltage:	AC100-277V 50-60Hz	Power:	30W/60W/90W/120W/150W/180W
CRI:	>80Ra	SDCM:	<6
Dimming(Optional):	0/1-10V/PWM/DALI/Zigbee	CCT:	3000K/4000K/5000K/5700K/6500K
Pipe Diameter:	φ60mm	Beam Angle(Optional):	Type I,Type II,Type III,Type IV,Type V

IP66 Protection Outdoor LED Street Light 140lm/w AC100~277V High Output Lighting Efficiency 0

> Rugged die-cast aluminum housing with corrosion resistant hardware;

> Adopting SMD5050 LEDs light source;

> IP66 and IK10 for street lighting application;

> Intelligent dimming control available,photocell controller is available;

> Easy to disassemble and assemble, don't need any additional tools;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

* Avenues.

* Walkways.

* Roadway.

* Public Square.

* Parking lot.

* School.
* Sport and Stadium.

30W/60W Version
IP66 Protection Outdoor LED Street Light 140lm/w AC100~277V High Output Lighting Efficiency 4

90W,120W/150W/180W Version

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
IP66 Protection Outdoor LED Street Light 140lm/w AC100~277V High Output Lighting Efficiency 11

Packaging Information

Shipment

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q1: What is the warranty for the LED street light?

RE: For the LED street light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?

RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:

Warm white = 3000±200K

Natural white = 4000±200K

Pure white = 5000±200K

Cool white = 5700±200K

Q3: Is there a MOQ?

RE: 2PCS

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q7: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q8: What‘re the chips and drivers used?

RE: High brightness NICHIA LEDs light source,Meanwell drivers for standard configuration.

Q9: What Optics available?

RE: LED Street Light: Type I, Type II, Type III, Type IV, Type V for option.

Q10: What is the CRI?

RE: Ra>70, Ra>80 optional.

Q11: IP Rating?

RE: IP66.

Q12: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q13: Finish color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q14: Dimming functions?

RE: 1-10V / PWM / Resistance / Timer/ DALI dimmable driver available.

Q15: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q16:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

IP66 Protection Outdoor LED Street Light 140lm/w AC100~277V High Output Lighting Efficiency 19

IP66 Protection Outdoor LED Street Light 140lm/w AC100~277V High Output Lighting Efficiency 20

IP66 Protection Outdoor LED Street Light 140lm/w AC100~277V High Output Lighting Efficiency 21

IP66 Protection Outdoor LED Street Light 140lm/w AC100~277V High Output Lighting Efficiency 22

IP66 Protection Outdoor LED Street Light 140lm/w AC100~277V High Output Lighting Efficiency 23

IP66 Protection Outdoor LED Street Light 140lm/w AC100~277V High Output Lighting Efficiency 24

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED will serve you with heart and soul!
