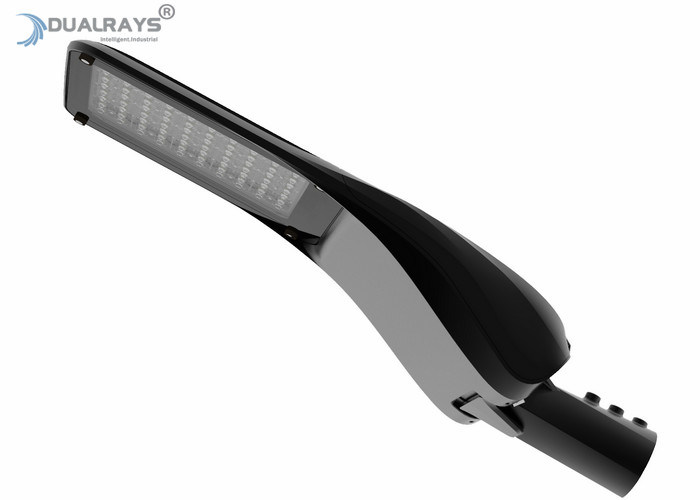

Dualrays 120W F4 Series IP66 Protection Led Street Lights for Sport Stadium with 5 Years Warranty

Dualrays 120W F4 Series IP66 Protection Led Street Lights for Sport Stadium with 5 Years Warranty

  • Dualrays 120W F4 Series IP66 Protection Led Street Lights for Sport Stadium with 5 Years Warranty
  • Dualrays 120W F4 Series IP66 Protection Led Street Lights for Sport Stadium with 5 Years Warranty
  • Dualrays 120W F4 Series IP66 Protection Led Street Lights for Sport Stadium with 5 Years Warranty
Dualrays 120W F4 Series IP66 Protection Led Street Lights for Sport Stadium with 5 Years Warranty
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Dualrays
Certification: CE,RoHS,TUV/GS,LM79,LM80
Model Number: S4 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiated
Packaging Details: Netural Package,color box package,1PCS/CTN,590(L)*380(W)*200(H)mm
Delivery Time: 50000PCS/Month
Payment Terms: L/C, T/T, Western Union, Paypal
Contact Now
Detailed Product Description
Input Voltage: AC95V-277V Power Effciency: 95%
Power Factor: 0.95 Junction Temperature: <80℃
CRI: >70Ra Warranty: 5 Years
LED's Brand: LUXEON Material: Aluminium Alloy
IP Rating: IP66 Life Span: 50,000 Hours
High Light:

led cobra head street light

,

warm white led street lights

Dualrays 120W F4 Series IP66 Protection Led Street Lights for Sport Stadium with 5 Years Warranty



Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66

Dualrays 120W F4 Series Outdoor LED Street Light--Details:
> Excellent heat dissipation with Die-casting Al ;
> Surge Protection: 6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional;
> IP66 and IK10 for outfoor street lighting application;
> Power factor>95%;
> Class I Protection;
> Driver and housing separated by spacers;
> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> CE,RoHS listed,5 years’ warranty;
> Adopting SMD3030 LEDs light source, high output lighting efficiency 140lm/W, high Color Rendering Index (CRI>70/80Ra)

Dualrays 120W F4 Series Outdoor LED Street Light--Options:
> Driver: Meanwell ELG/HLG, Sosen;
> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;
> 10KA SPD,20KA Meanwell SPD optional;
> Black RAL9017/ White RAL9016
> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;
> Customized supported for special projects;
> Surge Protection: 6~10KV SPD built in dirver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional

Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66
* Roadways.
* Avenues.
* Walkways.
* Loading Area.
* Parking lot.
* Playground.
* Sport and Stadium.


Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66



Model No. DR-ST180-DGX
Rated Power/W 120W
Systen Efficiency/LPW 150LPW
Lumen Output/ Im 18.000+5%
Rated Input Voltage/V AC100~277V 50/60Hz
SDCM <6
CCT/K 3000K/4000K/5000K/5700K/6500K
Color Index 70Ra (>80Ra for Option)
Power Factor >0.95
THD <10%
Beam Angle (Optional) Type I/ Type II (Long and medium)/ Type III (Medium)/Type IV (Medium)/Type V (Medium)
UGR <25
Surge Protection 6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional
Dimming options 0/1-10V/PWM/DALI/Zigbee
Protection Class Class I
Finishing Color (Optional) Black RAL9017/ White RAL9016
Material Aluminum+PC+Toughened Glass
Pipe Diameter ø60mm
Certificate CE,ROHS,TUV/GS,LM79,LM80



Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66
30W/60W Version
Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66
90W,120W/150W/180W Version
Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66

Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66

Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66

Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66
Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66
Packaging Information
Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66
Shipment
Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
