Name: Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: S4 Series
Availability: InStock

Home Products LED Street Light

Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Dualrays
Certification:	CE,RoHS,TUV/GS,LM79,LM80
Model Number:	S4 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiated
Packaging Details:	Netural Package,color box package,1PCS/CTN,590(L)380(W)200(H)mm
Delivery Time:	50000PCS/Month
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Input Voltage:	AC95V-277V	Power Effciency:	95%
Power Factor:	0.95	Junction Temperature:	<80℃
CRI:	>70Ra	Warranty:	5 Years
LED's Brand:	LUXEON	Material:	Aluminium Alloy
IP Rating:	IP66	Life Span:	50,000 Hours
Highlight:	warm white led street lights , decorative street light

Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty

Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty 0

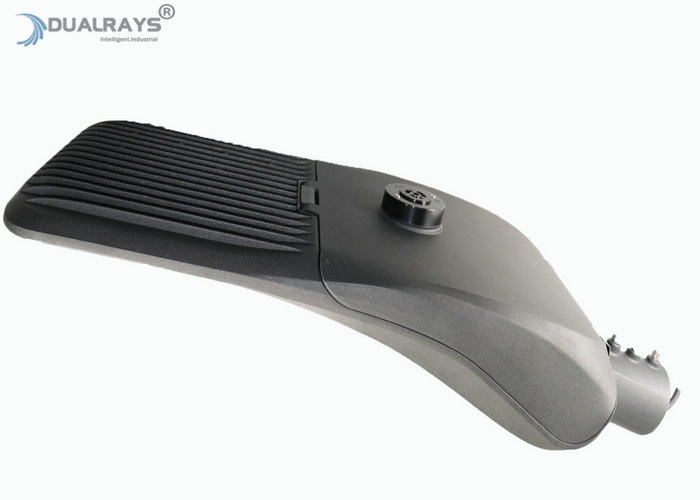

Dualrays 150W High Power F4 Series Outdoor LED Street Light--Details:

> Excellent heat dissipation with Die-casting Al ;

> Surge Protection: 6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional;

> IP66 and IK10 for outfoor street lighting application;

> Power factor>95%;

> Class I Protection;

> Driver and housing separated by spacers;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> CE,RoHS listed,5 years’ warranty;

> Adopting SMD3030 LEDs light source, high output lighting efficiency 140lm/W, high Color Rendering Index (CRI>70/80Ra)

Dualrays 150W High Power F4 Series Outdoor LED Street Light--Options:

> Driver: Meanwell ELG/HLG, Sosen;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;

> 10KA SPD,20KA Meanwell SPD optional;

> Black RAL9017/ White RAL9016

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;

> Customized supported for special projects;

> Surge Protection: 6~10KV SPD built in dirver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty 2

Model No.	DR-ST150-DGX
Rated Power/W	150W
Systen Efficiency/LPW	150LPW
Lumen Output/ Im	22.500+5%
Rated Input Voltage/V	AC100~277V 50/60Hz
SDCM	<6
CCT/K	3000K/4000K/5000K/5700K/6500K
Color Index	70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle (Optional)	Type I/ Type II (Long and medium)/ Type III (Medium)/Type IV (Medium)/Type V (Medium)
UGR	<25
Surge Protection	6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional
Dimming options	0/1-10V/PWM/DALI/Zigbee
Protection Class	Class I
Finishing Color (Optional)	Black RAL9017/ White RAL9016
Material	Aluminum+PC+Toughened Glass
Pipe Diameter	ø60mm
Certificate	CE,ROHS,TUV/GS,LM79,LM80

Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty 3
30W/60W Version

90W,120W/150W/180W Version

Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty 6

Packaging Information
Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty 10

Shipment
Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty 11

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty 12

Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty 13

Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty 14

Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty 15

Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty 16

Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty 17

Dualrays 150W High Power F4 Series LED Street Lights Outdoor Multiple Beam Angle Optional 150LPW 5 Years Warranty 18
