Industrial Plastic Housing Tri-Proof LED Light IP65 Flicker Free With Excellent Heat Dissipation
Detailed Product Description
> High Brightness SAN'AN SMD2835 LEDs, BOKE High PF Flicker-free Driver DIP Switch Power
> Full Plastic PC Housing and Cover,Al Profile PCBA Holder Inside,Eco and Environment Friendly;
> IP65 / IK08 Protection;

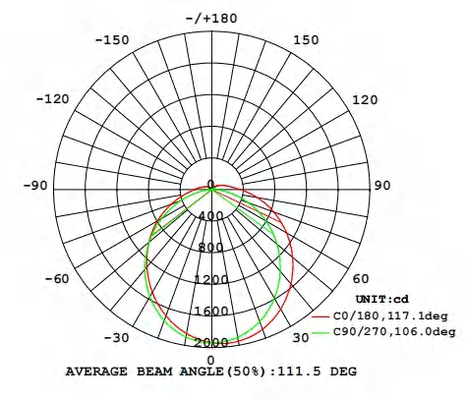

> 120°beam angle;

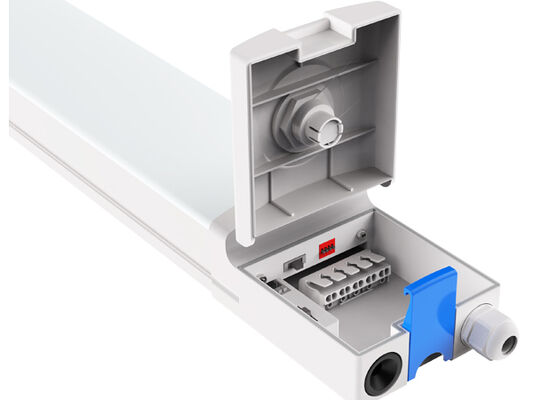

> Single or Double Wiring Optional,Linkabkle Thrugh Double End Wiring;
> Multiple Installations: Suspension, Wall Mounting;
> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;
> No UV or IR and completely mercury free;
> L70/B20 @ 54.000h;
> Customized supported for special projects;
1. Single or Double wiring,backside cable output avaialable;

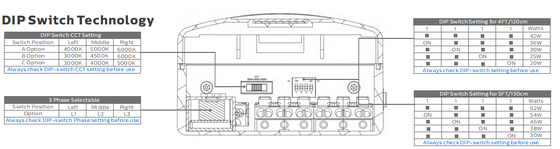

2. DUALRAYS Flicker-free Driver,DIP Switch Power Adjustment available;
4. IP65, CRI>80Ra;
5. CE,RoHS approved;
6. Customized supported for special projects.
1. Replacement for fluorescent NCF
2. Car parks
3. Indoor Location
4. Airport hall

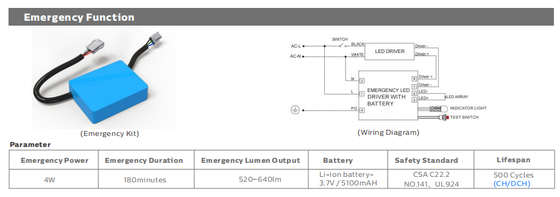

1. Interior circuit with emergency device has been already connected;
2. 4 wire output.(EuMarket:Blue-Neutralwire/Black-Livewire/Brown-Switchwire/Yellow&Green-Earthwire)
3. Indicator color(Green–main power, Yellow–malfunction,Red-Charging)
4. Battery can be recharged at least 500 times.In order to maintain the battery,it must be discharged every 3 months.
MSDS Test Report is available.
(II) 0-10V Dimming

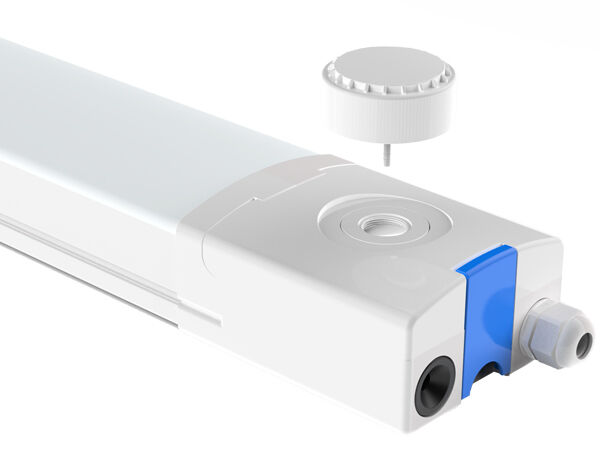

(II) Microwave Sensor 2 Stage Dimming Type
a. With 5.8G Hz microwave technology, stable detection performance and long life time.
b. Detection zone Max. is 16m*8m (D*H) MC003V/D.
Stand-by dimming level in 10% / 20% / 30% / 40% / 50%.
Stand-by period has 5s / 5min / 10min / 30min / 1h / Disable.
c. Water proof sensor with IP65 rating.
d. Built-in adjustable daylight sensor.
e. 2 step dimming function 100% ---> low light (Never turn off)
f. 3 step dimming function
100% ---> low light(10%,20%,30%,40%,50%) ---> off
g. Automatic dimming when used in combination with 1-10V dimmable control gears.
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q1: What is the warranty for the D1 LED triproof light?
RE: For the D1 Series LED triproof light,Dualrays provide 3 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2: What is colour temperature?
RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:
Warm white = 3000±200K
Natural white = 4000±200K
Pure white = 5000±200K
Cool white = 5700±200K
Q3: Is there a MOQ?
Q4: What is the Lead time?
RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.
Q5: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.
Q6: Do you offer mounting accessories?
Q14: Is there cheap shipping cost to import to our country?
RE: Yes, please contact us for details.
Q7: Do you offer OEM or ODM?
RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
1. We can provide you with our present products with your own label;
2. We can modify our products as your request;
3. We can even develop totally new products based on your design;
Q8: What‘re the chips and drivers used?
RE: High brightness San‘an SMD2835 LEDs light source,flicker free drivers for option.
Q9: What is the CRI?
Q12: Finish color?
RE: Ra>80 for standard.
Q10: IP Rating?
Q11: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).
RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.
Q13: Dimming functions?
RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.
Q15:Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
