Name: Industrial UFO LED High Bay Light 100W 150W 200W 240W 300W Support Pluggable Motion Sensor And Daylight Sensor
Brand: DUALRAYS
SKU: DR-HB200-EG1
Price: 1.00 USD
Availability: InStock
Rating: 5 (156 reviews)

Home Products UFO LED High Bay Light

Industrial UFO LED High Bay Light 100W 150W 200W 240W 300W Support Pluggable Motion Sensor And Daylight Sensor

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB200-EG1

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

System Watts:	200W	IK Rating:	IK10
IP Rating:	IP65	Operation Temperature:	-40℃~+50℃
THD:	<10%	UGR:	<25
High Light:	led flat panel light fixture , wireless led outdoor flood lights

Industrial UFO LED High Bay Light 100W 150W 200W 240W 300W Support Pluggable Motion Sensor And Daylight Sensor

UFO LED High Bay Quick details:

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

> D-Mark tested for the use in paper production, wood processing etc;

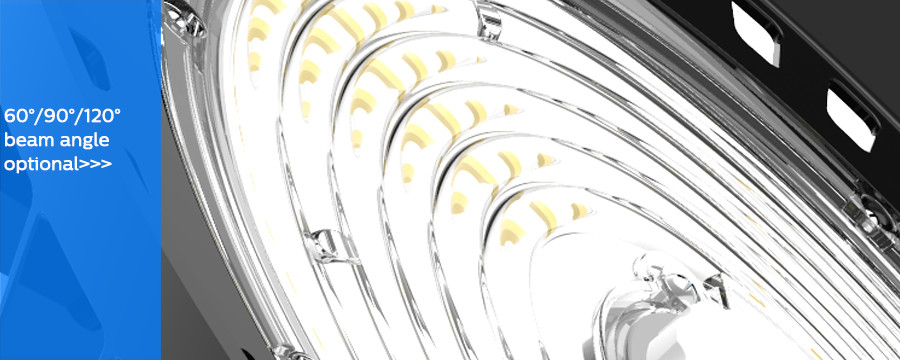

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> IP65 and IK10 for all industrial areas of application;

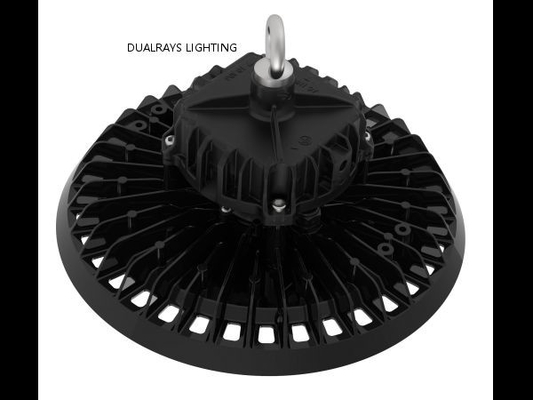

> Die-casting Al for excellent heat dissipation;

> Driver and housing separated by spacers;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Item	Description
System Watts/W	200 W
Lumen Output/lm	28000±5%
Rated Input Voltage	AC 100~277V 50/60Hz
LEDs Light Source	SMD3030
SDCM	<6
Power Factory	>0.95
THD	<10%
Optic Lens	60/90/110 Degree
LED Chips	SMD3030 PHILIP LUMILEDS LEDs

140LPW High Efficiency 100W HB5 UFO LED High Bay Light IP65 5 Years Warranty

Industrial UFO LED High Bay Light 100W 150W 200W 240W 300W Support Pluggable Motion Sensor And Daylight Sensor 1

Character/Power	100W	150W	200W	240W
A / mm	Φ253	Φ308	Φ354	Φ405
B / mm	149	155	160	168

Industrial UFO LED High Bay Light 100W 150W 200W 240W 300W Support Pluggable Motion Sensor And Daylight Sensor 3

Industrial UFO LED High Bay Light 100W 150W 200W 240W 300W Support Pluggable Motion Sensor And Daylight Sensor 4

Industrial UFO LED High Bay Light 100W 150W 200W 240W 300W Support Pluggable Motion Sensor And Daylight Sensor 5

Industrial UFO LED High Bay Light 100W 150W 200W 240W 300W Support Pluggable Motion Sensor And Daylight Sensor 6

Industrial UFO LED High Bay Light 100W 150W 200W 240W 300W Support Pluggable Motion Sensor And Daylight Sensor 7

140LPW High Efficiency 100W HB5 UFO LED High Bay Light IP65 5 Years Warranty

> Shipyards;

> Mines;

> Workshops;

> Warehouse;

> Highway toll stations;

> Gas stations;

> Supermarkets;

> Exhibition center;

100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

1.How long for the delivery time?

RE: 3 to 5 working days for samples, massive orders is within 10-15 working days according to the quantity.30 days for customized products with opening new mold.Urgent delivery time requirement is available,we will try our best to help you.

2.How to explain “illuminance“?

RE: The intensity of light falling on a surface area. If the area is measured in square feet, the unit of illuminance is footcandles(fc). If measured in square metres, the unit of illuminance is Lux.

3.What’s the meaning of “Beam Angle “?

RE: The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.

4.Could Dualrays provide OEM service?

RE: yes,we can offer OEM services four our customers. We can print your own logo on products,packaging and customized packaging box.

5.What’s Smart Lighting ?

RE: Automated lighting control using sensors and /or scheduling switches.

100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
