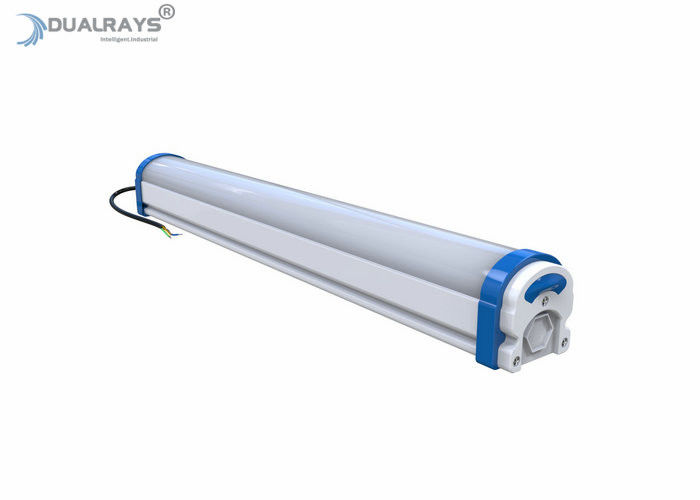

Name: IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: D2 Series
Availability: InStock

Home Products LED Moisture-proof Lamp

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	D2 Series

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiated
Packaging Details:	Netural Package,color box package
Delivery Time:	5-15 business days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Material:	PC	Power Factor:	>0.95
IP/Rating:	IP66	Color Index:	>80Ra
Warranty:	3 Years	Life Span:	50,000 Hours
Highlight:	explosion proof led lights , vapor proof led light

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 5 Years Warranty

Detailed Product Description

Material:	PC+PC	UGR:	<22
Color Index:	>80Ra	IP/Rating:	IP66
Power Factor:	PF>0.95	Sensor(Optional) :	Microwave Sensor
Switching Cycle before Failure:	100,000	Warranty:	3 Years

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty 0

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty 1

1. BOKE flicker-free constant current driver is isolated away from the heat source of the LEDs,keeps the stability and performance of the driver;

2. IP66 and IK10 Protection;

3. Water-proof; Dust-proof; Damp-proof; Vapor-proof;

4. Installation: Suspension, Ceiling Mounted and adjustable surface mount;

5. CE,RoHS,LM79,LM80 listed,3 years guarantee;

6. L80/B10 @ 50.000h;

1. Workshops and warehouse
2. Exhibition center
3. Residential
4. Airport hall

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty 3

Character/Length	2ft	4ft	5ft
A	600mm	1200mm	1500mm
B	74mm	74mm	74mm
C	74m	74mm	74mm

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty 5

(I) Emergency Function

Model No.	Emergency Time (Hours)	Emergency Power (W)	Battery Parameters
DR-TPL020-BG21	3/2/1 hours for option	10W	7.4V/4400/3000/1500mAh Lithium Battery
DR-TPL040-BG41	3/2/1 hours for option	10W	11.1V/6000/4000/2000mAh Lithium Battery
DR-TPL050-BG51	3/2/1 hours for option	10W	11.1V/8800/6000/3000mAh Lithium Battery

1. Interior circuit with emergency device has been already connected;

2 4 wire output.(EuMarket:Blue-Neutralwire/Black-Livewire/Brown-Switchwire/Yellow&Green-Earthwire)

3 Indicator color(Green–main power, Yellow–malfunction,Red-Charging)

4 Battery can be recharged at least 500 times.In order to maintain the battery,it must be discharged every 3 months.
Remark: MSDS Test Report is available.

(II) 0-10V Dimming

(II) Microwave Sensor 2 Stage Dimming Type

a. With 5.8G Hz microwave technology, stable detection performance and long life time.

b. Detection zone Max. is 16m*8m (D*H) MC003V/D.

Stand-by dimming level in 10% / 20% / 30% / 40% / 50%.

Stand-by period has 5s / 5min / 10min / 30min / 1h / Disable.

c. Water proof sensor with IP65 rating.

d. Built-in adjustable daylight sensor.

e. 2 step dimming function 100% ---> low light (Never turn off)

f. 3 step dimming function

100% ---> low light(10%,20%,30%,40%,50%) ---> off

g. Automatic dimming when used in combination with 1-10V dimmable control gears.

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty 9

Packaging Information

Size	Net Weight/PCS	Outer Carton Size	G.W	Quantity/CTN
2ft	0.9kg	L670xW440xH200mm	13.2kg	10PCS
4ft	1.8kg	L1270xW360xH200mm	17.5kg	8PCS
5ft	2.1kg	L1570xW360xH200mm	20.6kg	8PCS

Shipment
IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty 10

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty 11

Q1: What is the warranty for the D2 LED triproof light?

RE: For the D2 Series LED triproof light,Dualrays provide 3 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?

RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:

Warm white = 3000±200K

Natural white = 4000±200K

Pure white = 5000±200K

Cool white = 5700±200K

Q3: Is there a MOQ?

RE: 10PCS

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q7: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q8: What‘re the chips and drivers used?

RE: High brightness San‘an SMD2835 LEDs light source,flicker free drivers for option.

Q9: What is the CRI?

RE: Ra>80 for standard.

Q10: IP Rating?

RE: IP65.

Q11: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q12: Finish color?

RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.

Q13: Dimming functions?

RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.

Q14: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q15:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty 14

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty 15

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty 16

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty 17

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty 18

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty 19

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

IK10 Protection LED Tri-Proof Light With Perfect Heat Dissipation 3 Years Warranty 21

Marketing Department

Tel: 0086-755-2306 6948

Fax: 0086-755-6164 1072

Zip Code: 518103

Contact person: Vera Fu
Email: sales06@dualrays.com

Add: 3rd Floor,Building A3 | Tianrui Industrial Park| #35,Fuyuan 1st Road,Fuyong Town,Bao'an Dist | Shenzhen 518103
