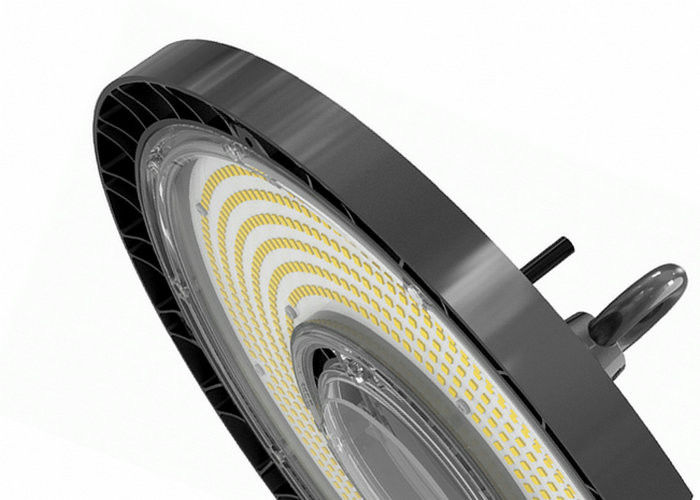

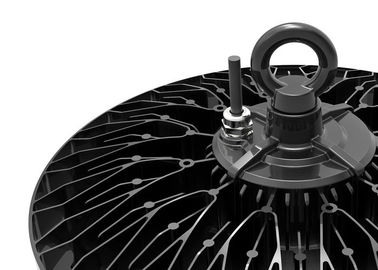

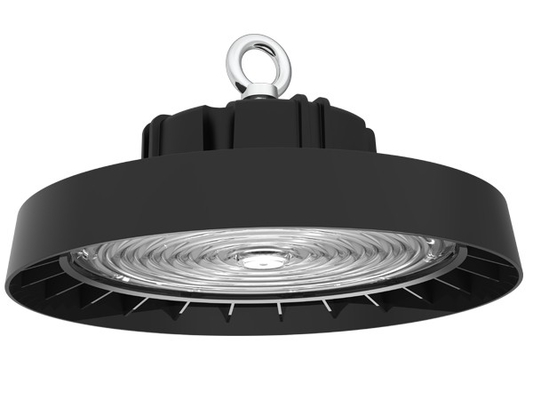

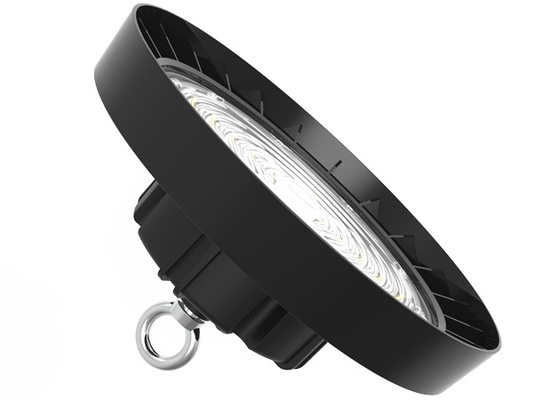

Name: Dualrays 150W HB3 LED High Bay Light 160LPW High Efficiency 50000hrs Long Life Span
Brand: DUALRAYS
SKU: DR-HB150-CG2
Price: 1 USD
Availability: InStock
Rating: 5 (159 reviews)

Home Products UFO LED High Bay Light

Dualrays 150W HB3 LED High Bay Light 160LPW High Efficiency 50000hrs Long Life Span

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB150-CG2

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Material:	Aluminium Alloy	Rated Power:	100-240W
Rated Lumen:	16,000-38,400lm	CCT:	3000/4000/5700/6500K±200K
CRI:	>83Ra	Warranty:	5 Years
LEDs Driver:	MOSO/SOSEN	Life Span:	50,000 Hours
High Light:	led flat panel light fixture , high bay led shop lights

Dualrays 150W HB3 LED High Bay Light 160LPW High Efficiency 50000hrs Long Life Span

Dualrays 150W HB3 LED High Bay Light 160LPW High Efficiency 50000hrs Long Life Span 1

Dualrays HB3 Series UFO LED High Bay Light-- Data Sheet

Model No	DR-HB200-CGXP
Rated Power	150W
LEDs Typ/Qty	322
Luminous Flux	21,000±5%
Efficiency	160LPW
Color Temperature	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Dimming Function	1-10VDC /DALI / PIR Sensor
Protections	Short circuit/Over current/Over voltage/Over temperature
Color Index	>80Ra
Beam Angle	60°/90°/120° for option
IP/Rating	IP65
AC Input Vol	AC100~240V 50/60Hz
Power Factor	PF>0.95
Starting Time	<0.1
Lumen Maintenance @ 6000 hrs	>95%
Switching Cycle before Failure	100,000
Life Span	50,000hrs
Warranty	5 years

Dualrays HB3 Series UFO LED High Bay Light--Features:

1. Angle adjustable, beam angle of lens cover for optional: 60/90/120 degree.

2. Die casting Aluminum shell, good mechanical strength and heat dissipation, surface anti-corrosion coating processing, high anti-corrosion grade WF2,can be used indoor and outdoor prevent corrosion environment.

3. High quality DUALRAYS own-developed non-isolated power supply, AC100V~277V, 50/60Hz input voltage, constant voltage or constant current output, quick responds,no flicker,lightning protection, PFC function available.

4. Rod mounting, hook with chain mounting and heavy duty steel yoke mounting are available;

5. With high-strength tempered glass and die-casting Aluminum shell, high shock-proof level IK08;

6. DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control;

7. CE,RoHS listed,5 years guarantee;

Dualrays HB3 Series UFO LED High Bay Light--Options:

> Driver: DUALRAYS Own-developed built-in driver,slim design,durable and compact.

> Controls and Dimming Zigbee wireless control / 1-10V Dimming / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

Dualrays 150W HB3 LED High Bay Light 160LPW High Efficiency 50000hrs Long Life Span 3

Dualrays 150W HB3 LED High Bay Light 160LPW High Efficiency 50000hrs Long Life Span 5

Character/Power	100W	150W	200W
A	Ø322mm	Ø322mm	Ø322mm
B	128mm	128mm	128mm

Dualrays 150W HB3 LED High Bay Light 160LPW High Efficiency 50000hrs Long Life Span 7

Dualrays 150W HB3 LED High Bay Light 160LPW High Efficiency 50000hrs Long Life Span 9

DALI Device
Dualrays 150W HB3 LED High Bay Light 160LPW High Efficiency 50000hrs Long Life Span 16

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Dualrays 150W HB3 LED High Bay Light 160LPW High Efficiency 50000hrs Long Life Span 20
