Name: 500W Modular LED Sport Light with Zigbee Wireless Control and IP66 Rating for Outdoor Sports
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-SFL500-DGX
Availability: InStock

Home Products LED Sport Light

500W Modular LED Sport Light with Zigbee Wireless Control and IP66 Rating for Outdoor Sports

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM/ODM/OBM Available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-SFL500-DGX

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiated After Inquiry
Packaging Details:	Netural Package,OEM/ODM/OBM Package Available,9PCS/CTN
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10000PCS/Month

Contact Now

Detailed Product Description

Material:	Aluminum+PC	Input Voltage:	100~277VAC/ 50~60Hz \| 277~480VAC/ 50~60Hz
LEDs:	SMD3030 / SMD5050 Optional	Optics:	30°/60°/90°/120°Symmetric,4921°/5440°/90110°/70140°/80140°/14350/13678° / 14350°Asymmetric,45°polarized,60°polarized(developing)
IP Rating:	IP66	CCT:	3000/4000/5000/5700K±300K
Recommended Mounted Height:	5 - 20 Meters	Certificate:	CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available
Installation(Optional):	Recreational Sports Lighting Applications (Football, Hockey, Basketball, Golf,Tennis,etc)	Guarantee:	5 Years(Extensible Up To 7 Years)
Highlight:	Zigbee wireless control LED sport light , led stadium floodlights , 500W LED sport light

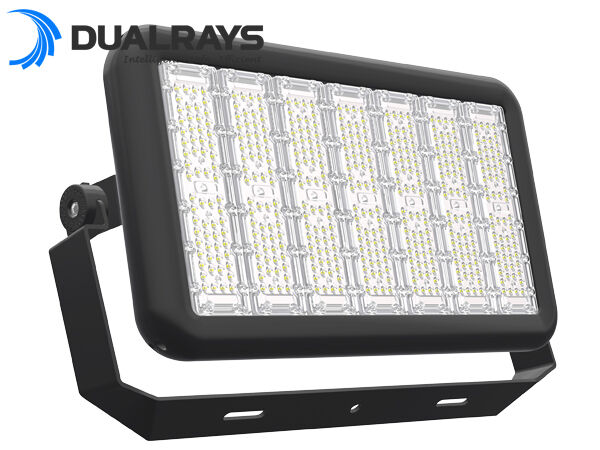

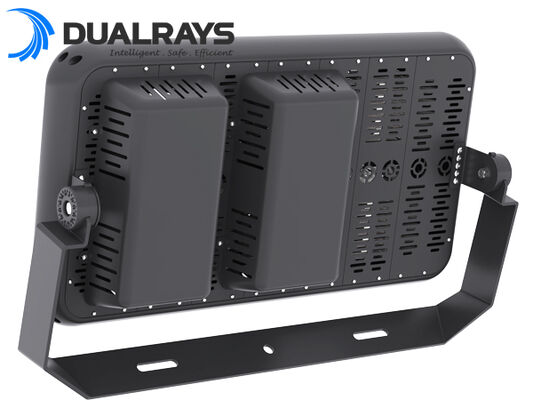

500W SPL4 Modular LED Sport Light

High-performance 500W LED sport light designed to replace 1000W metal halide fixtures, featuring smart Zigbee wireless control and modular design for superior sports and high mast lighting applications.

Product Overview

The SPL4 LED Sport Light combines modern streamline design with professional symmetric/asymmetric and polarized optics, making it ideal for airports, ports, sports centers, skyscraper facade lighting, and similar applications. With robust construction, long outdoor service life, and excellent energy-saving performance, this fixture delivers high consistency and high-CRI white light output up to 84,000 lumens.

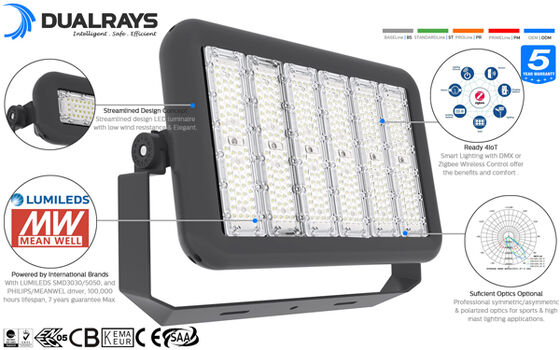

Key Features

High Brightness SAN'AN LUMILEDS LUXEON SMD3030 2D / SMD5050 LEDs
Meanwell XLG / PHILIPS Driver Optional
Precision Integrated Die-casting ADC12 AL with Excellent Thermal Conductivity
IP65 / IK10 Protection Rating

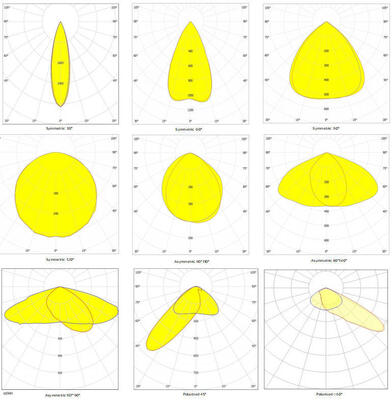

Multiple Optical Options: 30°/60°/90°/120° Symmetric, various asymmetric and polarized optics

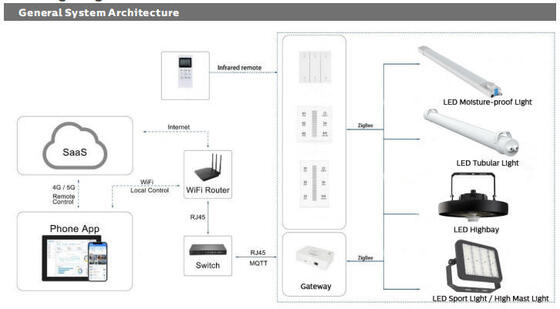

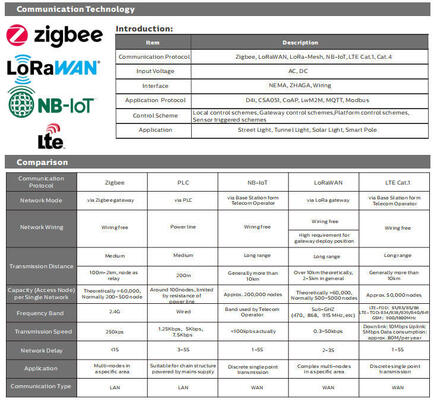

Intelligent Control Systems: 1-10V, DALI, DMX512, Zigbee
No UV or IR emission, completely mercury free
L80/B10 @ 100,000 hours lifetime
Customization support for special projects

Configuration Options

Driver: Meanwell, SOSEN, PHILIPS, or DURALYS own-developed driver

LEDs: LUMILEDS or SAN'AN LEDs Optional

Efficiency: 130LPW or 160LPW Optional

Controls and Dimming: 1-10V, DALI, DMX512, Zigbee

Optical Lens: Multiple symmetric, asymmetric, and polarized options available

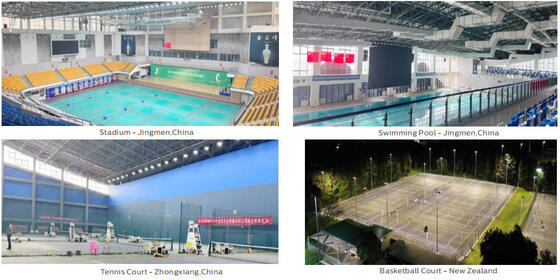

Applications

Apron lighting for airports and harbors
Recreational sports lighting (Football, Hockey, Basketball, Golf, Tennis)
High mast area lighting
Large building facade lighting
Parking and industrial areas
Roundabouts and motorway junctions

Technical Specifications

General System

Housing Material	High pressure die-cast ADC12 aluminium
Housing Color	Metallic Black (RAL9017), other colors optional
Sealing Gaskets	Silicone foam
Thermal Dissipation	Passive convection through finless ADC12 AL body
Brackets	U Shape Bracket with 360° rotation
Mounting Height	5 - 20 meters recommended
Maintenance	Modular concept for easy component replacement
IP Rating	IP66
IK Rating	IK10
Protective Class	Class I
Cable Entry	H05RN-F 31.5mm² \| 51.5mm² (Max 4mm²)
Surge Protection	CM: 10kV, DM: 6kV
Smart Functions	0-10V, PWM, Time control, DMX, Zigbee, DALI

Electrical System

Main Voltage	100-277VAC/50-60Hz \| 277-480VAC/50-60Hz
Power Factor	≥0.95
THD	＜10%
Output Type	Non-SELV (non-isolated)
Flicker Factor	<1%
Driver Efficacy	>90%
Energy Class	A++ IPEA>1.15

Photometry System

LEDs	SMD3030 / SMD5050 Optional
CCT	3000K \| 4000K \| 5000K \| 5700K \| 6500K
CRI	>70Ra standard (>80Ra available)
Photobiological Safety	RG0 (exempt of risk)
ULOR/DLOR	0% / 100%
Luminous Flux CIE nº3	>95%
SDCM	＜6
Beam Angle	Multiple symmetric, asymmetric, polarized options
Lifetime	100,000 hours (L80B10)
Luminous Efficacy	130LPW (PROLine) \| 160LPW (PRIMELine)

Operation & Certification

Operation Conditions

Operation Temperature	-40°C to +50°C (-40°F to 122°F)
Operation Humidity	10-90% RH, not condensed
Storage Temperature	-40°C to +80°C (-40°F to 176°F)
LED Lifetime	≥100,000 hours (L80B10)
Driver MTBF	500,000 hours
Vibration Resistance	10-500Hz, 5G 12min/cycle
Acoustic Noise	＜25dB (30cm distance)
Warranty	5 Years (extensible to 7 years)

Certifications

ENEC, CE, RoHS, D-mark, KEMA-KEUR, SAA, C-Tick, RCM, CB, ETL/CETL, DLC Premium and compliance with international safety and EMC directives.

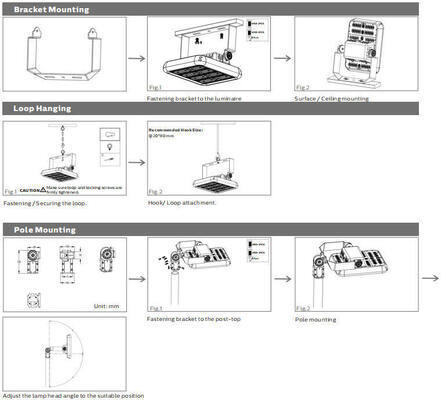

Installation & Wiring

Always turn off power before installation. Connect AC wires and for dimmable versions, follow the 0-10V dimming wiring diagram provided.

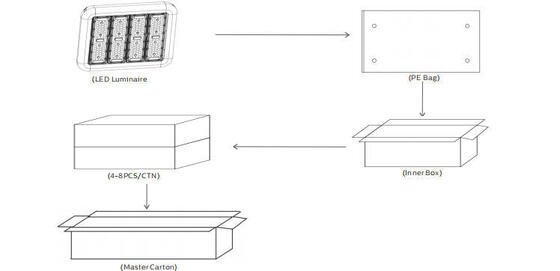

Packaging Specifications

Power	Inner Box	Outer Carton	QTY/CTN	Unit N.W.	G.W./Carton
50W	260x150x425mm	635x540x445mm	8PCS	3.6Kg	32.8Kg
100W	300x150x425mm	635x620x445mm	8PCS	5.8Kg	51.6Kg
150W	405x150x425mm	635x420x445mm	4PCS	7.4Kg	33.5Kg
200W	415x150x410mm	635x430x430mm	4PCS	9.3Kg	42.7Kg
250W	415x150x485mm	415x150x485mm	1PCS	13.9Kg	16.3Kg
300W	415x150x560mm	415x150x560mm	1PCS	16.3Kg	19.5Kg
400W	415x150x560mm	415x150x560mm	1PCS	19.5Kg	22.8Kg
500W	415x150x635mm	415x150x635mm	1PCS	22.8Kg	25.5Kg

Installation Safety & Warranty

Important Safety Instructions: Always turn off power before installation. Installation should be performed by qualified electricians following National Electrical Code and local codes. Inspect for damage upon receipt - do not use damaged units.

DUALRAYS LED Sport Lights are designed for indoor or semi-outdoor neutral environments. Applications in severe conditions (extreme temperatures, high humidity, salinity, ammonia) require manufacturer confirmation for warranty coverage.

Company Advantages

Professional team with 15+ years experience and own factory
10+ engineers and robust QC management system
European warehouse in Netherlands for better service
DIALux simulation services available
All products comply with CE, RoHS standards
TUV, ENEC, VDE, SAA, C-Tick, LM79, LM80 certifications

Frequently Asked Questions

Q1: What is the warranty for the SPL4 LED Sport Light?

5 years warranty, extensible to 7 years. We cover shipping costs and replacement for any quality problems on our side.

Q2: What payment methods do you accept?

Western Union, Paypal, T/T, L/C. Standard for bulk orders: 30% T/T in advance, 70% balance before shipment.

Q3: What is CRI?

CRI (Color Rendering Index) measures how accurately colors appear under the light. Higher CRI provides better color representation.

Q4: Can I buy only the housing separately?

We only supply complete luminaire fixtures, but SKD/CKD (Semi/Completely Knocked Down) options are available.

Q5: What are the shipping options?

Express for small orders, sea/train for bulk orders to Europe, air freight for urgent requirements.

Q6: What dimming functions are available?

DALI, PIR, 1-10V dimming available, with built-in daylight sensor option for intelligent control.

Q7: What are the main applications?

Cycle lanes, urban areas, industrial zones, car parks, avenues, interurban roads, roundabouts, motorways, and highways.

For more information, visit our official website www.DUALRAYS.com or email us at info@DUALRAYS.com

Thank you for choosing DUALRAYS LED luminaires. We are committed to quality and professional after-sales service.
