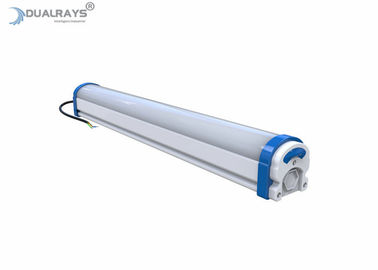

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval

  • LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval
  • LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval
  • LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval
  • LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-TP040-BG41
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Packaging Details: Netural Package,color box package,4PCS/CTN,L1270*W360xH200mm
Delivery Time: 5-15 business days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Material: PC Input Voltage: AC200-240V
IK Grade: IK10 IP Class: 66
CRI: >83 Guarantee: 5 Years
Highlight:

dust proof light fixture

,

vapor proof led light

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval Adopted by

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 0

> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,Lighting fixture efficient - up to 160 lm/w;
> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;
> L70> 65.000h;
> 5 years warranty;
Options:
> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.
> Customized supported for special projects.
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 1
* Replacement for fluorescent NCF
* Outdoor & Indoor Locations


LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 2

Model No. DR-TP040-BG41
Rated Power/W 40
Luminous Flux/LM 4800
Systen Efficiency/LPW 120
IP/Rating IP66
IK Grade IK10
Emergency Function Available
Lumen Maintenance 36000 hrs >90%
Certificate CE ROHS

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 3

Character/Length
2ft
4ft
5ft
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 4
A
600mm
1200mm
1500mm
B
74mm
74mm
74mm
C
74m
74mm
74mm


LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 5

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 6

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 7

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 8
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 9

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 10
(I) Emergency Function
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 11

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 12
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 13



LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 14


LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 15
DALI Device
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 16

DALI Intelligent Control Diagram
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 17 LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 18

DALI Intelligent Control Operator Interface
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 19
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 20
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 21

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 22
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 23

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 24



LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 25

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 26

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 27

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 28

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 29

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 30

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 31

LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 32



LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 33

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 34 LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 35

(DIALUX Simulation)
　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 36
(Partnership)
LED Tri Proof Light 4ft 40W Full PC Housing 5000K CE Approval 37
