Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-TP020-BG21
Payment & Shipping Terms:
Minimum Order Quantity: 8pcs
Packaging Details: Netural Package,color box package,8PCS/CTN,L1270*W360xH200mm
Delivery Time: 5-15 business days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Cover: PC Equivalent: 2*18W
CRI: >83 IP Rating: IP66
CCT: 5000K Guarantee: 5 Years
High Light:

dust proof light fixture

,

vapor proof led light

20W 2FT Waterproof Led Tri-proof light Adopted by

20W 2FT Waterproof Led Tri proof light Adopted by 0

> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;
> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;
> Single or Double wiring,backside cable output avaialable;
> IP66 and IK10 for all industrial areas of application;
> L80> 50.000h;
> 5 years warranty;
Options:
> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.

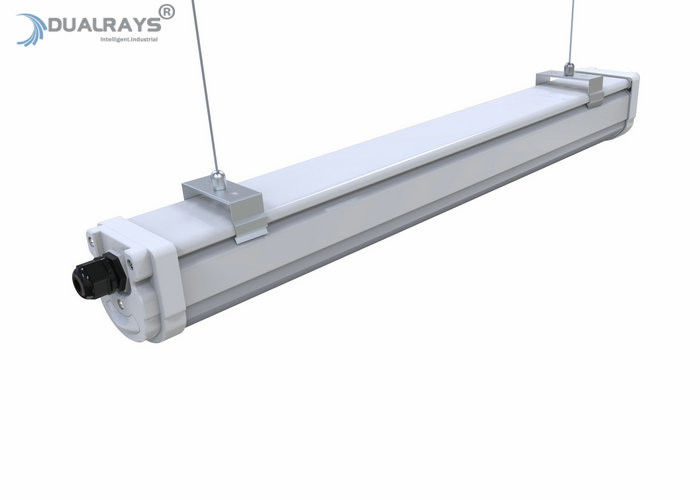

> Installation: Suspension/Ceiling mounted;.
> Customized supported for special projects.
600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty
* Replacement for fluorescent NCF
* Garage and car parks
* Outdoor & Indoor Locations
600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty
Model No. DR-TP020-BG21
Rated Power/W 40
Luminous Flux/LM 4800
Systen Efficiency/LPW 120
IP/Rating IP66
THD <10%
SDCM <5
Lumen Maintenance @ 6000 hrs >95%
Switching Cycle before Failure 100,000
Installation Option Bracket/Suspending
Storage Temperature -40 ~ +85℃
Certificate CE ROHS

600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty

Character/Length
2ft
4ft
5ft
20W 2FT Waterproof Led Tri proof light Adopted by 4
A
600mm
1200mm
1500mm
B
74mm
74mm
74mm
C
74m
74mm
74mm


600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty

600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty

600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty

20W 2FT Waterproof Led Tri proof light Adopted by 8
20W 2FT Waterproof Led Tri proof light Adopted by 9

20W 2FT Waterproof Led Tri proof light Adopted by 10
(I) Emergency Function
20W 2FT Waterproof Led Tri proof light Adopted by 11

20W 2FT Waterproof Led Tri proof light Adopted by 12
20W 2FT Waterproof Led Tri proof light Adopted by 13



600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty


600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty
DALI Device
600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty

DALI Intelligent Control Diagram
600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty 600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty


DALI Intelligent Control Operator Interface
600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty
600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty
20W 2FT Waterproof Led Tri proof light Adopted by 21

20W 2FT Waterproof Led Tri proof light Adopted by 22

20W 2FT Waterproof Led Tri proof light Adopted by 23

20W 2FT Waterproof Led Tri proof light Adopted by 24
