Name: LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing CE ROHS Approval
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: S4 Series
Availability: InStock

Home Products S4 LED Street Light

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing CE ROHS Approval

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Dualrays
Certification:	CE,RoHS,TUV/GS,LM79,LM80
Model Number:	S4 Series

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiated
Packaging Details:	Netural Package,color box package
Delivery Time:	5-15 business days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30000PCS/Month

Contact Now

Detailed Product Description

Power Factor:	0.95	Junction Temperature:	<80℃
Warranty:	5 Years	LED's Brand:	LUXEON
Material:	Aluminum+PC+Toughened Glass	IP Rating:	IP66
Highlight:	warm white led street lights , decorative street light

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing CE ROHS Approval

Detailed Product Description

Material:	Aluminum+PC+Toughened Glass	LEDs Light Source:	SMD5050
UGR:	<25	Power:	30W/60W/90W/120W/150W/180W
CRI:	>80Ra	SDCM:	<6
Operation Temp/℃:	-40°C to + 50°C(-40°F to 122°F)	CCT:	3000K/4000K/5000K/5700K/6500K
IP Rating:	IP66	Certificate:	CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available

Aluminium Alloy Outdoor LED Street Lights 30W IP66 150LPW Efficiency AC100-277V 50-60Hz

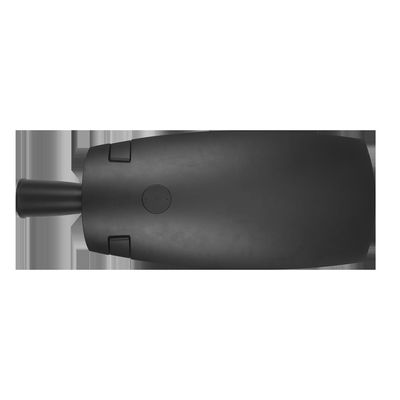

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing CE ROHS Approval 1

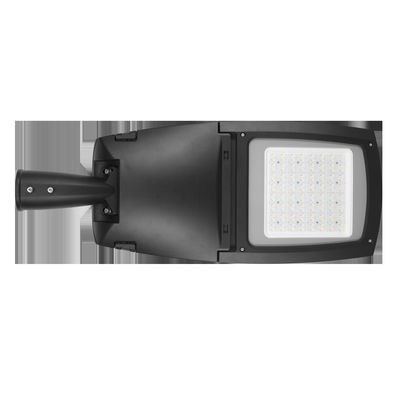

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing CE ROHS Approval 2

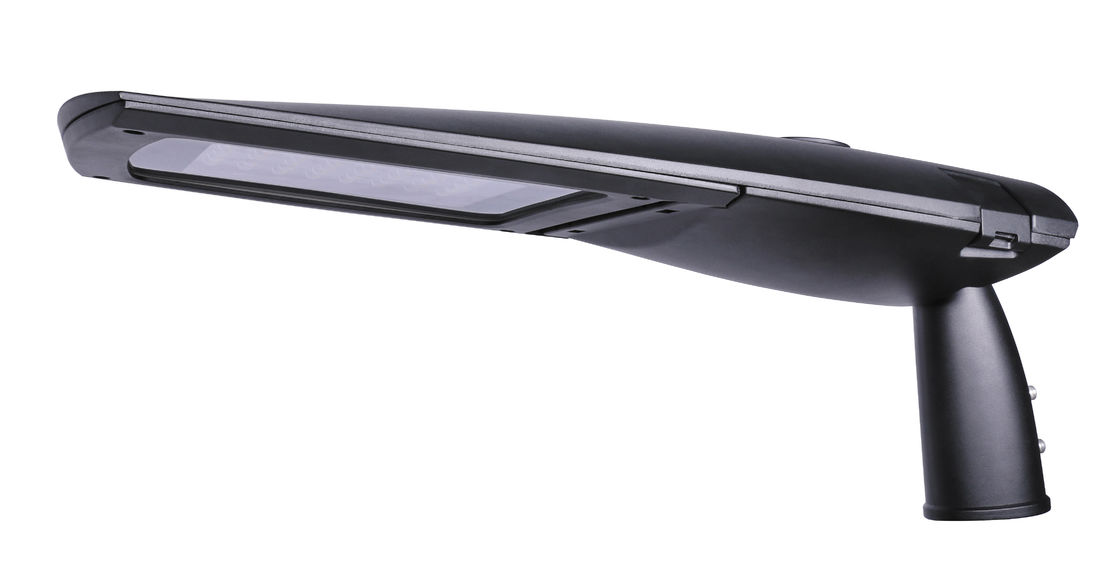

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing CE ROHS Approval 3

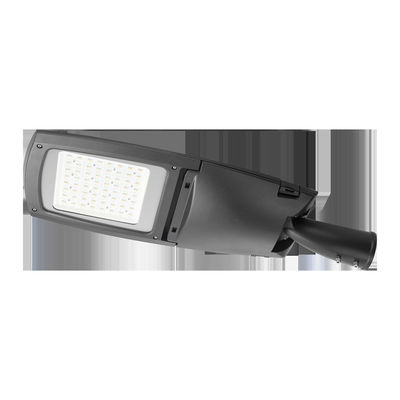

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing CE ROHS Approval 4

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> Driver and housing separated by spacers;

> Zigbee module (Single-lamp Controller and centralized manager) with software for option;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> Easy to disassemble and assemble, don't need any additional tools;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

* Avenues.

* Walkways.

* Roadway.

* Public Square.

* Parking lot.

* School.
* Sport and Stadium.

30W/60W Version
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

90W,120W/150W/180W Version

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

Packaging Information

Shipment

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q1: What is the warranty for the LED street light?

RE: For the LED street light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?

RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:

Warm white = 3000±200K

Natural white = 4000±200K

Pure white = 5000±200K

Cool white = 5700±200K

Q3: Is there a MOQ?

RE: 2PCS

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q7: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q8: What‘re the chips and drivers used?

RE: High brightness NICHIA LEDs light source,Meanwell drivers for standard configuration.

Q9: What Optics available?

RE: LED Street Light: Type I, Type II, Type III, Type IV, Type V for option.

Q10: What is the CRI?

RE: Ra>70, Ra>80 optional.

Q11: IP Rating?

RE: IP66.

Q12: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q13: Finish color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q14: Dimming functions?

RE: 1-10V / PWM / Resistance / Timer/ DALI dimmable driver available.

Q15: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q16:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED will serve you with heart and soul!
